Micro LED Front / Rear Access Video Wall

Using Micro LED technology, the Black Diamond Series is a revolution in packaging technology and process, breaking through the bottleneck of low production yield and high processing costs, and can be used in displays with a pitch above 1.0mm.

Key Features

> HDR Ready > 16:9 Aspect Ratio > Quick Installation

> Generic Cables > Status Diagnostic > 6-axis Alignment

> Front/Rear Access > Floating Connector > Easy Maintenance

Message

Product Highlights

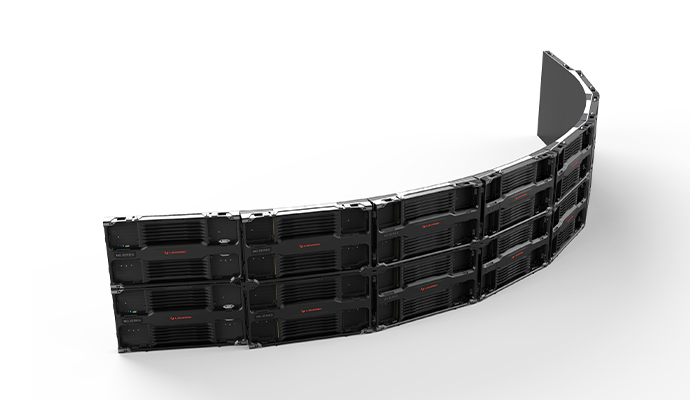

Customizable Concave Splicing

> Angle between modules 0~4.5°;
>Max angle between cabinets 18

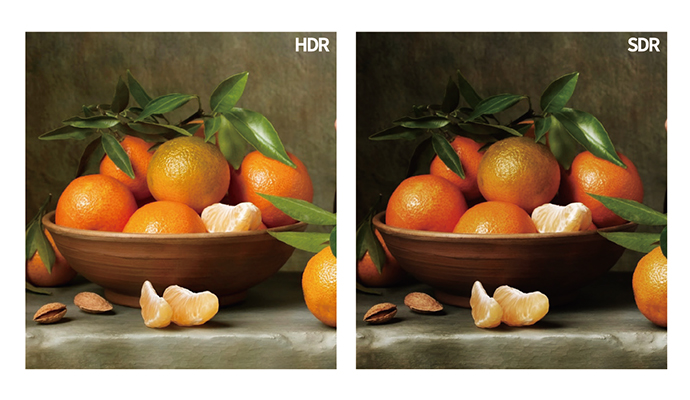

High Dynamic Range(Optional)

Support HDR function to meet more display requirements.

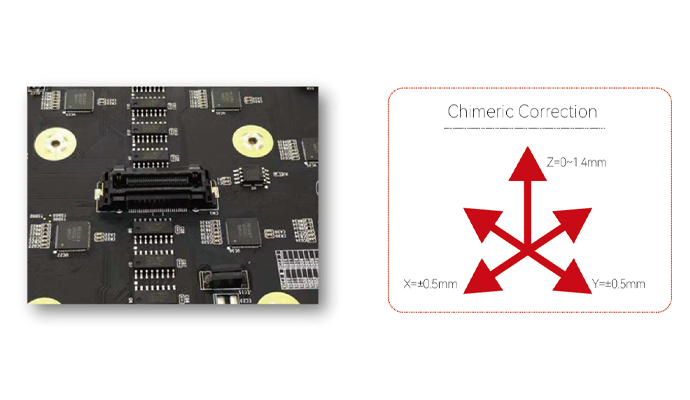

6-axis Alignment

> Module can be easily adjusted in Z-direction, and flatness can be optimized again.
> A uniform tool can be used for X/Y/Z 6-axis adjustment between cabinets.

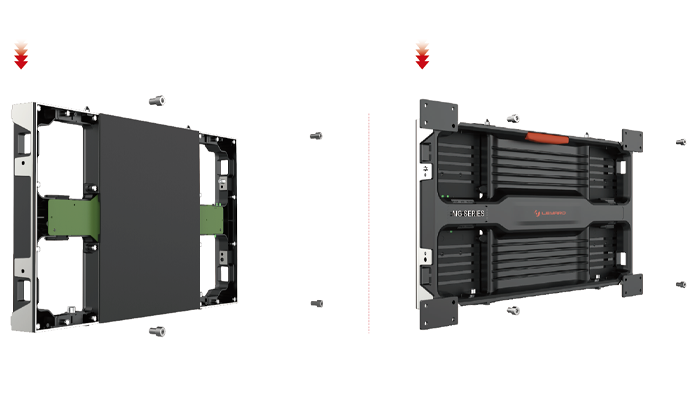

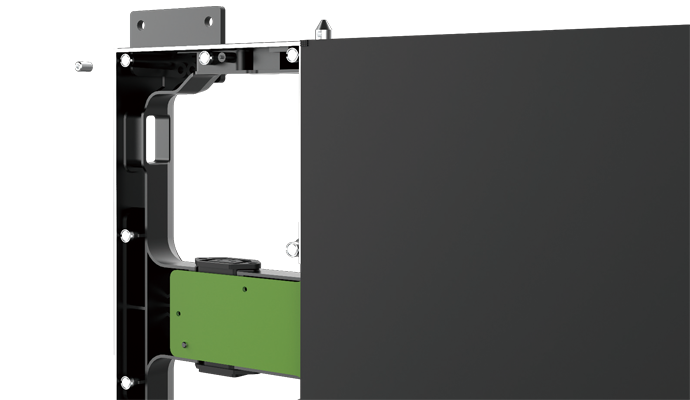

Front / Rear Installation

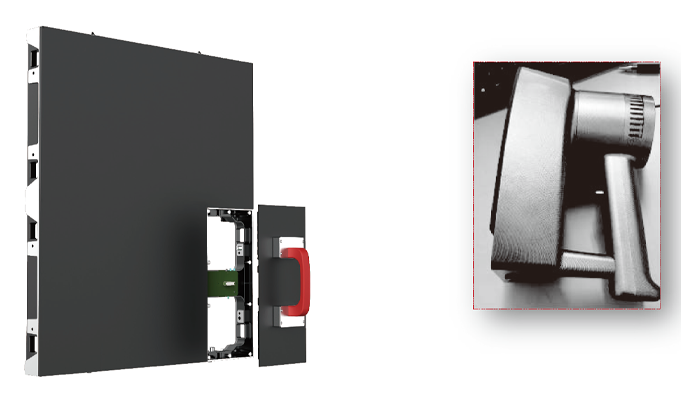

> Completely front disassembly or rear disassembly;
> Only need to remove two LED modules for easy maintenance.
> Easier rear installation.

Aluminum Alloy Cabinet

> Aluminum alloy cabinet with high rigidity and high splicing accuracy;
> Magnetic and vacuum tools are optional for maintenance.

Generic Cables

> Concise appearance, off the shelf power and signal, ensuring the stable and reliable quality at a very low cost;
> Cables between cabinets are connected inside, without adding up extra space.

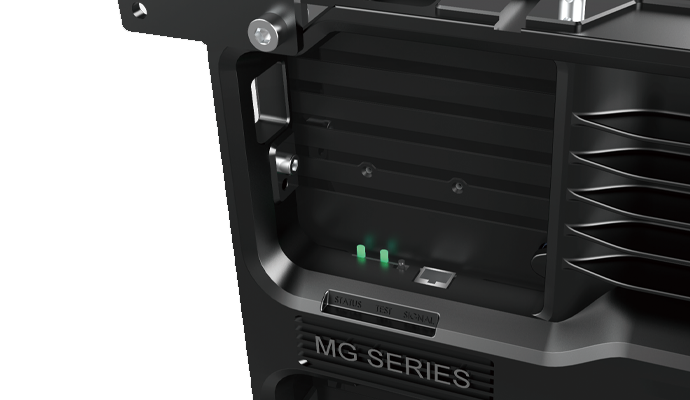

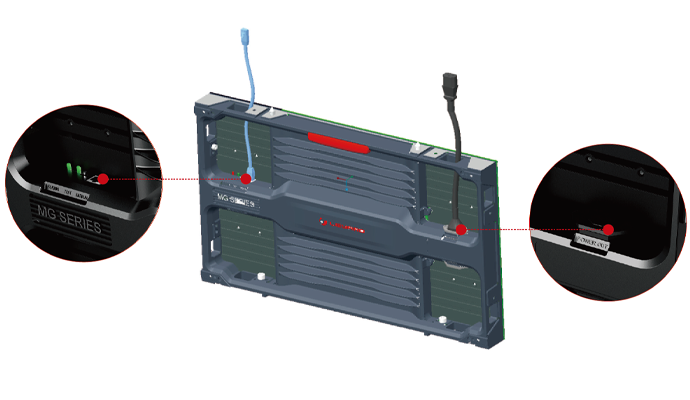

Status Diagnostic

Status indicators and button are in the main frame of the cabinet structure, and can be accessed from both front and back.

Floating Connector

> Allowed position tolerance;
> Resistant to torsion and shock;
> Reduces stress on solder feet during fitting.

Solution

MG series is the new generation Micro LED solution with front/ rear access functionality and identical form factor of Leyard TWS series. By utilizing Leyard’s many years experience of fine pitch and adopting the minimalism concept, MG series achieves the high quality visual perfor-mance at a relatively low cost. The appearance of the MG series is carefully designed. The key components are well integrated into the compact shape while the heat dissipation is guaranteed. A function diagnostic button and status indicators could also be found on the panel. MG Series realize signal loop feature in default, power & signal redundency optional.

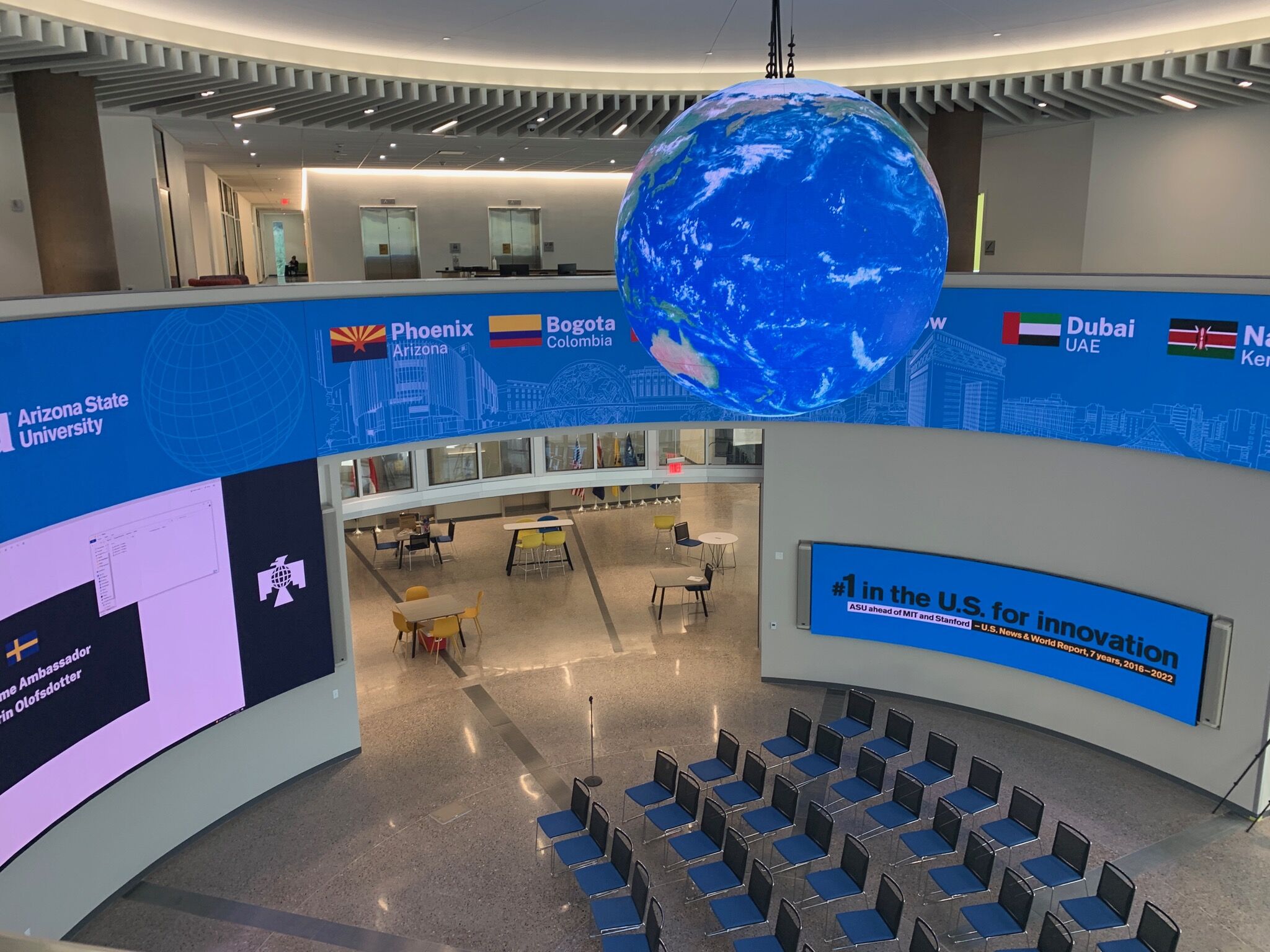

Application

Conferences
Celebrations
Reception

Specifications

MG009-Black Diamond

MG010-Black Diamond

MG012-Black Diamond

MG015-Black Diamond

MG018-Black Diamond

Item
LED Configuration
Pixel Pitch (mm)
Module Resolution (WxH)
Module Dimension (WxH, mm)
Cabinet Dimension (WxHxD, mm)
Cabinet Area (㎡)
Weight (kg/cabinet; kg/㎡)
Pixel Density (Point/㎡)
Flatness(mm)
Peak Brightness (nits) (after calibration)
Brightness (nits) (white balance 100%)
Color Temperature（K）
Viewing Angle (H/ V) °
Installation Method
Refresh Rate @60Hz
Operating/Storage Temp(℃)
Operating Humidity（RH）

                                                                                MG009-Black Diamond

                                                                                Leyard Micro LED

                                                                                0.9375

                                                                                160x360

                                                                                150x337.5

                                                                                600x337.5x53

                                                                                0.2025

                                                                                6; 30

                                                                                1137778

                                                                                ≤0.1

                                                                                2000

                                                                                1200~1500

                                                                                3000~10000 adjustable

                                                                                170/ 170

                                                                                Front/ Rear

                                                                                ≥3840

                                                                                -20—40; -30—60

                                                                                10~90%; 10~80%

                                                                                MG010-Black Diamond

                                                                                Leyard Micro LED

                                                                                1.05

                                                                                142x320

                                                                                150x337.5

                                                                                600x337.5x53

                                                                                0.2025

                                                                                6; 30

                                                                                897580

                                                                                ≤0.1

                                                                                1600

                                                                                1200~1500

                                                                                3000~10000 adjustable

                                                                                170/ 170

                                                                                Front/ Rear

                                                                                ≥3840

                                                                                -20—40; -30—60

                                                                                10~90%; 10~80%

                                                                                MG012-Black Diamond

                                                                                Leyard Micro LED

                                                                                1.25

                                                                                120x270

                                                                                150x337.5

                                                                                600x337.5x53

                                                                                0.2025

                                                                                6; 30

                                                                                640000

                                                                                ≤0.1

                                                                                1600

                                                                                1200~1500

                                                                                3000~10000 adjustable

                                                                                170/ 170

                                                                                Front/ Rear

                                                                                ≥3840

                                                                                -20—40; -30—60

                                                                                10~90%; 10~80%

                                                                                MG015-Black Diamond

                                                                                Leyard Micro LED

                                                                                1.5625

                                                                                96x216

                                                                                150x337.5

                                                                                600x337.5x53

                                                                                0.2025

                                                                                6; 30

                                                                                409600

                                                                                ≤0.1

                                                                                1600

                                                                                1200~1500

                                                                                3000~10000 adjustable

                                                                                170/ 170

                                                                                Front/ Rear

                                                                                ≥3840

                                                                                -20—40; -30—60

                                                                                10~90%; 10~80%

                                                                                MG018-Black Diamond

                                                                                Leyard Micro LED

                                                                                1.875

                                                                                80x180

                                                                                150x337.5

                                                                                600x337.5x53

                                                                                0.2025

                                                                                6; 30

                                                                                284444

                                                                                ≤0.1

                                                                                1600

                                                                                1200~1500

                                                                                3000~10000 adjustable

                                                                                170/ 170

                                                                                Front/ Rear

                                                                                ≥3840

                                                                                -20—40; -30—60

                                                                                10~90%; 10~80%

Remark: Above data is subject to change without prior notice
