MSA & MSA Plus Series

Ultra-Thin Fine Pitch LED Display Module

Superior flatness | Efficient heat dissipation | Automatic read back calibration data

PRO FEATURES

> Enhanced contrast, Optimized color consistency

> Fine screen luminous color gamut and wavelength range

> Die-casting aluminum structural frame

> Magnetic installation, no cabinet required

> Snap-on back cover

> Low brightness, high gray scale

Message

Product Highlights

Ultra-Realistic LED Visuals

Use high quality LED Lamps and PWM drive IC, ultra-high dynamic contrast and high refresh rate up to 3840Hz, image is perfect without flicker and scan lines.

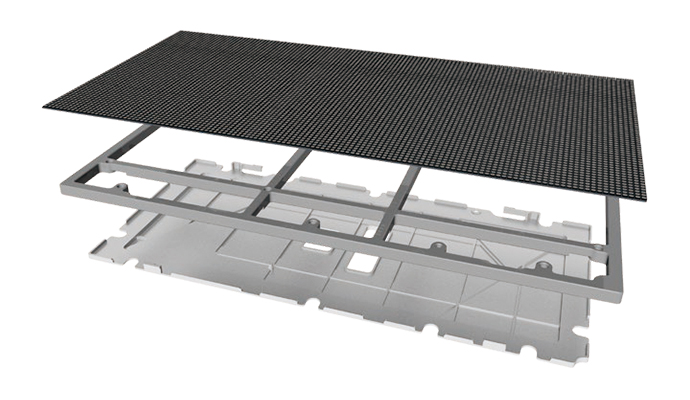

Die-casting aluminum structural frame

> Ultra thin but strong and non-deformable;
> Oxidation & Corrosion Resistance;
> Magnetic installation, no cabinet required.

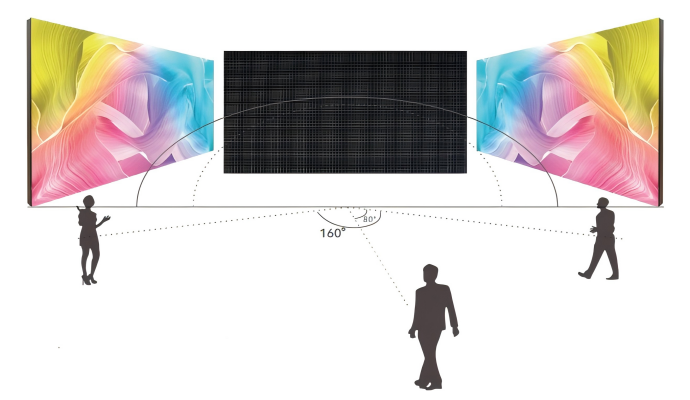

Wide Viewing Angle

160° ultra wide viewing angle, giving audience
the best visual experience from any position
and any distance.

Solution

Leyard MSA series indoor fine-pitch LED modules offer a cutting-edge solution for environments demanding high-quality visual displays. Utilizing high-quality LED lamps and PWM drive ICs, these modules deliver ultra-high dynamic contrast and a refresh rate of up to 3840Hz, ensuring a lifelike viewing experience with images that are flawlessly flicker-free and devoid of scan lines. The series boasts exceptional flatness, achieved through a special bonding technique between PCBs that eliminates the need for screws, enhancing both durability and aesthetics. Available in two module sizes, the MSA series provides versatile options to suit various installation needs

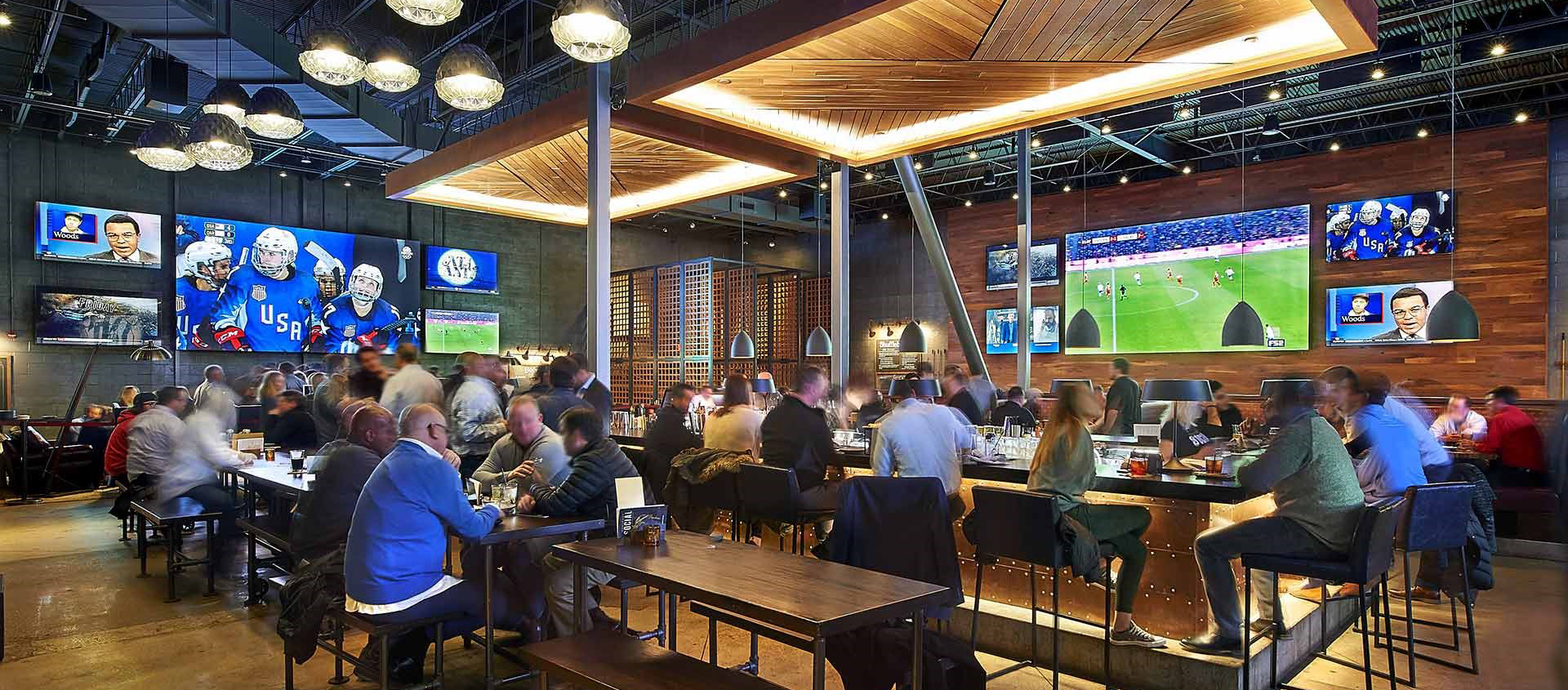

Application

Design Centre

Control Centre

Broadcast

Conference Room

Exhibition Centre

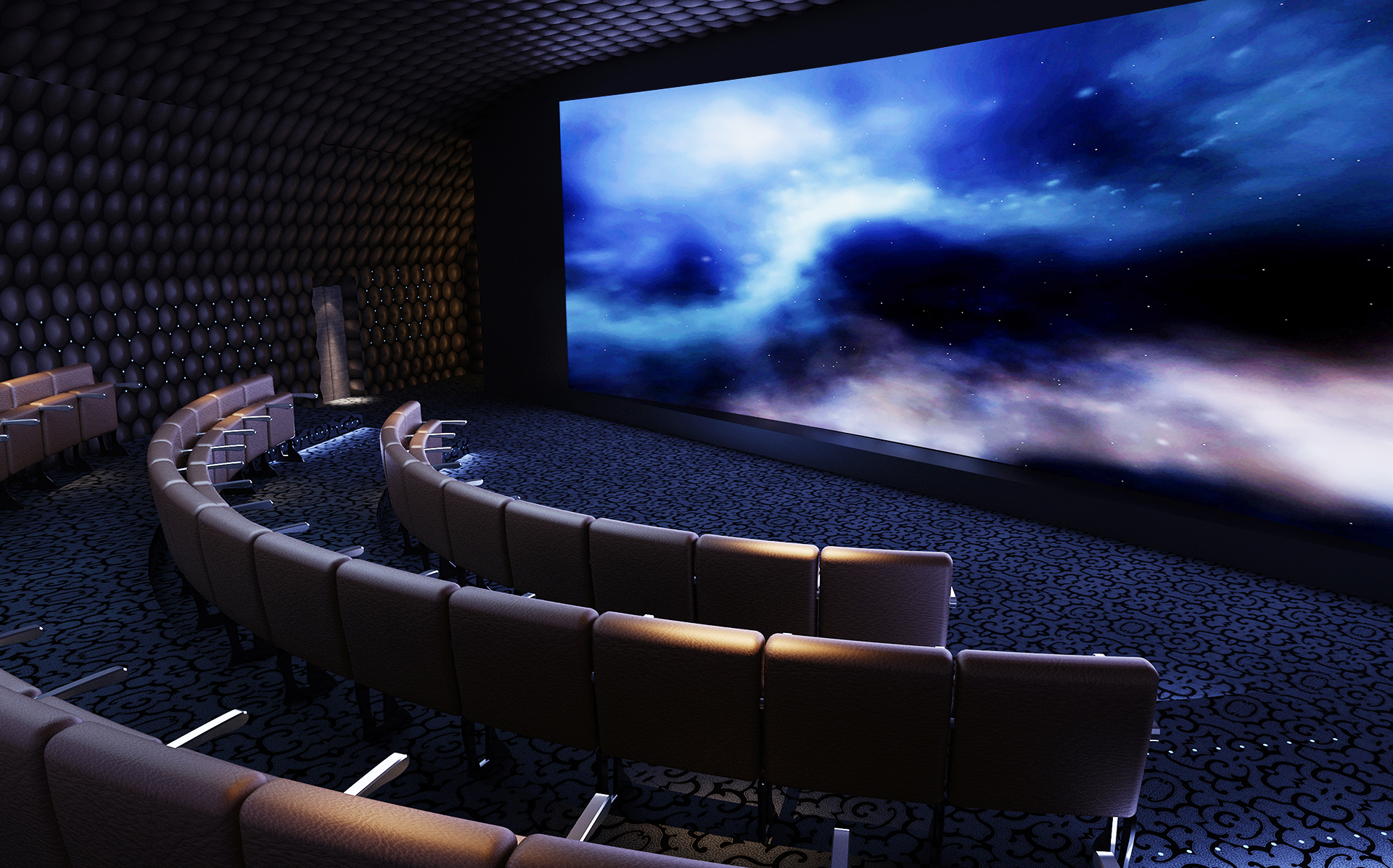

Home Cinema

Specifications

MSA1

MSA1.2

MSA1.5

MSA1.8

MSA2

MSA2.5

MSA1 Plus

MSA1.2 Plus

MSA1.5 Plus

MSA1.6 Plus

MSA1.8 Plus

MSA2 Plus

MSA2.5 Plus

Item
Pitch (mm)
Module Resolution (WxH)
Module Size (mm) (WxH)
Module Weight (Kg)
White Balance Brightness (nits)
Color Temperature (K)
Contrast Ratio
Refresh Rate (Hz)
Operation Temperature (℃)
Storage Temperature (℃)
Operation Humidity (RH)
Storage Humidity (RH)
Peak Power Consumption (W/㎡)
Avg Power Consumption (W/㎡）

                                                                                MSA1

                                                                                1

                                                                                320x160

                                                                                320x160

                                                                                0.57±0.05

                                                                                ≥550

                                                                                3000~38000 Adjustable

                                                                                5000:1

                                                                                ≥3840

                                                                                -10~40

                                                                                -20~60

                                                                                10~80% Non-condensing

                                                                                10~85% Non-condensing

                                                                                ≤440

                                                                                ≤148

                                                                                MSA1.2

                                                                                1.25

                                                                                256x128

                                                                                320x160

                                                                                0.57±0.05

                                                                                ≥550

                                                                                3000~38000 Adjustable

                                                                                5000:1

                                                                                ≥3840

                                                                                -10~40

                                                                                -20~60

                                                                                10~80% Non-condensing

                                                                                10~85% Non-condensing

                                                                                ≤440

                                                                                ≤148

                                                                                MSA1.5

                                                                                1.538

                                                                                208x104

                                                                                320x160

                                                                                0.57±0.05

                                                                                ≥500

                                                                                3000~38000 Adjustable

                                                                                5000:1

                                                                                ≥3840

                                                                                -10~40

                                                                                -20~60

                                                                                10~80% Non-condensing

                                                                                10~85% Non-condensing

                                                                                ≤352

                                                                                ≤118

                                                                                MSA1.8

                                                                                1.86

                                                                                172×86

                                                                                320x160

                                                                                0.57±0.05

                                                                                ≥500

                                                                                3000~38000 Adjustable

                                                                                5000:1

                                                                                ≥3840

                                                                                -10~40

                                                                                -20~60

                                                                                10~80% Non-condensing

                                                                                10~85% Non-condensing

                                                                                ≤352

                                                                                ≤118

                                                                                MSA2

                                                                                2

                                                                                160x80

                                                                                320x160

                                                                                0.57±0.05

                                                                                ≥500

                                                                                3000~38000 Adjustable

                                                                                5000:1

                                                                                ≥3840

                                                                                -10~40

                                                                                -20~60

                                                                                10~80% Non-condensing

                                                                                10~85% Non-condensing

                                                                                ≤352

                                                                                ≤118

                                                                                MSA2.5

                                                                                2.5

                                                                                128x64

                                                                                320x160

                                                                                0.57±0.05

                                                                                430 -450（Standard）

                                                                                3000~38000 Adjustable

                                                                                5000:1

                                                                                ≥3840

                                                                                -10~40

                                                                                -20~60

                                                                                10~80% Non-condensing

                                                                                10~85% Non-condensing

                                                                                ≤230

                                                                                ≤77

                                                                                MSA1 Plus

                                                                                1

                                                                                320x180

                                                                                320x180

                                                                                0.65±0.05

                                                                                ≥600

                                                                                3000~38000 Adjustable

                                                                                5000:1

                                                                                ≥3840

                                                                                -10~40

                                                                                -20~60

                                                                                10~80% Non-condensing

                                                                                10~85% Non-condensing

                                                                                ≤438

                                                                                ≤146

                                                                                MSA1.2 Plus

                                                                                1.25

                                                                                256x144

                                                                                320x180

                                                                                0.65±0.05

                                                                                ≥500

                                                                                3000~38000 Adjustable

                                                                                5000:1

                                                                                ≥3840

                                                                                -10~40

                                                                                -20~60

                                                                                10~80% Non-condensing

                                                                                10~85% Non-condensing

                                                                                ≤438

                                                                                ≤146

                                                                                MSA1.5 Plus

                                                                                1.538/1.551

                                                                                208x116

                                                                                320x180

                                                                                0.65±0.05

                                                                                ≥500

                                                                                3000~38000 Adjustable

                                                                                5000:1

                                                                                ≥3840

                                                                                -10~40

                                                                                -20~60

                                                                                10~80% Non-condensing

                                                                                10~85% Non-condensing

                                                                                ≤352

                                                                                ≤118

                                                                                MSA1.6 Plus

                                                                                1.667

                                                                                192x108

                                                                                320x180

                                                                                0.65±0.05

                                                                                ≥450

                                                                                3000~38000 Adjustable

                                                                                5000:1

                                                                                ≥3840

                                                                                -10~40

                                                                                -20~60

                                                                                10~80% Non-condensing

                                                                                10~85% Non-condensing

                                                                                ≤352

                                                                                ≤118

                                                                                MSA1.8 Plus

                                                                                1.86/1.875

                                                                                172x96

                                                                                320x180

                                                                                0.65±0.05

                                                                                ≥450

                                                                                3000~38000 Adjustable

                                                                                5000:1

                                                                                ≥3840

                                                                                -10~40

                                                                                -20~60

                                                                                10~80% Non-condensing

                                                                                10~85% Non-condensing

                                                                                ≤352

                                                                                ≤118

                                                                                MSA2 Plus

                                                                                2

                                                                                160x90

                                                                                320x180

                                                                                0.65±0.05

                                                                                ≥450

                                                                                3000~38000 Adjustable

                                                                                5000:1

                                                                                ≥3840

                                                                                -10~40

                                                                                -20~60

                                                                                10~80% Non-condensing

                                                                                10~85% Non-condensing

                                                                                ≤352

                                                                                ≤118

                                                                                MSA2.5 Plus

                                                                                2.5

                                                                                128x72

                                                                                320x180

                                                                                0.65±0.05

                                                                                500-550

                                                                                3000~38000 Adjustable

                                                                                5000:1

                                                                                ≥3840

                                                                                -10~40

                                                                                -20~60

                                                                                10~80% Non-condensing

                                                                                10~85% Non-condensing

                                                                                ≤352

                                                                                ≤118

Remark: Above data is subject to change without prior notice
