Outdoor LED Display Module

The LVS series outdoor full-color module is an excellent high-performance display product compatible with mainstream control systems. Its manufacturing process and material management strictly follow the highest standards to ensure product reliability and durability.

PRO FEATURES

- 160° Wide Viewing Angle

- Convenient HUB Control

- Ultra-High Refresh Rate; Ultra-High Brightness; Ultra-High Grayscale

- Enhanced Mask Design

Message

Product Highlights

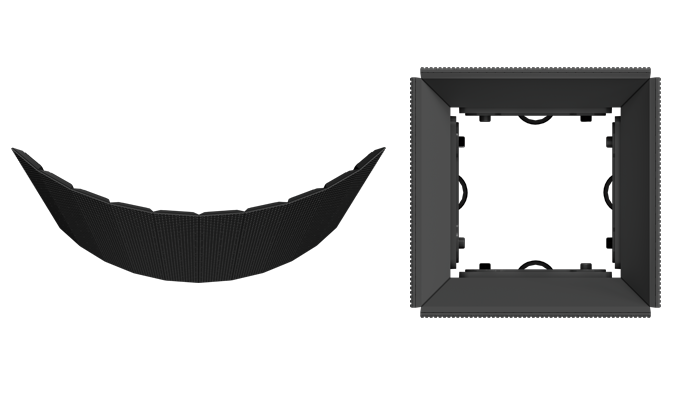

Seamless Splicing with Curve & Right Angle

< 80x320mm size
< Can be used for right angle splicing, concave and convex splicing

7680Hz Super High Refresh Rate

< Smooth, ﬂicker-free visuals for enhanced viewing experience
< Ultra-smooth motion clarity, ideal for displaying dynamic content

Customized requirements

The CV-18L can be paired with the LVS + LVS-R creative modules to meet the needs of the vast majority of outdoor scenarios in the market.

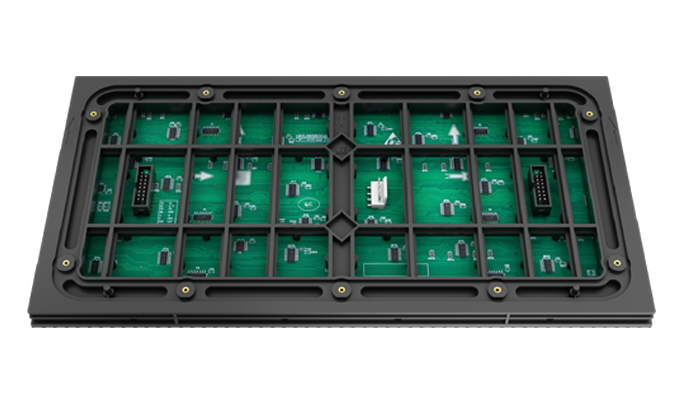

Convenient HUB Control

< Universal HUB75E Interface
< Matching Mainstream Control Systems

Solution

The LVS series outdoor full-color module is an excellent high-performance display product compatible with mainstream control systems in the market. Its manufacturing process,and material management strictly follow the highest standards to ensure the product reliability and durability. LVS series is available in two sizes: 320x160mm and 80x320mm. It has flexible design, which allows for easy installation and maintenance. It is widely used in various outdoor scenarios such as commercial centers, sports venues, and city squares.

Application

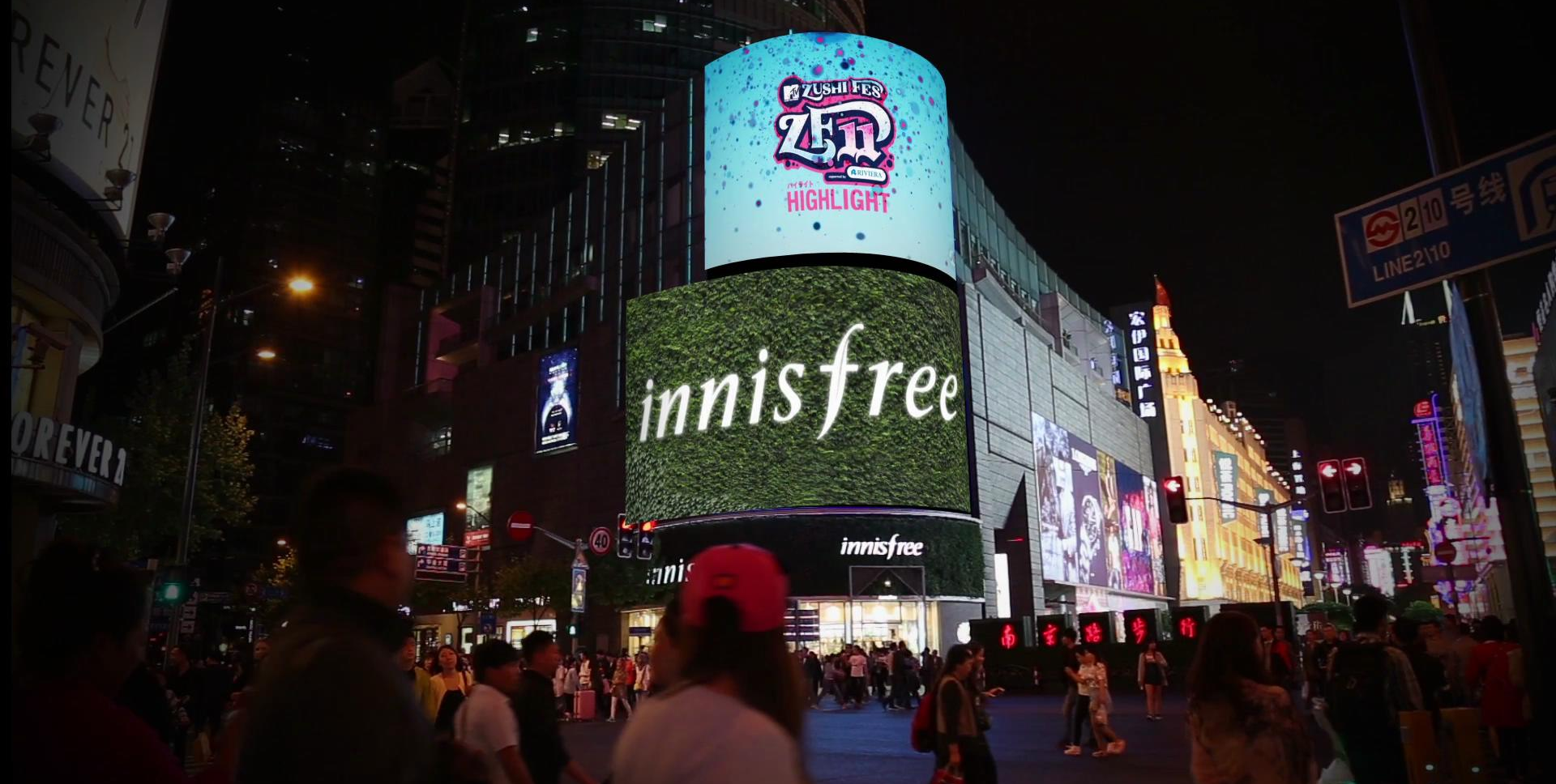

Commercial Centers

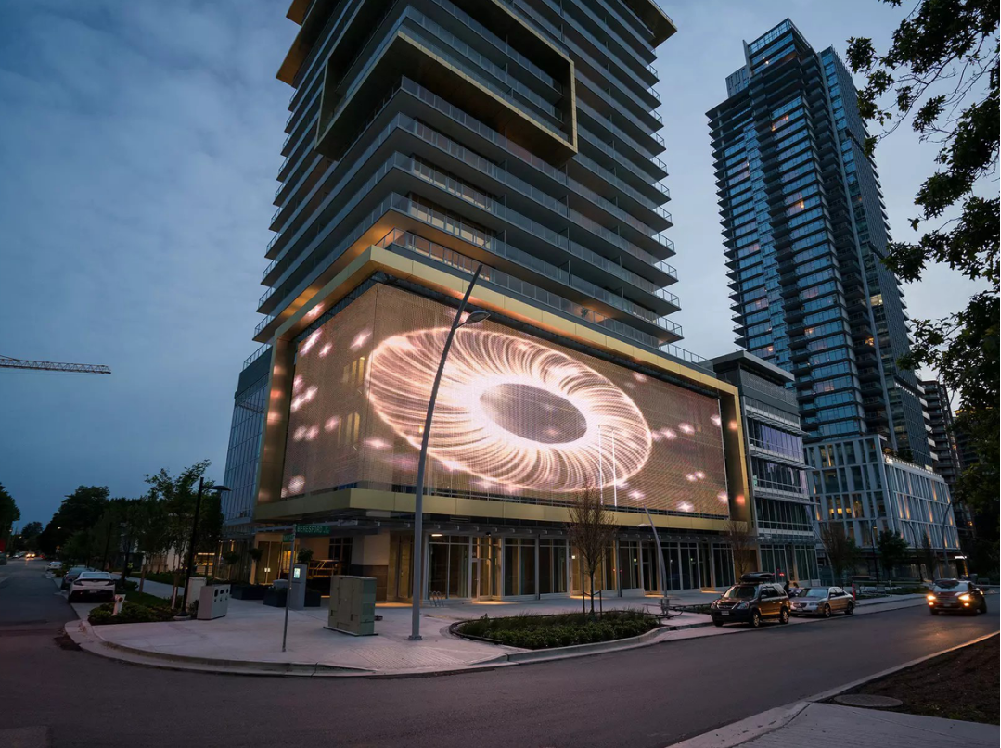

City Landmarks

Sports Events and Activities

Specifications

LVS0250

LVS0307

LVS0400

LVS0500

LVS0592

LVS0800

LVS1000

Item
Pixel Pitch (mm)
Module Size (mm) (W * H)
Module Resolution (W * H)
Color Temperature (K)
Horizontal\Vertical Viewing Angle (°)
Contrast Ratio
Peak Power Consumption (W/㎡)
Average Power Consumption (W/㎡)
Refresh Rate (Hz)
Working Temperature Range (℃)
Working Humidity Range (RH)

                                                                                LVS0250

                                                                                2.5

                                                                                320*160

                                                                                128*64

                                                                                3000~38000 adjustable

                                                                                160\140

                                                                                5000:1

                                                                                ≤660

                                                                                ≤220

                                                                                ≥7680

                                                                                -20 ~ 40

                                                                                10~80% no condensation

                                                                                LVS0307

                                                                                3.076

                                                                                320*160

                                                                                104*52

                                                                                3000~38000 adjustable

                                                                                160\140

                                                                                5000:1

                                                                                ≤660

                                                                                ≤220

                                                                                ≥7680

                                                                                -20 ~ 40

                                                                                10~80% no condensation

                                                                                LVS0400

                                                                                4

                                                                                320*160

                                                                                80*40

                                                                                3000~38000 adjustable

                                                                                160\140

                                                                                5000:1

                                                                                ≤660

                                                                                ≤220

                                                                                ≥7680

                                                                                -20 ~ 40

                                                                                10~80% no condensation

                                                                                LVS0500

                                                                                5

                                                                                320*160

                                                                                64*32

                                                                                3000~38000 adjustable

                                                                                160\140

                                                                                5000:1

                                                                                ≤660

                                                                                ≤220

                                                                                ≥7680

                                                                                -20 ~ 40

                                                                                10~80% no condensation

                                                                                LVS0592

                                                                                5.925

                                                                                320*160

                                                                                52*27

                                                                                3000~38000 adjustable

                                                                                160\140

                                                                                5000:1

                                                                                ≤660

                                                                                ≤220

                                                                                ≥7680

                                                                                -20 ~ 40

                                                                                10~80% no condensation

                                                                                LVS0800

                                                                                8

                                                                                320*160

                                                                                40*20

                                                                                3000~38000 adjustable

                                                                                160\140

                                                                                5000:1

                                                                                ≤660

                                                                                ≤220

                                                                                ≥7680

                                                                                -20 ~ 40

                                                                                10~80% no condensation

                                                                                LVS1000

                                                                                10

                                                                                320*160

                                                                                32*16

                                                                                3000~38000 adjustable

                                                                                160\140

                                                                                5000:1

                                                                                ≤660

                                                                                ≤220

                                                                                ≥7680

                                                                                -20 ~ 40

                                                                                10~80% no condensation

Remark: Above data is subject to change without prior notice
