LN Series-Rental LED Display, Indoor & Outdoor Display

VERSATILE LED DISPLAY FOR INDOOR RENTAL SOLUTIONS

Introducing the Leyard LN-C Series: Redefining the art of visual storytelling with its innovative S-shaped curved design. Seamless curving in -45 to +45 degree curves, allowing you to craft a cylindrical screen with just 8 panels. You’ll notice the LN-C series is well designed with multifunction handles, offers quick setup and effortless maintenance.

PRO FEATURES

- Seamless curving in -45 to +45 degree curves

- A cylinder screen is achievable with only 8 cabinets

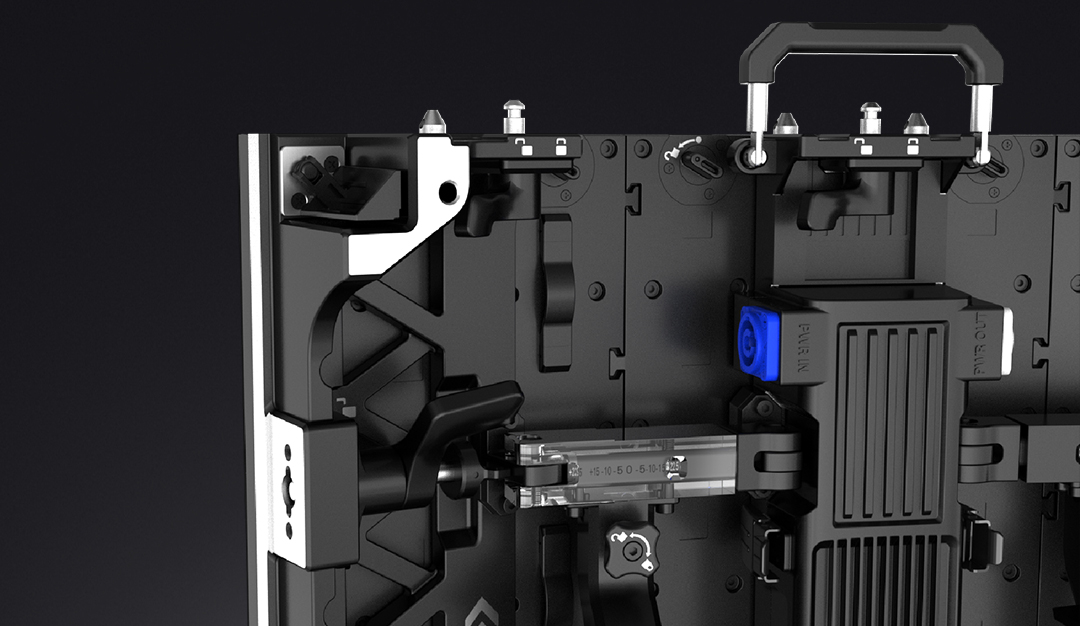

- Well designed with multifunction handles for quick setup

- Captivate with its enhanced visual performance and stability

Message

Product Highlights

Curved Splicing & Concave Setup

Rental LED displays are a flexible solution widely used in temporary events and occasions. They are commonly used in exhibitions, concerts, conferences, sports events, and commercial activities to provide high-quality visual effects and information delivery.

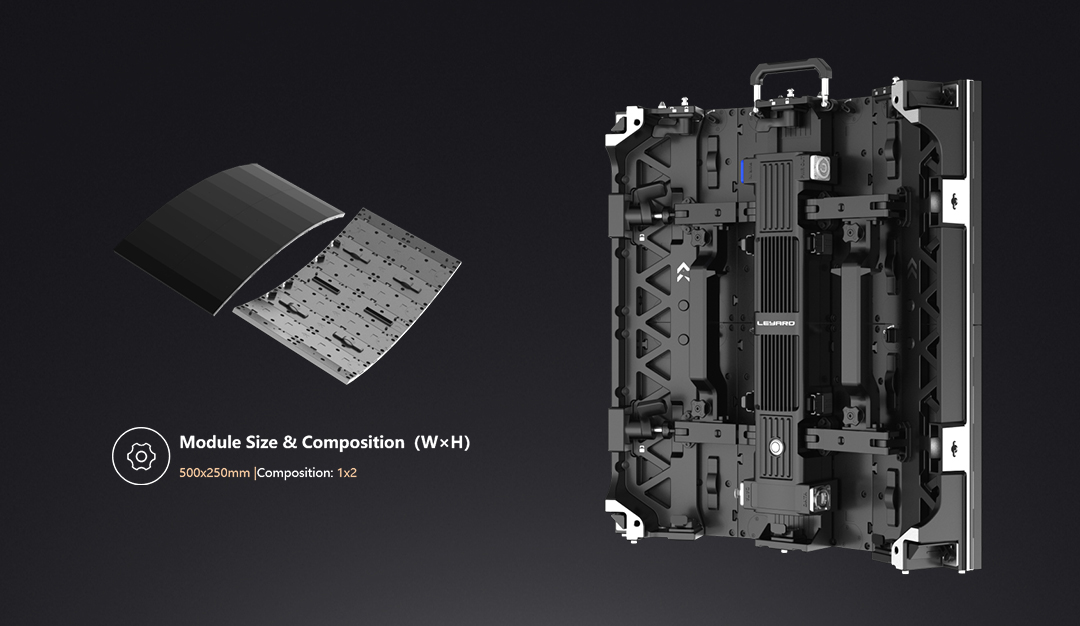

High Quality Die-casting Aluminum Cabinet

* Ultra Precision CNC (<0.15mm)
* Module Size & Composition (W×H): 500x250mm | Composition: 1x2

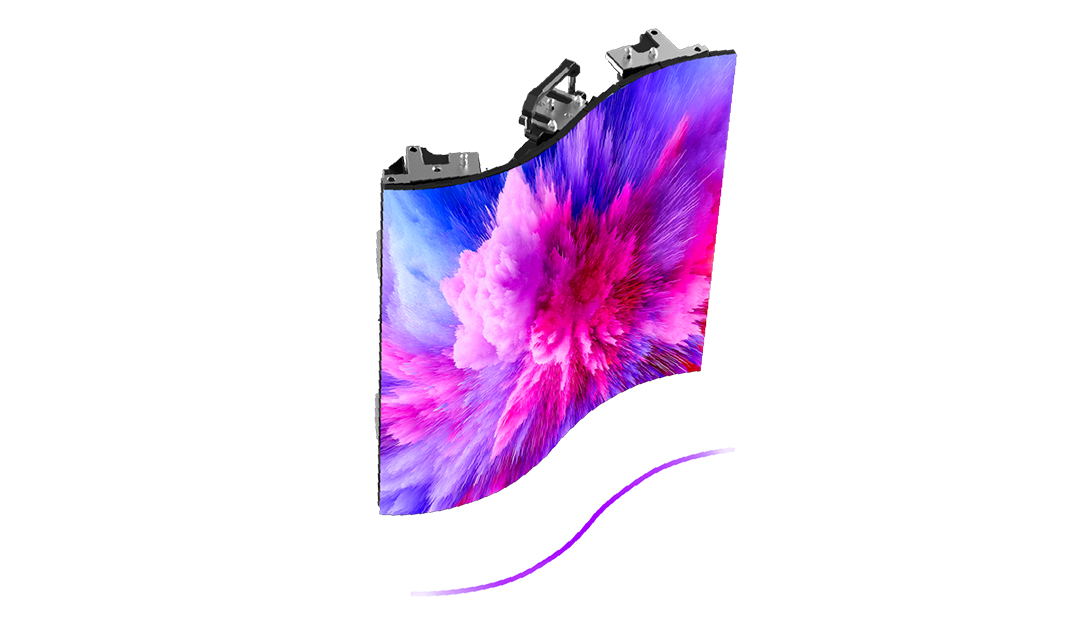

Smooth Flexible Surface

The module is smooth, which is different from the unsmooth curved surface made by the multi-fold lines of the large module of the ordinary curved screen. Achieve a perfect S-shape in a single cabinet, and easily adjust the perfect curvature.

9 Radians Adjustable

+22.5° +15° +10° +5° 0° -5° -10° -15° -22.5°

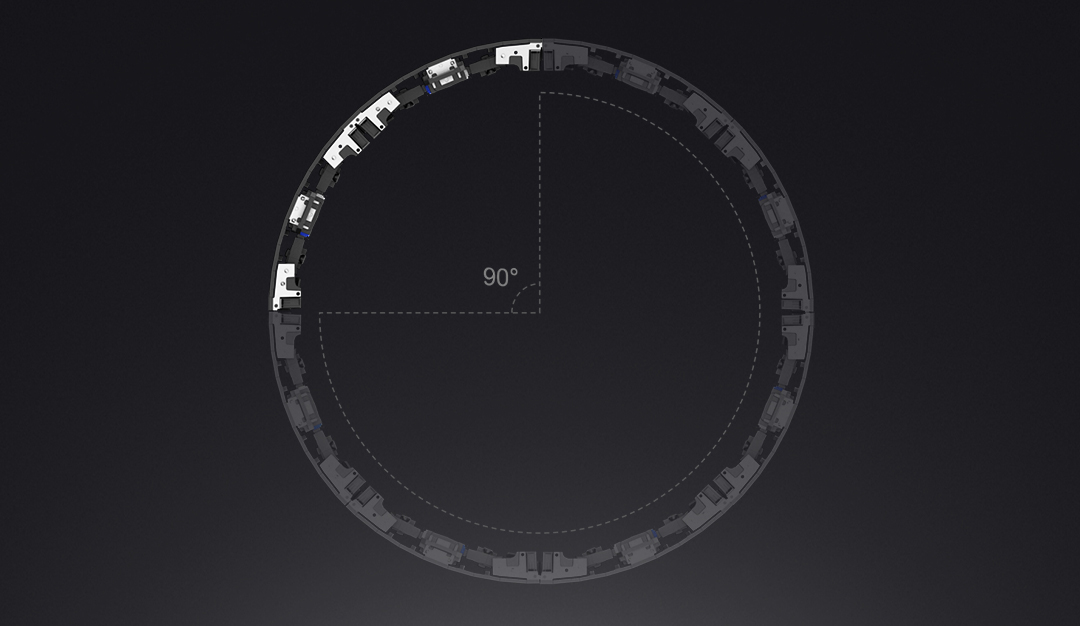

Curved Splicing

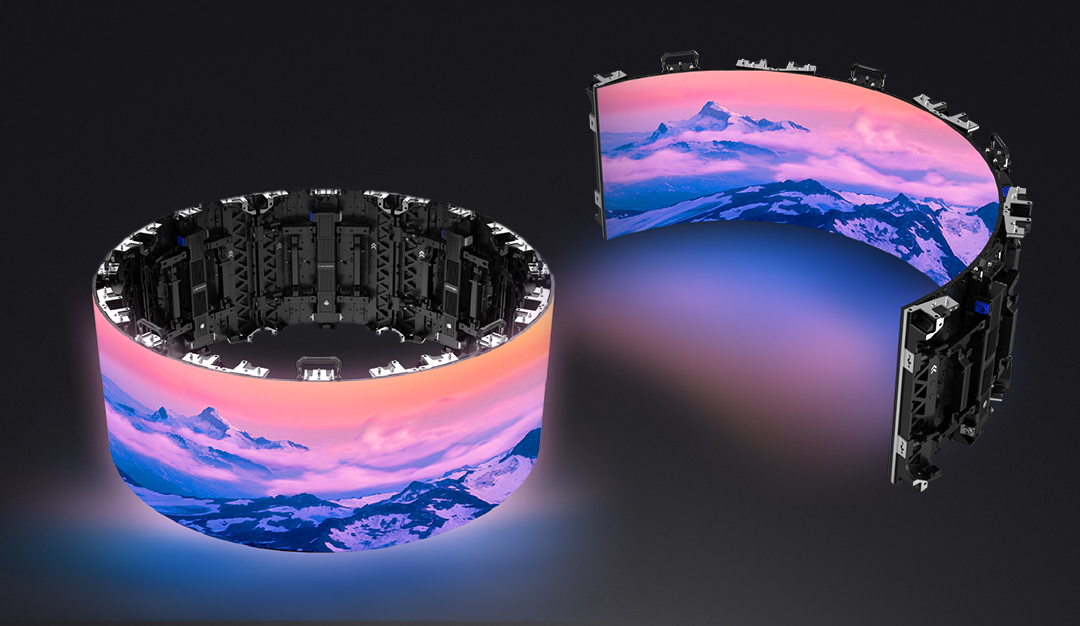

A cylinder (diameter of 1.2M) screen is achievable with only 8 cabinets. ± 45° arc, two cabinets are put together to form a 90°

Solution

Every detail of the LN-C Series is engineered with precision, from its creative structure to its compatible splicing solutions, liberating your LED installations from the traditional boundaries. Experience unparalleled flexibility and bring your vision to life with the Leyard LN-C Series – where your imagination is the only limit.

Application

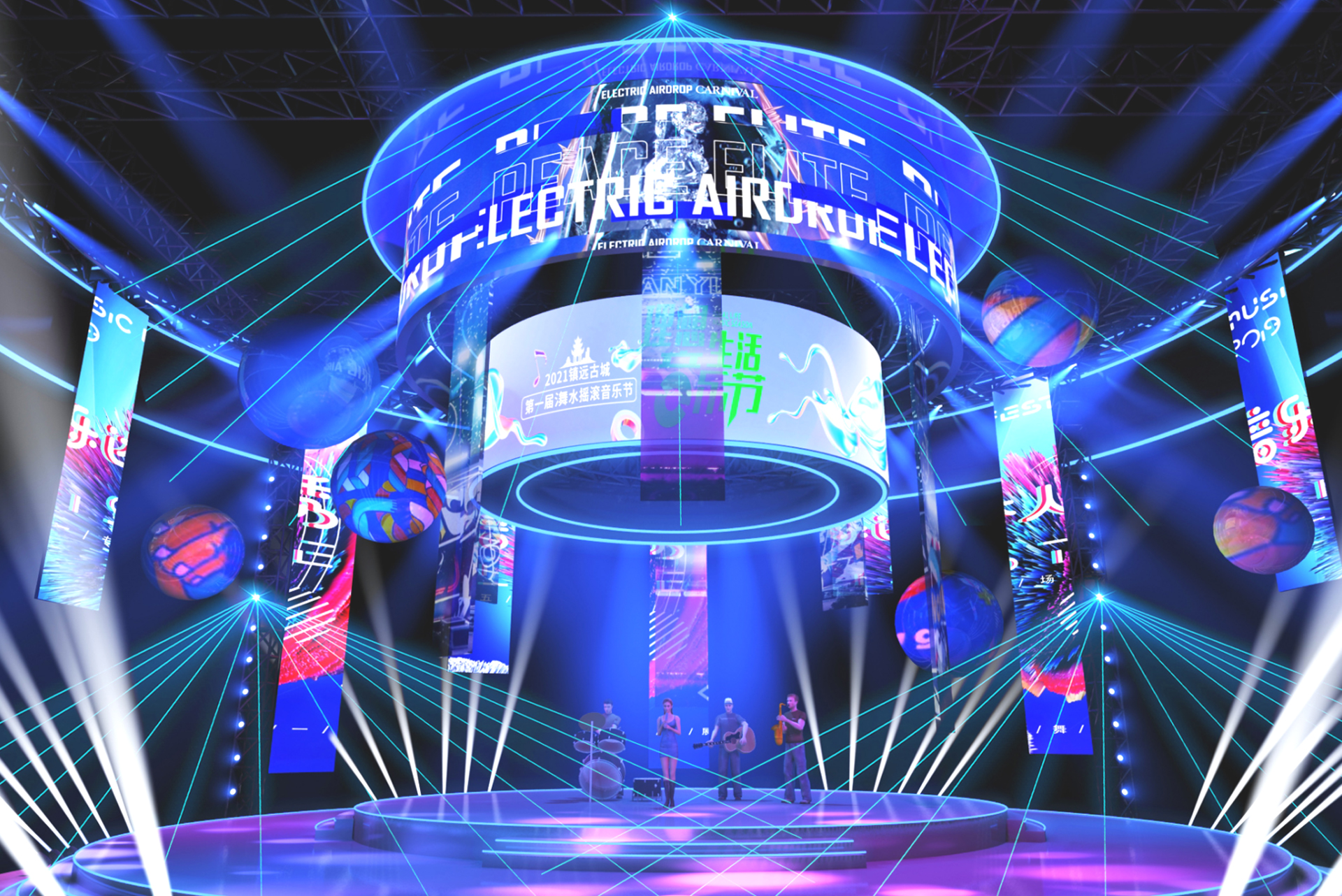

Stage Show

Concerts

Celebrations

Conferences

Exhibition

Sports events

Specifications

LN1.9-C

LN2.6-C

LN2.9-C

LN3.9-C

LN2.9S-C

Item
Pixel Pitch (mm)
Cabinet Dimensions (WxHxD) (mm)
Cabinet Resolution
Module Size (mm)(WxH)
Module Composition (WxH)
Brightness (nits)
Refresh Rate(Hz)
Max./Avg.Power Consumption(W/㎡)
Viewing Angle (H/V) (°)
Contrast Ratio

                                                                                LN1.9-C

                                                                                1.95

                                                                                500x500x79

                                                                                256x256

                                                                                500x250

                                                                                1x2

                                                                                1000

                                                                                ≥3840Hz/≥7680Hz

                                                                                600/200

                                                                                160/140

                                                                                5000:1

                                                                                LN2.6-C

                                                                                2.60

                                                                                500x500x79

                                                                                192x192

                                                                                500x250

                                                                                1x2

                                                                                1000

                                                                                ≥3840Hz/≥7680Hz

                                                                                600/200

                                                                                160/140

                                                                                5000:1

                                                                                LN2.9-C

                                                                                2.97

                                                                                500x500x79

                                                                                176x168

                                                                                500x250

                                                                                1x2

                                                                                1000

                                                                                ≥3840Hz/≥7680Hz

                                                                                600/200

                                                                                160/140

                                                                                5000:1

                                                                                LN3.9-C

                                                                                3.90

                                                                                500x500x79

                                                                                128x128

                                                                                500x250

                                                                                1x2

                                                                                1000

                                                                                ≥3840Hz/≥7680Hz

                                                                                600/200

                                                                                160/140

                                                                                5000:1

                                                                                LN2.9S-C

                                                                                2.97

                                                                                500x500x79

                                                                                160x168

                                                                                250x250

                                                                                2x2

                                                                                4000

                                                                                ≥3840Hz/≥7680Hz

                                                                                600/200

                                                                                160/140

                                                                                5000:1

Remark: Above data is subject to change without prior notice
