Leyard MG-2 | Next Gen MG Indoor Fine Pitch LED Display

Diverse Upgrades for Entry-level to Premium Market Segments

The new generation MG, is the upgrade of the very success model of MG series. It supports the front and rear installation, front access. The series covers three different position lines: entry level with Top LEDs; mainstream with 4in1 MicroLEDs CC or CA driver IC, and premium with MicroLEDs and high performance driver IC; DCI P3 optional; EMC Class B optional; the GOB optional; and the selectable control system.

PRO FEATURES

- Micro LED Full Flip Chip

- Flat, From Modules to Displays

- MicroLED High Brightness, High Contrast

- More Details at Low Brightness

- Front Access, Fast Installation

- Careful designed modules to be GOB ready, much better flatness

- Waterproof, easy to clean the surface

Message

Product Highlights

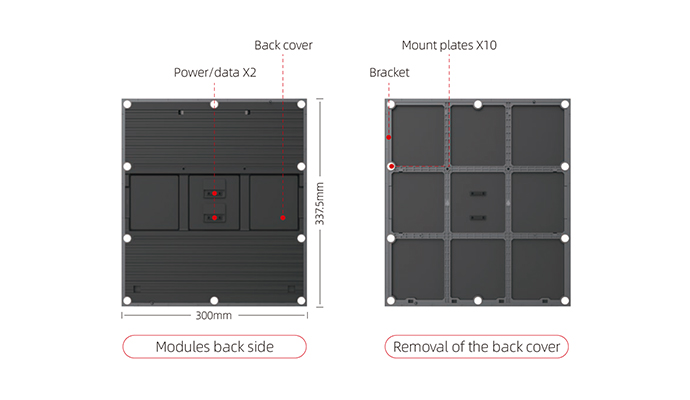

Dual Interface LED Module

Careful designed modules to be GOB ready, much better flatness

Floating Connectors

The time-proved connection method, introduced by Leyard into the LED display industry

Flat, From Modules to Displays

Experience of fine pixel pitch in decades, the superior performance

MicroLED High Brightness, High Contrast

MicroLED in 2000nits and 20000:1 contrast ratio

More Details at Low Brightness

The display is 16 bits to deliver high grayscales at low brightness area

HDR - High Dynamic Range

HDR content is in 10 bits, new gen MG can deliver a much bigger color volume than SDR LED display

Front Access, Fast Installation

Multiple installation method, front/rear installation and front access

Solution

Leyard MG-2 series offers enhanced versatility and performance across its range. It supports both front and rear installations with easy access, catering to diverse environments. This series is ideal for various applications, from retail to high-end event spaces.

Application

Design Centre

Control Centre

Broadcast

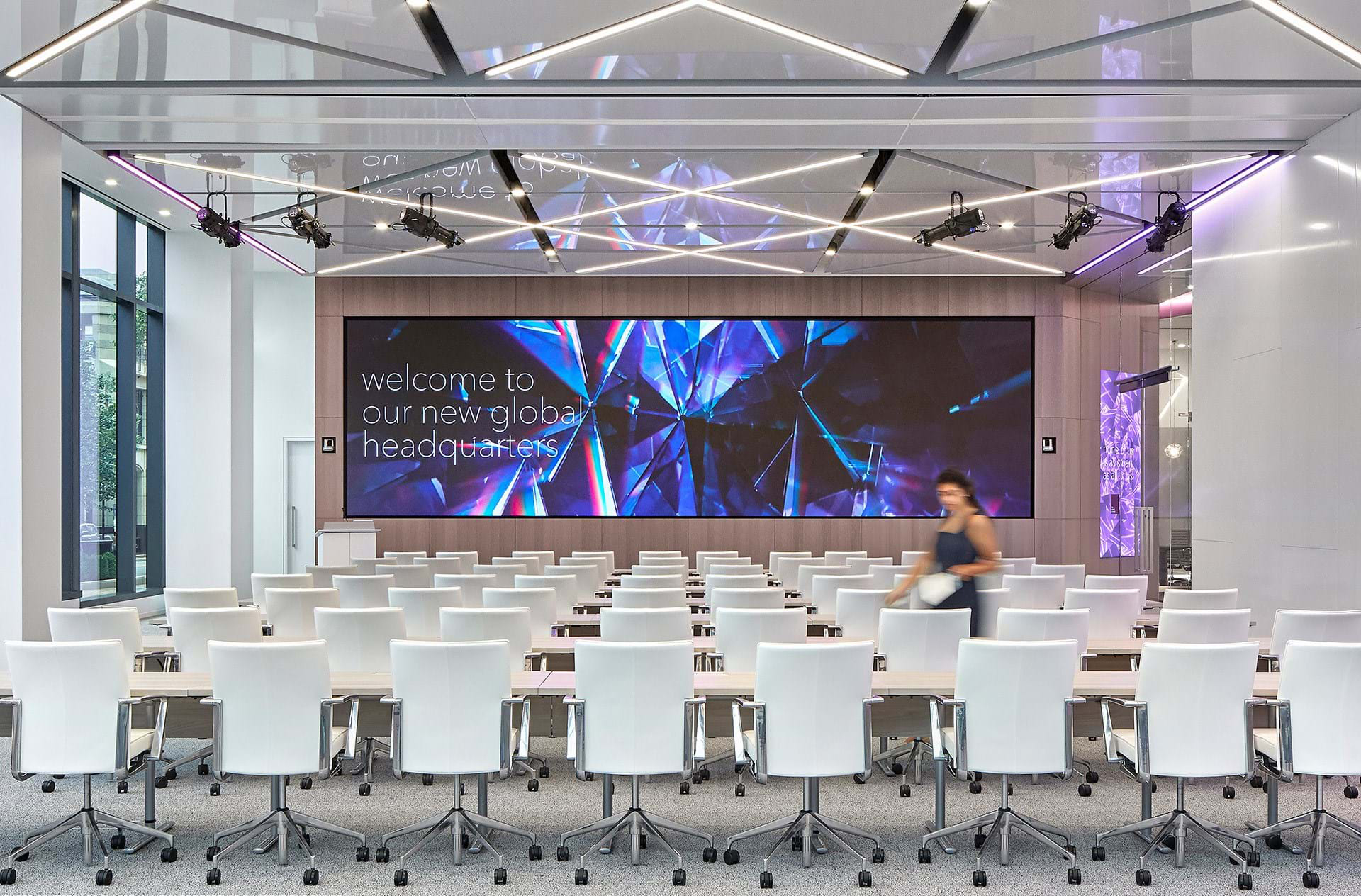

Conference Room

Exhibition Centre

Home Cinema

Specifications

MG0093-2

MG0125-2

MG0156-2

MG0187-2

MG0250-2

Item
LED Type
Pitch Pitch (mm)
Cabinet Resolution (WxH)
Cabinet Dimension (WxHxD, mm)
Cabinet Area (㎡)
Weight (kg/cabinet; kg/㎡)
Pixel Density (Point/㎡)
Peak Brightness (nits)(after calibration)
Contrast Ratio
Peak Power (W/cabinet; W/㎡)
Average Power (W/cabinet; W/㎡)
Input Voltage
Driving Method
Refresh Rate (Hz)
Lifetime (hrs)
Working Temperature (℃)
Working Humidity (RH)

                                                                                MG0093-2

                                                                                Micro 4in1 LED

                                                                                0.9375

                                                                                640x360

                                                                                600x337.5x45

                                                                                0.2025

                                                                                4.5; 22.2

                                                                                1137778

                                                                                2000

                                                                                20000:1

                                                                                76; 376

                                                                                37; 181

                                                                                AC100~240V(50/60Hz)

                                                                                Common Cathode PWM CCD

                                                                                ≥3840

                                                                                100,000

                                                                                -20 ~ 40

                                                                                10 ~ 90% no condensation

                                                                                MG0125-2

                                                                                SMD-TOP

                                                                                1.25

                                                                                480x270

                                                                                600x337.5x45

                                                                                0.2025

                                                                                4.5; 22.2

                                                                                640000

                                                                                1000

                                                                                5000:1

                                                                                104; 514

                                                                                32; 158

                                                                                AC100~240V(50/60Hz)

                                                                                PWM CCD

                                                                                ≥3840

                                                                                100,000

                                                                                -20 ~ 40

                                                                                10 ~ 90% no condensation

                                                                                MG0125-2

                                                                                SMD-Chip

                                                                                1.25

                                                                                480x270

                                                                                600x337.5x45

                                                                                0.2025

                                                                                4.5; 22.2

                                                                                640000

                                                                                800

                                                                                5000:1

                                                                                117; 578

                                                                                30; 150

                                                                                AC100~240V(50/60Hz)

                                                                                PWM CCD

                                                                                ≥3840

                                                                                100,000

                                                                                -20 ~ 40

                                                                                10 ~ 90% no condensation

                                                                                MG0125-2

                                                                                Micro 4in1 LED

                                                                                1.25

                                                                                480x270

                                                                                600x337.5x45

                                                                                0.2025

                                                                                4.5; 22.2

                                                                                640000

                                                                                2000

                                                                                20000:1

                                                                                78; 385

                                                                                27; 134

                                                                                AC100~240V(50/60Hz)

                                                                                PWM CCD

                                                                                ≥3840

                                                                                100,000

                                                                                -20 ~ 40

                                                                                10 ~ 90% no condensation

                                                                                MG0156-2

                                                                                SMD-TOP

                                                                                1.5625

                                                                                384x216

                                                                                600x337.5x45

                                                                                0.2025

                                                                                4.5; 22.2

                                                                                409600

                                                                                800

                                                                                5000:1

                                                                                94; 464

                                                                                27; 135

                                                                                AC100~240V(50/60Hz)

                                                                                PWM CCD

                                                                                ≥3840

                                                                                100,000

                                                                                -20 ~ 40

                                                                                10 ~ 90% no condensation

                                                                                MG0187-2

                                                                                SMD-TOP

                                                                                1.875

                                                                                320x180

                                                                                600x337.5x45

                                                                                0.2025

                                                                                4.5; 22.2

                                                                                284444

                                                                                800

                                                                                5000:1

                                                                                86; 425

                                                                                23; 111

                                                                                AC100~240V(50/60Hz)

                                                                                PWM CCD

                                                                                ≥3840

                                                                                100,000

                                                                                -20 ~ 40

                                                                                10 ~ 90% no condensation

                                                                                MG0250-2

                                                                                SMD-TOP

                                                                                2.5

                                                                                240x135

                                                                                600x337.5x45

                                                                                0.2025

                                                                                4.5; 22.2

                                                                                160000

                                                                                900

                                                                                5000:1

                                                                                80; 397

                                                                                16; 76

                                                                                AC100~240V(50/60Hz)

                                                                                PWM CCD

                                                                                ≥3840

                                                                                100,000

                                                                                -20 ~ 40

                                                                                10 ~ 90% no condensation

Remark: Above data is subject to change without prior notice
