HKSⅡ Series Indoor Fine Pitch LED Display

INDOOR FINE PITCH LED DISPLAY

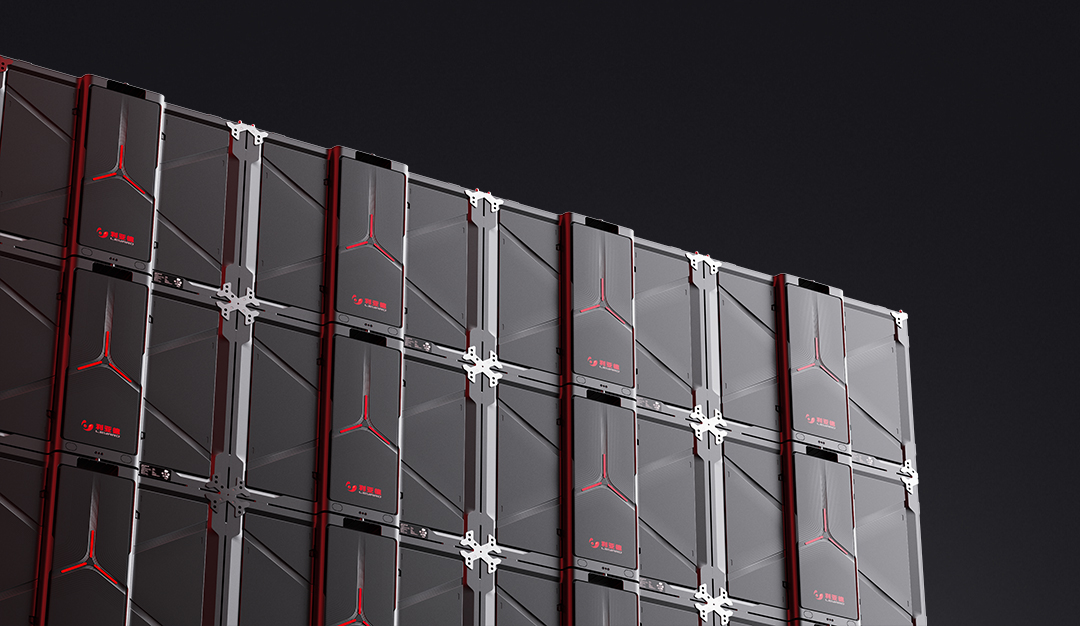

HKSⅡ cabinet adopts a skeleton and lightweight structural design (its minimum thickness of only 26mm, complete cabinet weight of 6.5kg) featuring with simplified structure, seamless splicing and internal hidden wiring design for quick installation easier service with magnetic module design, support F/R maintenance of removing the controller.

KEY FEATURES

Front & rear installation and maintenance
Type-C cables for module connection
Magnetic floating connector design
High refresh rate, High grayscale
Snap-locking and modular design

Message

Product Highlights

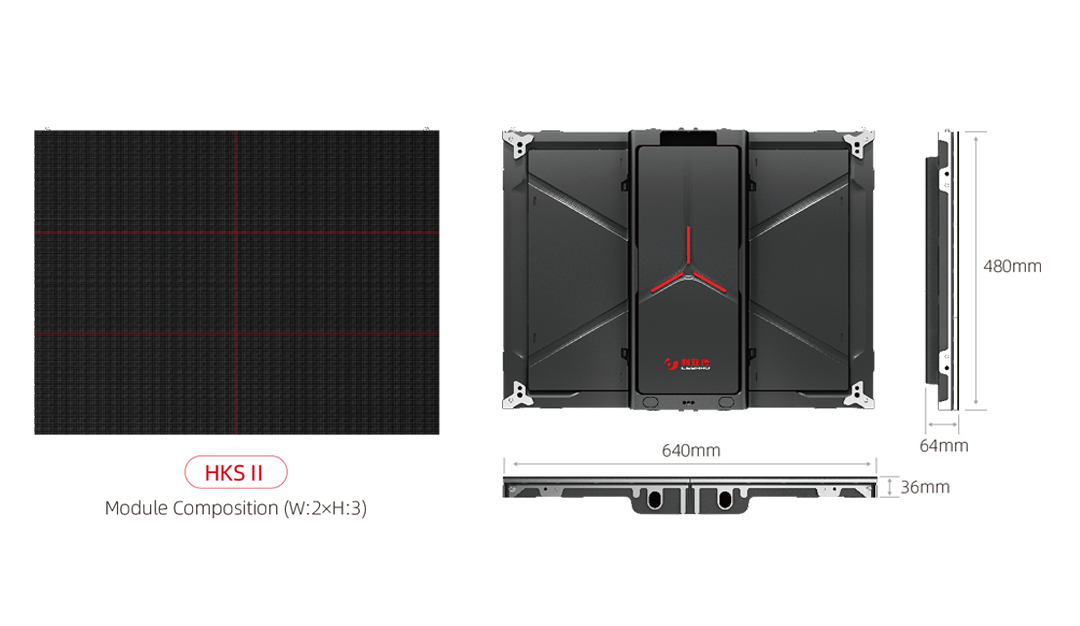

Dimension & Format

The new Type-C connector lets power and data in one cable for high speed transmission and more stable. With such a highly integrated design we bring HKSⅡ and LCHⅡ together to simplify the installation easier then ever, which is ideal for extensive applications.

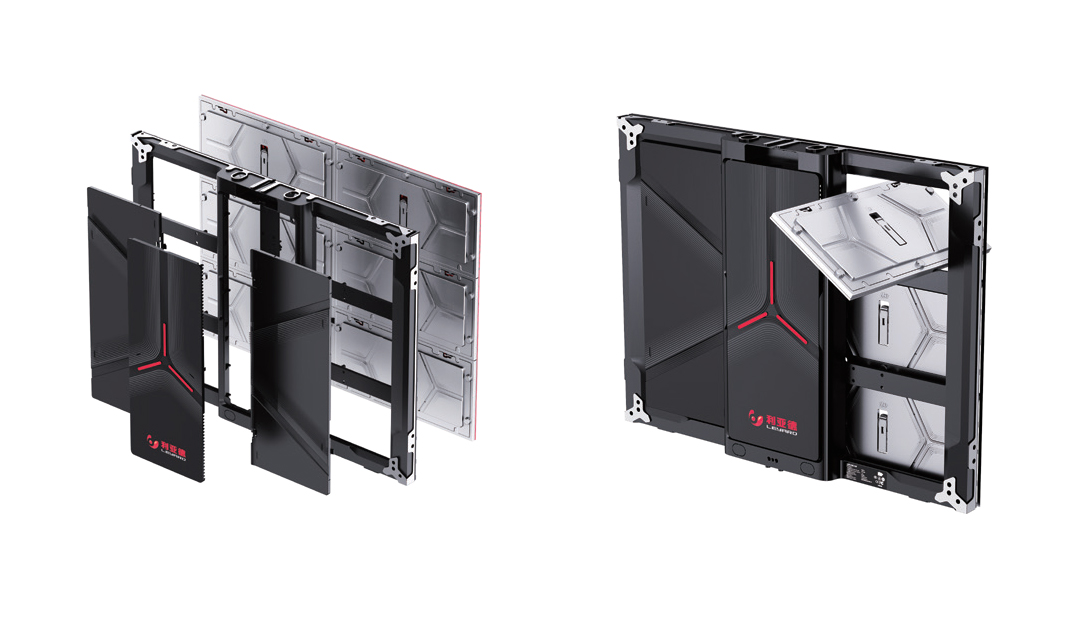

Modular Design and Highly Integration

Modular design with simplified structure details for highly integration, easy installation and maintenance. High-strength aluminum alloy display cabinet with snap-locking backcover design, no screws required.

Simplified Connection for Any Setup

Data&power 2 in 1 Type-C cables for modules connection. Modules with magnetic floating connector design for excellent flatness.

Support 3D/HDR Display

> Compared with ordinary images, MiniBox Ⅱ can provide more dynamic range and image details. According to LDR (Low-Dynamic Range) images with different exposure times.
> And use the best details of the LDR image corresponding to each exposure time to synthesize the final HDR image, which can better reflect the visual effect in the real environment.

Ultra Wide Color Gamut

HKS II LED displays with a wide color gamut can maintain consistent color reproduction across different viewing angles, ensuring that the colors remain accurate and uniform, resulting in more lifelike and visually stunning images and videos.

Solution

HKSⅡ was designed to be compatible with the LCHⅡ module (320x160mm) which serves as its corresponding accessory. The new Type-C connector lets power and data in one cable for high speed transmission and more stable. With such a highly integrated design we bring HKSⅡ and LCHⅡ together to simplify the installation easier then ever, which is ideal for extensive applications.

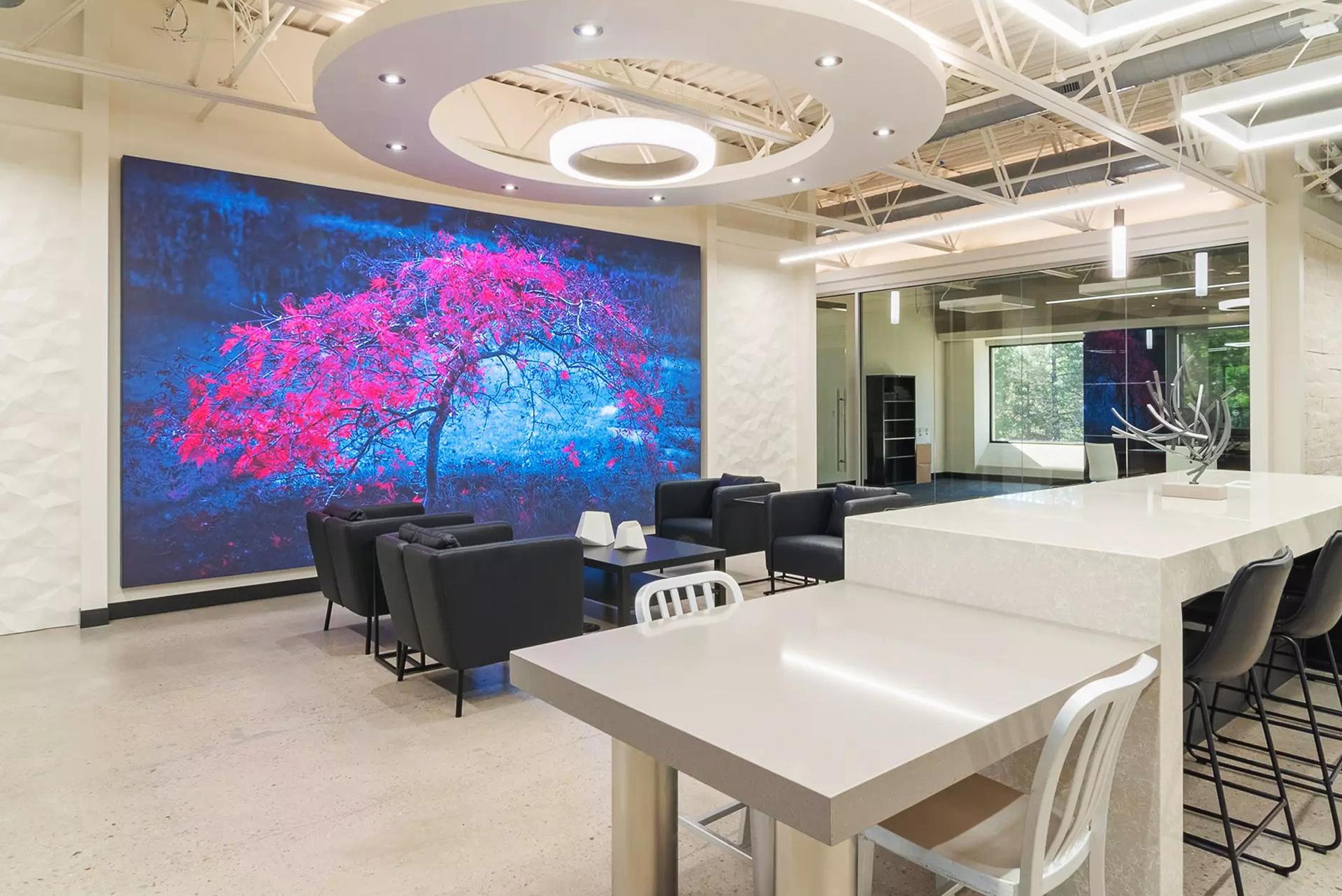

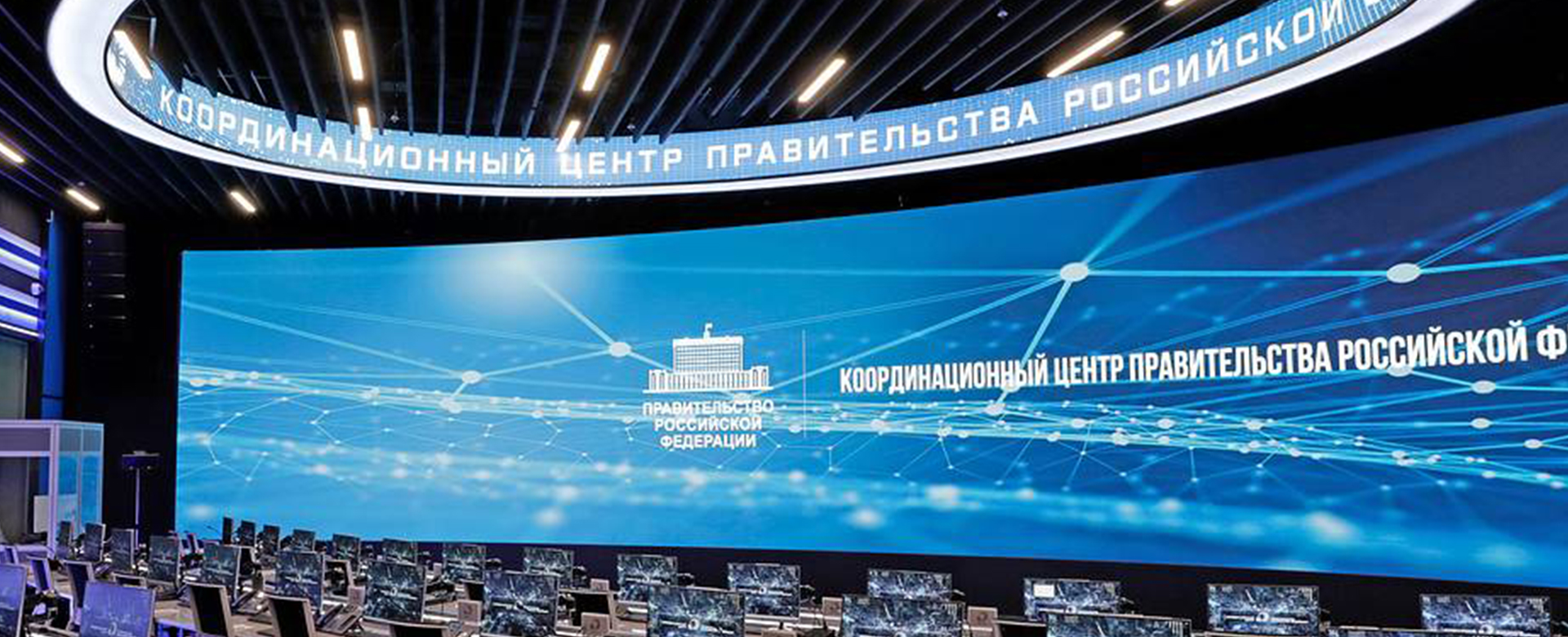

Application

Brand Centre

Museum Centre

Retails & Store

Meeting Room

Exhibition Centre

Artistic Theme

Specifications

HKS1 Ⅱ

HKS1.2 Ⅱ

HKS1.5 Ⅱ

HKS1.8 Ⅱ

HKS2 Ⅱ

HKS2.5 Ⅱ

Item
Product Model
Pixel Pitch(mm)
Cabinet Area (m²)
Cabinet Size (WxHxD)/(mm)
Color Temp (k)
Brightness(nit)
Refresh Rate(Hz)
Contrast Ratio
H/V Viewing Angle (º)
Max/Avg. Power Consumption (W/cabinet)
Storage/Operating Temperature(℃)
Storage Humidity(RH)
Operating Humidity(RH)

                                                                                HKS1 Ⅱ

                                                                                HKS II+ LCH II

                                                                                1.0

                                                                                0.3072

                                                                                640*480*64 ( Including module ) / 640*480*53 ( Not including module )

                                                                                3000~38000 Adjustable

                                                                                ≥550

                                                                                ≥4800

                                                                                8000:1

                                                                                160 / 140

                                                                                150；490 / 50；165

                                                                                -20~60 / -10~40

                                                                                10%~85%

                                                                                10%~80%

                                                                                HKS1.2 Ⅱ

                                                                                HKS II+ LCH II

                                                                                1.25

                                                                                0.3072

                                                                                640*480*64 ( Including module ) / 640*480*53 ( Not including module )

                                                                                3000~38000 Adjustable

                                                                                ≥550

                                                                                ≥4800

                                                                                8000:1

                                                                                160 / 140

                                                                                150；490 / 50；165

                                                                                -20~60 / -10~40

                                                                                10%~85%

                                                                                10%~80%

                                                                                HKS1.5 Ⅱ

                                                                                HKS II+ LCH II

                                                                                1.53

                                                                                0.3072

                                                                                640*480*64 ( Including module ) / 640*480*53 ( Not including module )

                                                                                3000~38000 Adjustable

                                                                                ≥500

                                                                                ≥4800

                                                                                8000:1

                                                                                160 / 140

                                                                                150；490 / 50；165

                                                                                -20~60 / -10~40

                                                                                10%~85%

                                                                                10%~80%

                                                                                HKS1.8 Ⅱ

                                                                                HKS II+ LCH II

                                                                                1.86

                                                                                0.3072

                                                                                640*480*64 ( Including module ) / 640*480*53 ( Not including module )

                                                                                3000~38000 Adjustable

                                                                                ≥500

                                                                                ≥4800

                                                                                8000:1

                                                                                160 / 140

                                                                                150；490 / 50；165

                                                                                -20~60 / -10~40

                                                                                10%~85%

                                                                                10%~80%

                                                                                HKS2 Ⅱ

                                                                                HKS II+ LCH II

                                                                                2.0

                                                                                0.3072

                                                                                640*480*64 ( Including module ) / 640*480*53 ( Not including module )

                                                                                3000~38000 Adjustable

                                                                                ≥500

                                                                                ≥4800

                                                                                8000:1

                                                                                160 / 140

                                                                                150；490 / 50；165

                                                                                -20~60 / -10~40

                                                                                10%~85%

                                                                                10%~80%

                                                                                HKS2.5 Ⅱ

                                                                                HKS II+ LCH II

                                                                                2.5

                                                                                0.3072

                                                                                640*480*64 ( Including module ) / 640*480*53 ( Not including module )

                                                                                3000~38000 Adjustable

                                                                                ≥600

                                                                                ≥4800

                                                                                8000:1

                                                                                160 / 140

                                                                                150；490 / 50；165

                                                                                -20~60 / -10~40

                                                                                10%~85%

                                                                                10%~80%

Remark: Above data is subject to change without prior notice
