LUS Series Indoor LED Display Module

Leyard LUS series is a lightweight and high-strength module with excellent load-bearing capacity. Its optimum design stems from a deep understanding of mechanical principles and the ingenious use of high-strength materials. The screwless design improves overall flatness.

PRO FEATURES

- 3840Hz Refresh Rate

- Snap on Back Cover

- Slim & Light weight

- Dual Module Sizes: 320x160mm and 320x180mm

- Support Automatic Adjustment of Brightness and Color Temperature

Message

Product Highlights

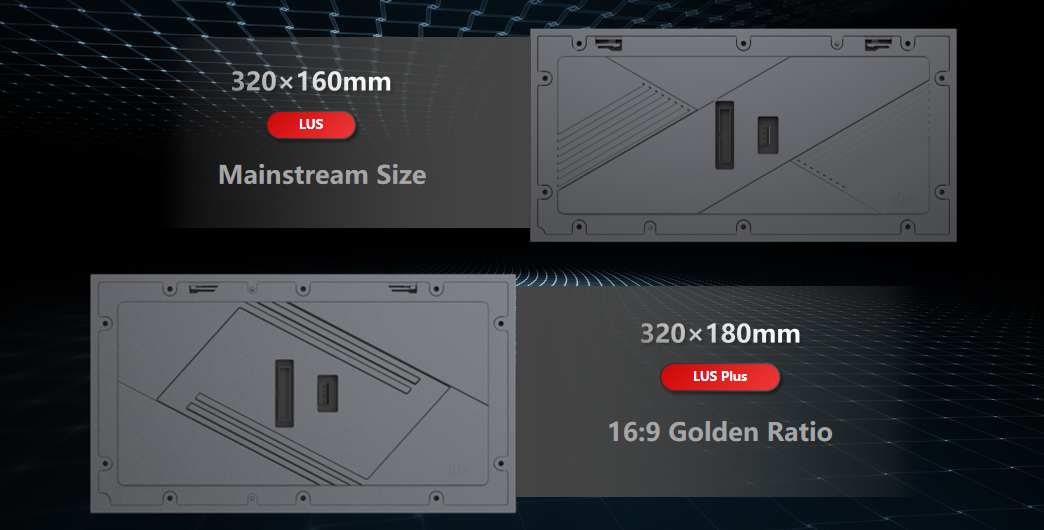

Dual Sizes

< 320×160mm
< 320×180mm

Automatic Adjustment

< Automatic adjustment of brightness and color temperature
< Bringing comfort, realizing power saving

3000K~38000K Color Temp Adjustable

Wide Color Temperature Range (3000-38000K), delivering the perfect color ambiance for various environments, from warm to cool tones.

Standard Refresh Rate 3840Hz

The 3840Hz refresh rate in the Leyard LUS Series ensures ultra-smooth visuals with minimal motion blur, delivering crystal-clear, lifelike images even during fast-moving content. This high refresh rate reduces flicker, enhancing viewer comfort during extended use, and guarantees precise synchronization for seamless, high-performance displays in demanding environments.

Solution

The Leyard LUS Series offers a lightweight yet high-strength module, designed for exceptional load-bearing capacity and long-term durability. Engineered with mechanical precision and high-strength materials, this module ensures superior performance and reliability. Its screwless structure enhances flatness and allows for easy serviceability of components, minimizing maintenance time and effort. The Leyard LUS Series is ideal for environments such as Command Centers, Multifunction Rooms, and Meeting Rooms, where precision, reliability, and efficiency are paramount. With its sleek design and high-performance capabilities, it guarantees clear, consistent, and visually stunning displays in any application.

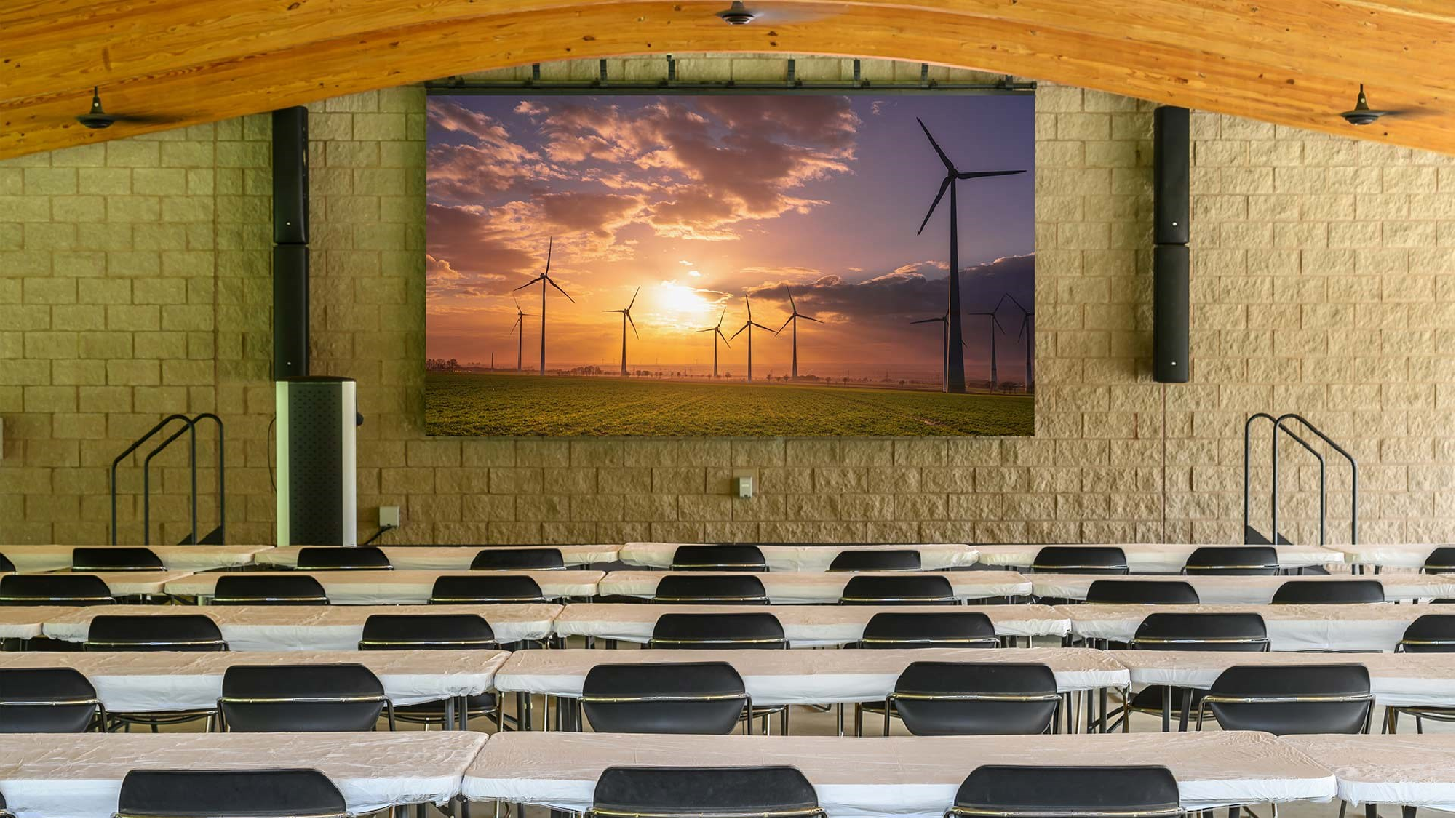

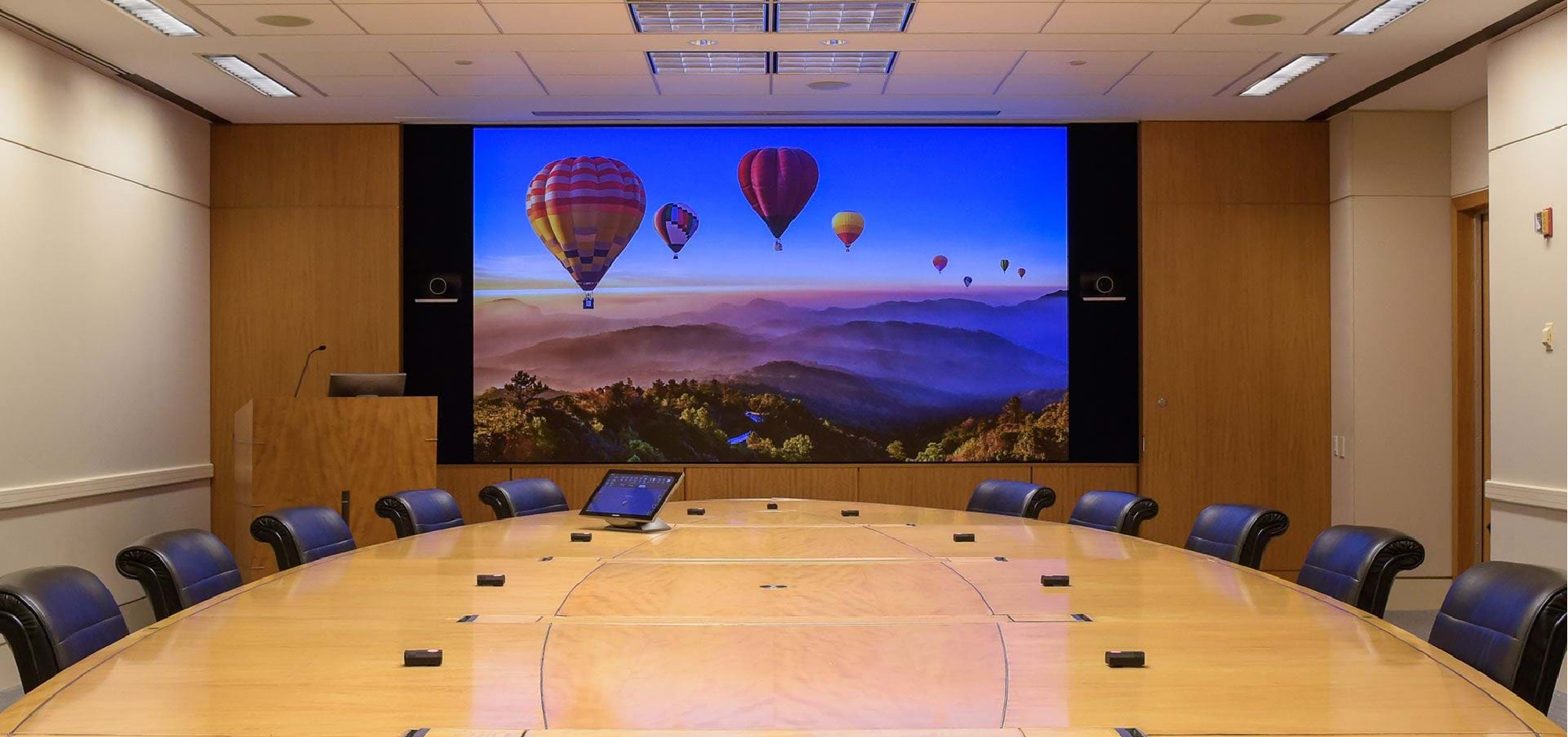

Application

Design Centre

Control Centre

Broadcast

Conference Room

Exhibition Centre

Specifications

LUS0100

LUS0125

LUS0153

LUS0186

LUS0200

LUS0250

LUS0300

LUS0400

Item
Pixel Pitch (mm)
Module Size (mm) (WxH)
White Balance Brightness (nits)
Color Temperature (K)
Peak Power Consumption (W/㎡)
Avg Power Consumption(W/㎡）
Refresh Rate (Hz)
Operation Temperature (℃)
Operation Humidity (RH)

                                                                                LUS0100

                                                                                1

                                                                                320*160

                                                                                ≥500

                                                                                3000~38000 Adjustable

                                                                                ≤440

                                                                                ≤148

                                                                                ≥3840

                                                                                -10~40

                                                                                10~80% no condensation

                                                                                LUS0125

                                                                                1.25

                                                                                320*160

                                                                                ≥500

                                                                                3000~38000 Adjustable

                                                                                ≤440

                                                                                ≤148

                                                                                ≥3840

                                                                                -10~40

                                                                                10~80% no condensation

                                                                                LUS0153

                                                                                1.538

                                                                                320*160

                                                                                ≥500

                                                                                3000~38000 Adjustable

                                                                                ≤352

                                                                                ≤118

                                                                                ≥3840

                                                                                -10~40

                                                                                10~80% no condensation

                                                                                LUS0186

                                                                                1.86

                                                                                320*160

                                                                                ≥500

                                                                                3000~38000 Adjustable

                                                                                ≤352

                                                                                ≤118

                                                                                ≥3840

                                                                                -10~40

                                                                                10~80% no condensation

                                                                                LUS0200

                                                                                2

                                                                                320*160

                                                                                ≥500

                                                                                3000~38000 Adjustable

                                                                                ≤352

                                                                                ≤118

                                                                                ≥3840

                                                                                -10~40

                                                                                10~80% no condensation

                                                                                LUS0250

                                                                                2.5

                                                                                320*160

                                                                                430~450/≥600

                                                                                3000~38000 Adjustable

                                                                                ≤230/≤396

                                                                                ≤77/≤132

                                                                                ≥3840

                                                                                -10~40

                                                                                10~80% no condensation

                                                                                LUS0300

                                                                                3.076

                                                                                320*160

                                                                                500~550

                                                                                3000~38000 Adjustable

                                                                                ≤308

                                                                                ≤103

                                                                                ≥3840

                                                                                -10~40

                                                                                10~80% no condensation

                                                                                LUS0400

                                                                                4

                                                                                320*160

                                                                                ≥600

                                                                                3000~38000 Adjustable

                                                                                ≤370

                                                                                ≤123

                                                                                ≥3840

                                                                                -10~40

                                                                                10~80% no condensation

Remark: Above data is subject to change without prior notice
