LSRSO Series Outdoor High-definition LED Display

OUTDOOR HIGH-DEFINITION LED DISPLAY

Leyard LSRSO series are designed to deliver superior visual performance in various environmental conditions. These screens offer high brightness levels, ensuring that images remain clear and vibrant even under direct sunlight. With their robust build, they are resistant to weather elements such as rain, wind, and extreme temperatures, making them reliable for long-term outdoor use. The high pixel density of outdoor HD LED screens provides exceptional image clarity and sharpness, making them suitable for displaying high-resolution content, which is essential for advertising and public information dissemination.

KEY FEATURES

Minimalist assembly without deformation
Innovative patented flatness non-slip balance lock assembly.
Can support right angle installation
Front and rear protection up to IP65/IP65
Lightweight design - 39.6KG/unit (1280x960mm), 32.6kg/unit(960x960mm)

Message

Product Highlights

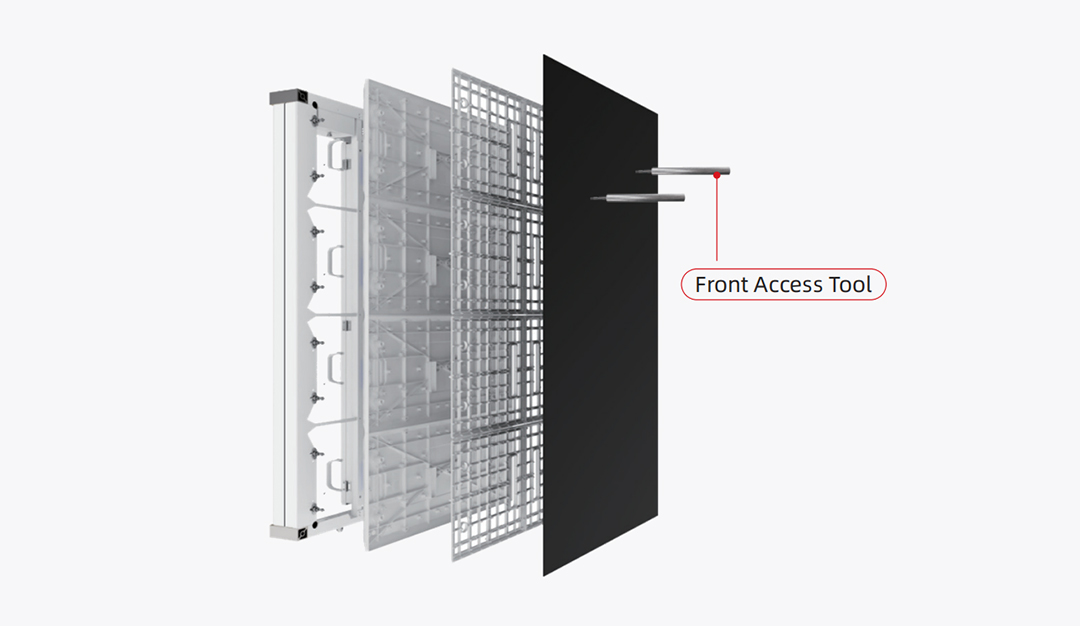

Minimalist Assembly Without Deformation

> Hub connection and wireless design, 2mm reinforced aluminum plate to prevent deformation.
> It can support front and rear disassembly and maintenance methods.

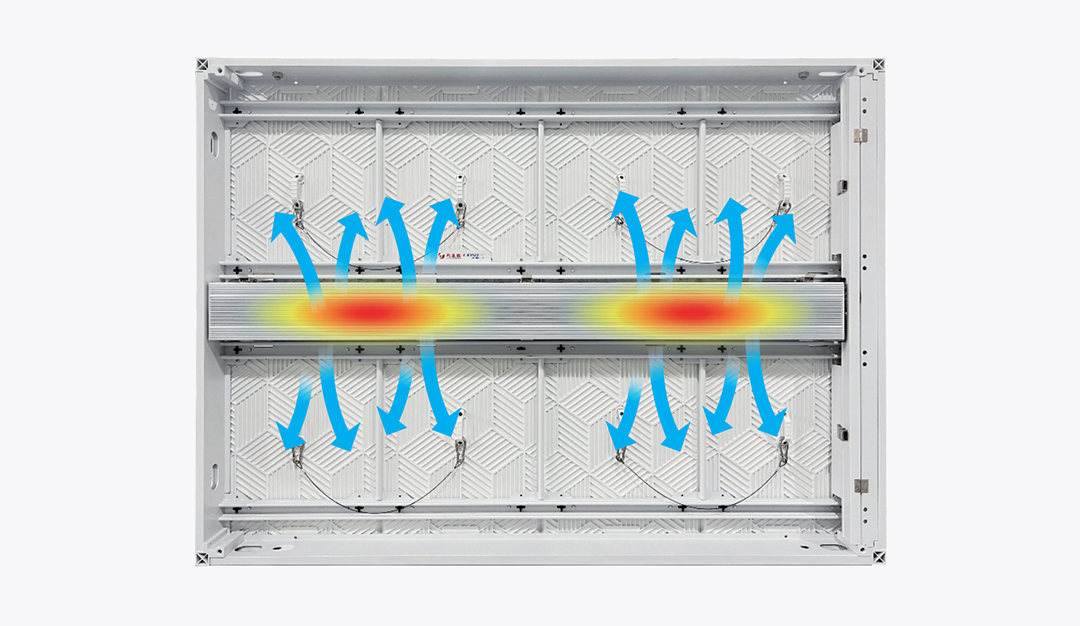

Efficient Heat Dissipation

> Improved heat dissipation efficiency: 210%
> Cabinet material: High thermal conductivity aluminum profile
> Lightweight design: 39.6KG/unit (1280*960mm); 32.6kg/unit (960*960mm)

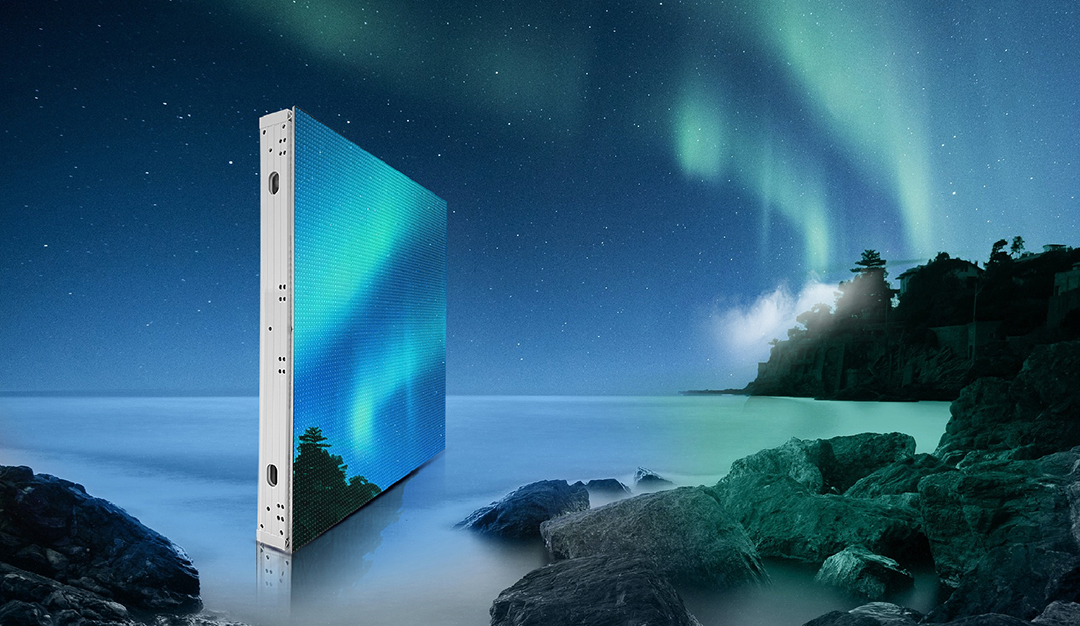

High-definition Dazzle

High resolution, high contrast. Can support 90 degree right angle installation to achieve naked eye 3D, multi-cabinets hoisting, outdoor wall mounting and naked installation.

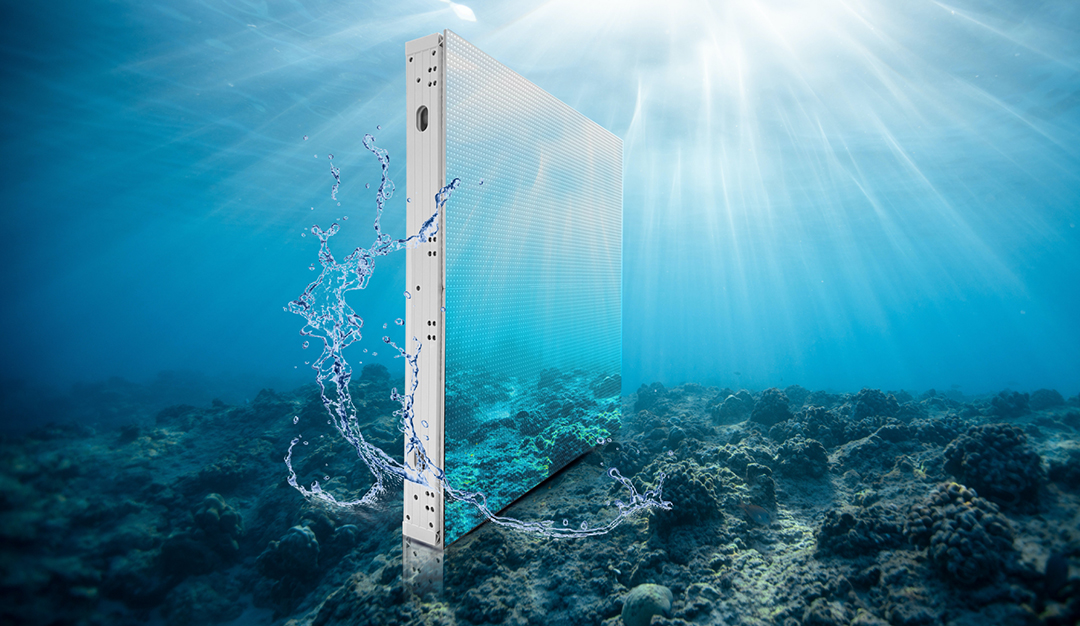

Adapt to Harsh Environments

Front and rear protection up to IP65/IP65. Corrosion-resistant aluminum profile for stable operation in freezing temperatures of minus 40 degrees Celsius and high temperatures up to 70 degrees Celsius.

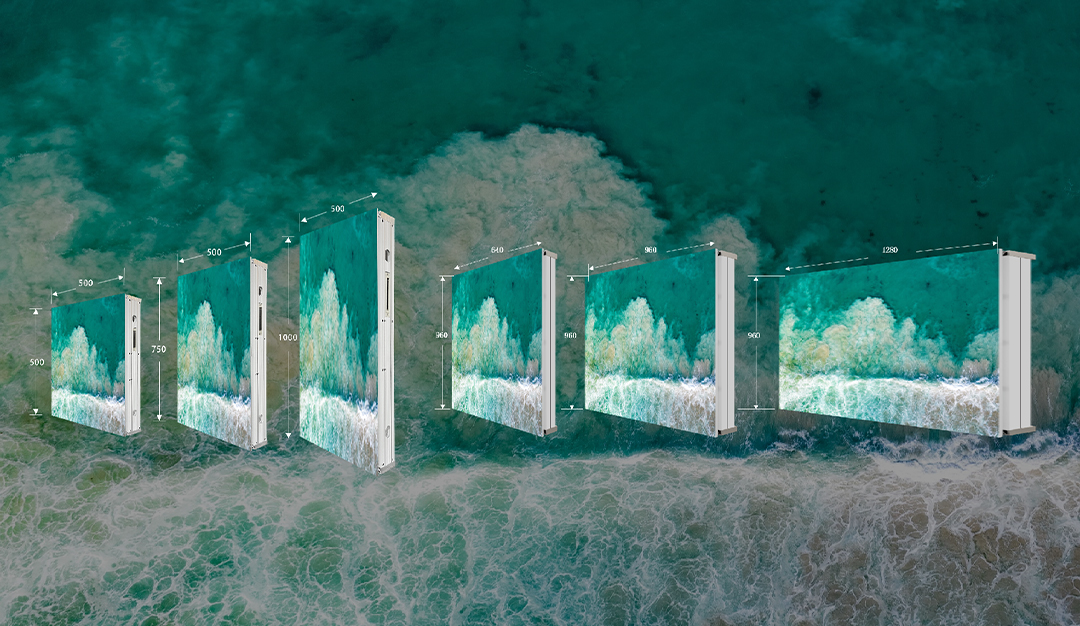

Design that Blends with Nature

> Pixel Pitch: 2.9mm/3.9mm/4.8mm/6.67mm/8mm /10mm
> Cabinet size(W*H):
500*500mm/500*750mm/500*1000mm
/1000*1000mm/1000*750mm(3.9/4.8mm)
640mm*960mm(6.6/8/10mm)
960mm*960mm(6.6/8/10mm)
1280mm*960mm(6.6/8/10mm)

Solution

LSRSO Series outdoor offers a variety of products for outdoor display application. LSRSO Series outdoor was developed based on the high demands environmental conditions put on solutions installed outdors. High brightness, solid mechanics and best image characteristics make Leyard's outdoor LED solutions a first choice for outdoor signage applications in retail, sports venues and corporate applications.

Application

Retails Advertising Screen
Outdoor Advertisment Billboard
Naked-eye 3D Outdoor LED Screen
Building Facades Screen
City Centre
Sports Venues

Specifications

LSRS2O

LSRS3O

LSRS4O

LSRS6O

LSRS8O

LSRS10O

Item
Pixel Pitch (mm)
LED Model
Pixel Density (dots/m²)
Cabinet Size (mm)(WxH)
Screen Weight (KG/m²)
Brightness (cd/m²) correction on
Refresh Rate (Hz)
Contrast
Color Temperature (after calibration) (K)
Protection (F/R)
Scan Model
Max/Avg. Power Consumption (w/m²)
Operating Temperature/Humidity
Certificate

                                                                                LSRS2O

                                                                                2.9

                                                                                SMD

                                                                                112896

                                                                                500x500/500x1000

                                                                                32

                                                                                5000~6500

                                                                                >3840

                                                                                >5000:1

                                                                                3000-9500

                                                                                IP65/IP65

                                                                                21S

                                                                                550/180

                                                                                -20~60℃ | 10%~95%

                                                                                CE/CB/ROHS

                                                                                LSRS3O

                                                                                3.9

                                                                                SMD

                                                                                65536

                                                                                500x1000/1000x1000/1250x1000

                                                                                32

                                                                                5500~7000

                                                                                >3840

                                                                                >5000:1

                                                                                3000-9500

                                                                                IP65/IP65

                                                                                16S

                                                                                550/180

                                                                                -20~60℃ | 10%~95%

                                                                                CE/CB/ROHS

                                                                                LSRS4O

                                                                                4.8

                                                                                SMD

                                                                                43264

                                                                                500x1000/1000x1000/1250x1000

                                                                                32

                                                                                5500~7000

                                                                                >3840

                                                                                >5000:1

                                                                                3000-9500

                                                                                IP65/IP65

                                                                                13S

                                                                                550/180

                                                                                -20~60℃ | 10%~95%

                                                                                CE/CB/ROHS

                                                                                LSRS6O

                                                                                6.67

                                                                                SMD

                                                                                22500

                                                                                640x960/960x960/1280x960

                                                                                35

                                                                                6000~8000

                                                                                >3840

                                                                                >5000:1

                                                                                3000-9500

                                                                                IP65/IP65

                                                                                6S

                                                                                600/200

                                                                                -20~60℃ | 10%~95%

                                                                                CE/CB/ROHS

                                                                                LSRS8O

                                                                                8

                                                                                SMD

                                                                                15625

                                                                                640x960/960x960/1280x960

                                                                                35

                                                                                6000~10000

                                                                                >3840

                                                                                >5000:1

                                                                                3000-9500

                                                                                IP65/IP65

                                                                                4S

                                                                                600/200

                                                                                -20~60℃ | 10%~95%

                                                                                CE/CB/ROHS

                                                                                LSRS10O

                                                                                10

                                                                                SMD

                                                                                10000

                                                                                640x960/960x960/1280x960

                                                                                35

                                                                                6000~10000

                                                                                >3840

                                                                                >5000:1

                                                                                3000-9500

                                                                                IP65/IP65

                                                                                2S

                                                                                600/200

                                                                                -20~60℃ | 10%~95%

                                                                                CE/CB/ROHS

Remark: Above data is subject to change without prior notice
