COB design offers 4H hardness, dust/moisture protection, and wipe-clean surface.

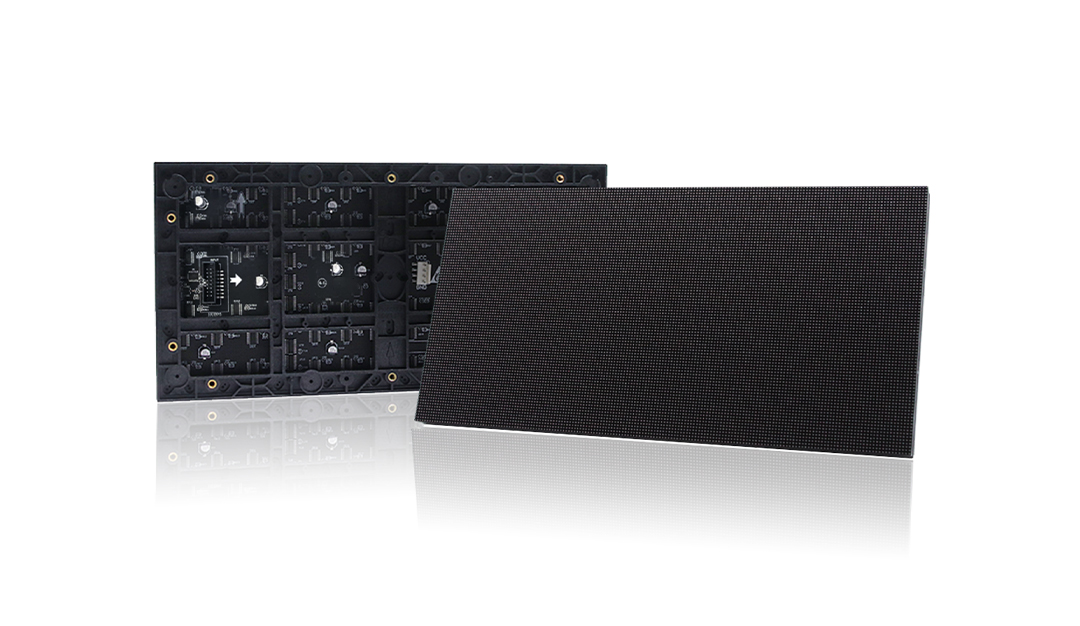

Industry-standard 320x160 module size with universal mounting holes.
Matte anti-glare surface with high contrast ratio.
Low-power cooling screen Energy-saving.

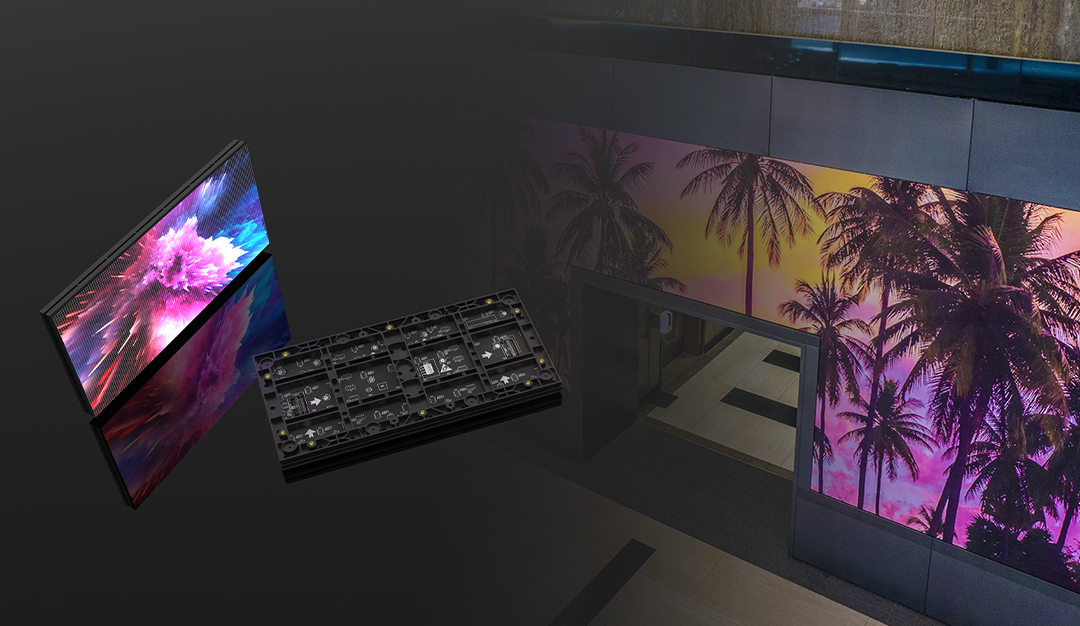

Its COB packaging process signifi cantly enhances the display's protection rating, making it dustproof, moisture-resistant, and featuring a 4H surface hardness for easy cleaning. This display series is widely suitable for various applica tions, including commercial retail and high-end conference settings.

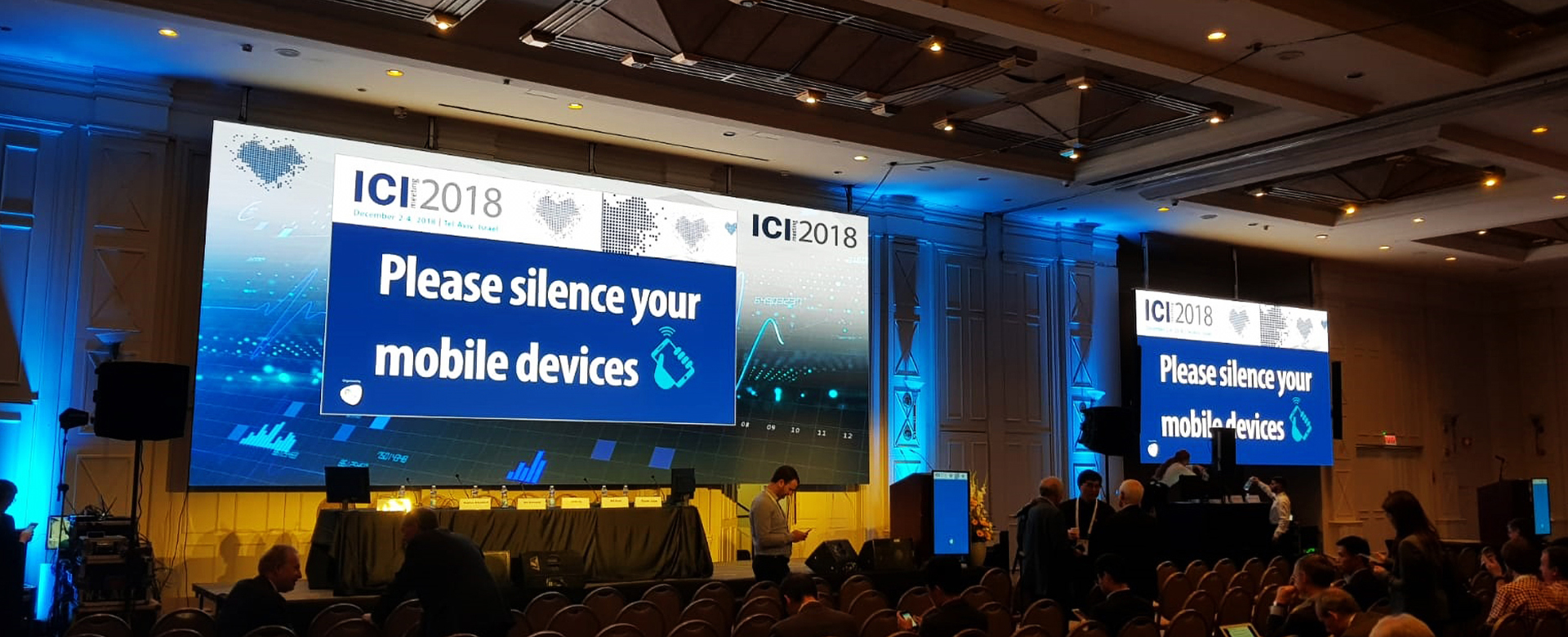

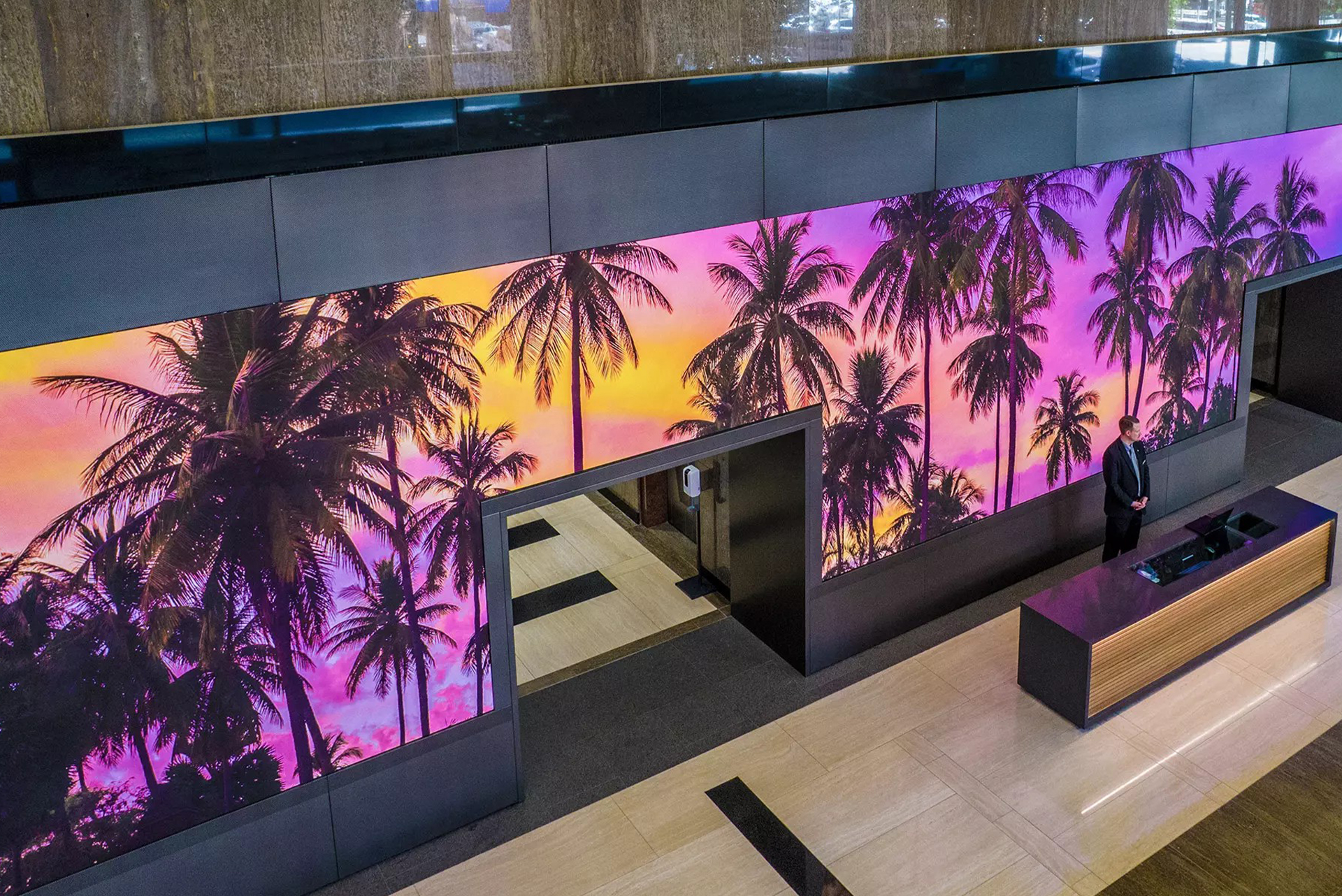

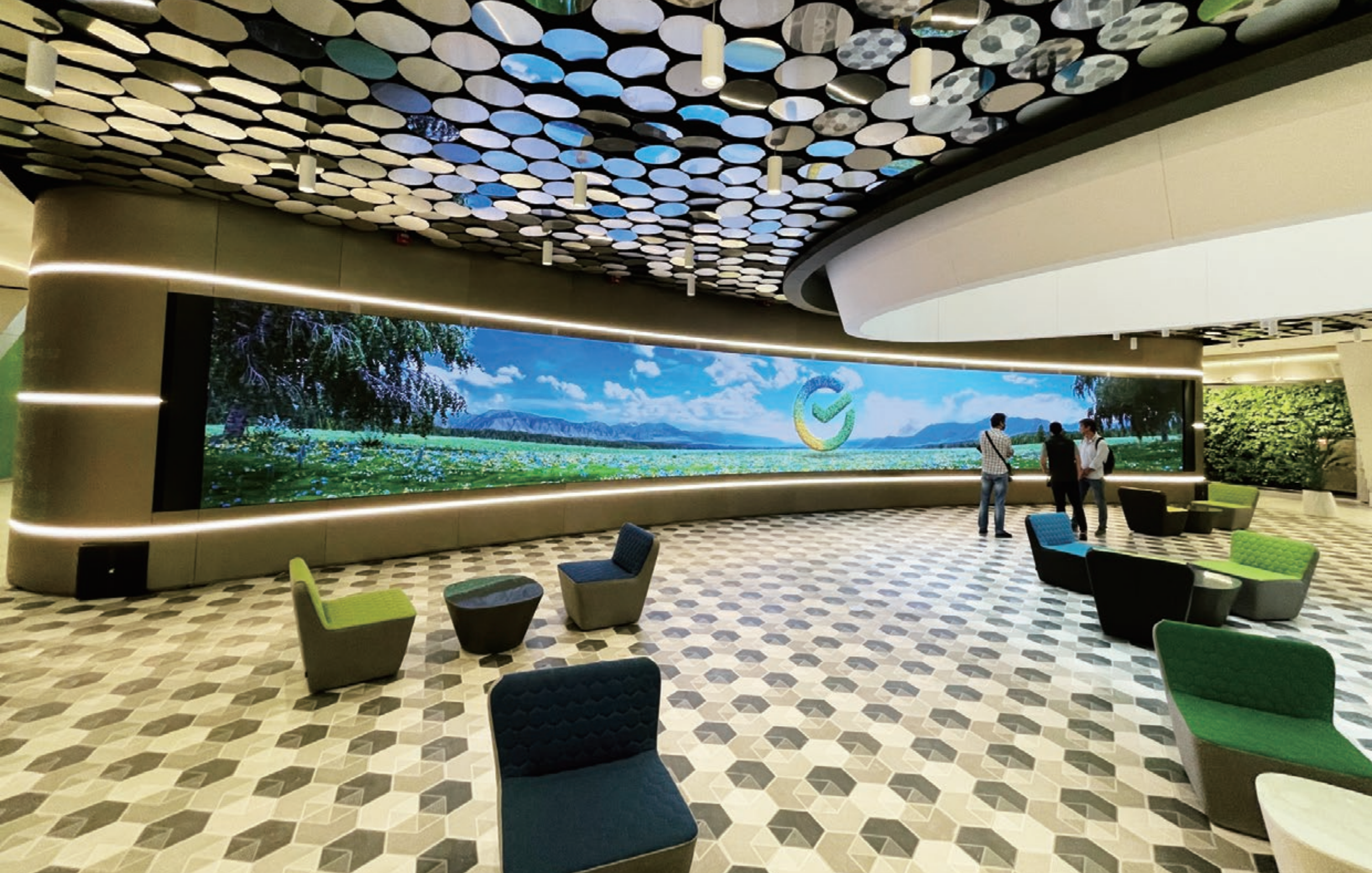

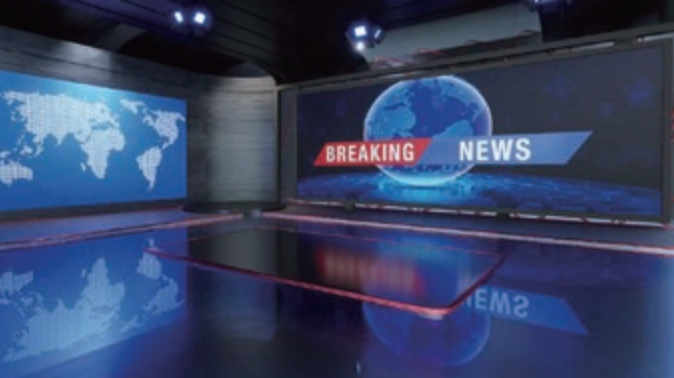

Application
Commercial Halls
Shopping Malls

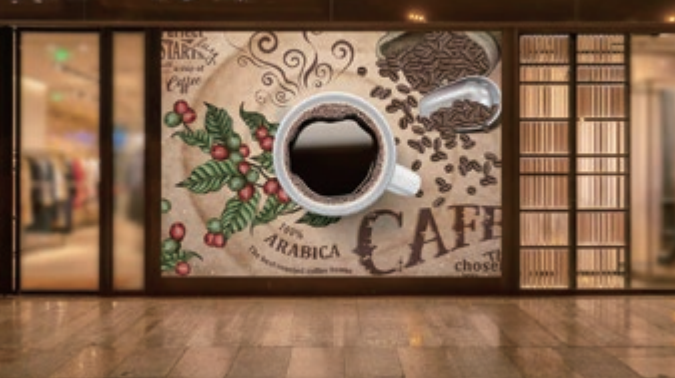

Retails & Store
Museum Centre

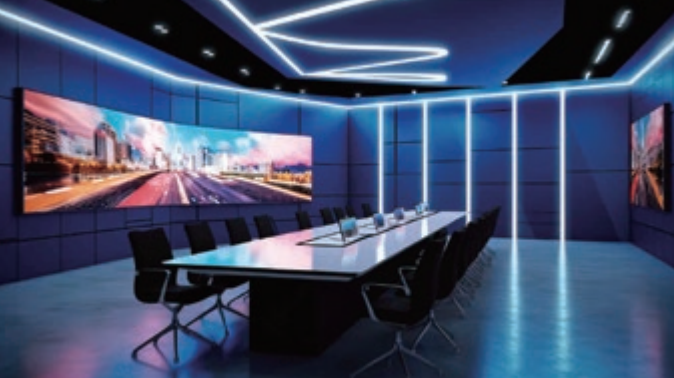

Meeting Room
Exhibition Centre
Item
Pixel Structure
Pixel Pitch(mm)
Module Resolution (WxH)
Module Dimension (mm) (WxHxD)
Module Weight (Kg)
Unit Area (m2)
Pixel Density (dots/m²)
White Balance Brightness (nits)
Color Temperature (K)
Horizontal Viewing Angle (°)
Vertical Viewing Angle (°)
Brightness Uniformity
Contrast Ratio
Single Module Power Consumption (W)
Power Supply Requirements (V)
Single Module Current (A)
Drive Mode
Frame Rate (Hz)
Refresh Rate (Hz)
Typical Lifespan Value (hours)
Working Temperature Range (°C)
Storage Temperature Range (°C)
Working Humidity Range (RH)
Storage Humidity Range (RH)
SV1.2
Full Flip - chip COB
1.25
256x128
320x160x14.3
0.5±0.05
0.0512
640000
≥550 (after calibration)
9300 adjustable
160
160
≥95%
≥10000:1
≤19
DC:4.5
4.0A
Constant current drive 64S
60
≥3840
100,000
-10~40
-20~60
10–80% without condensation
10–85% without condensation
SV1.5
Full Flip - chip COB
1.538
208x104
320x160x14.3
0.5±0.05
0.0512
422,500
≥550 (after calibration)
9300 adjustable
160
160
≥95%
≥10000:1
≤16
DC:4.5
3.6A
Constant current drive 52S
60
≥3840
100,000
-10~40
-20~60
10–80% without condensation
10–85% without condensation
SV1.8
Full Flip - chip COB
1.86
172x86
320x160x13.9
0.5±0.05
0.0512
288,906
≥550 (after calibration)
9300 adjustable
160
160
≥95%
≥10000:1
≤16
DC:4.5
3.6A
Constant current drive 43S
60
≥3840
100,000
-10~40
-20~60
10–80% without condensation
10–85% without condensation
SV1.2 Virtual Pixe
Full Flip - chip COB
1.25
256x128
320x160x14.3
0.5±0.05
0.0512
640000
≥500 (after calibration)
9300 adjustable
160
160
≥95%
≥10000:1
≤18
DC:4.5
3.6A
Constant current drive 64S
60
≥3840
100,000
-10~40
-20~60
10–80% without condensation
10–85% without condensation
