Leyard MG-2COB | COB Indoor Fine Pitch LED Display

Unmatched Clarity and Durability for Visual Excellence

Experience unparalleled visual quality with Leyard MG-2COB series indoor LED displays, designed to deliver unmatched clarity and durability. Leyard MG-2COB series is engineered for excellence, it offers vibrant colors, wider viewing angle and sharp details, ensuring that every image stands out with precision, ideal for high-end retail, corporate environments, and any space requiring superior visual performance.

PRO FEATURES

- Available in 0.46, 0.62, 0.78, 0.93, 1.25, 1.56, 1.87mm pixel pitch

- Front/rear installation and front access

- 16:9 cabinet in 600x337.5x40, cabinet is 4.5KG only

- Micro LED full flip-chip, high EO efficiency, reliability

- COB module, IP65

- Real and virtual pixel available

- Modules without bracket, attached to cabinet frame directly

Message

Product Highlights

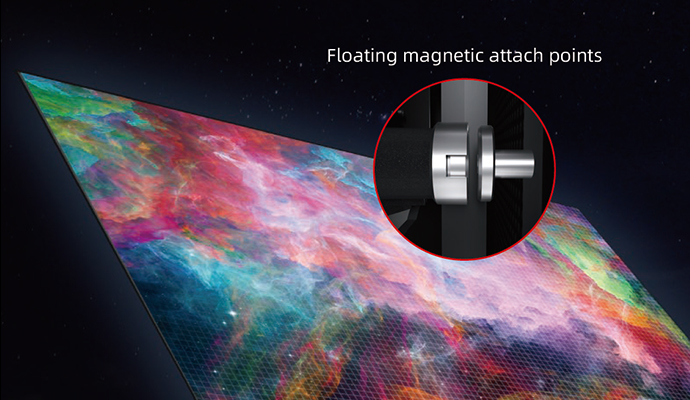

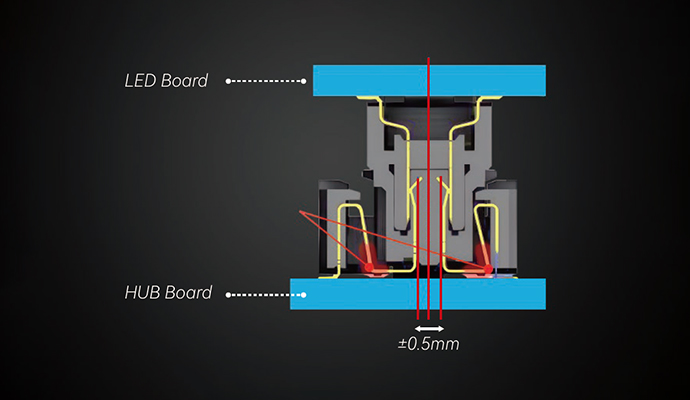

Floating Connectors

The time-proved connection method, introduced by Leyard into the LED display industry

Flat, From Modules to Displays

Experience of fine pixel pitch in decades, the superior performance

MicroLED High Brightness, High Contrast

MicroLED in 2000nits and 20000:1 contrast ratio

More Details at Low Brightness

The display is 16 bits to deliver high grayscales at low brightness area

HDR - High Dynamic Range

HDR content is in 10 bits, new gen MG can deliver a much bigger color volume than SDR LED display

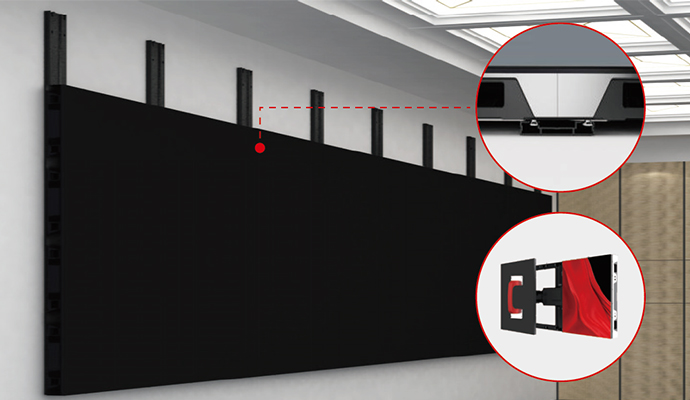

Front Access, Fast Installation

Multiple installation method, front/rear installation and front access

Solution

Leyard MG-2COB series indoor fine pitch LED displays are engineered for exceptional visual performance and reliability, ideal for environments demanding high-resolution and uninterrupted viewing. Its COB technology enhances durability, protecting against dust, moisture, and impact, while ensuring a seamless, bezel-free viewing experience. With their advanced design, Leyard MG-2COB series supports both front and rear installation, providing flexibility in various architectural settings and making them a top choice for premium indoor applications.

Application

Design Centre

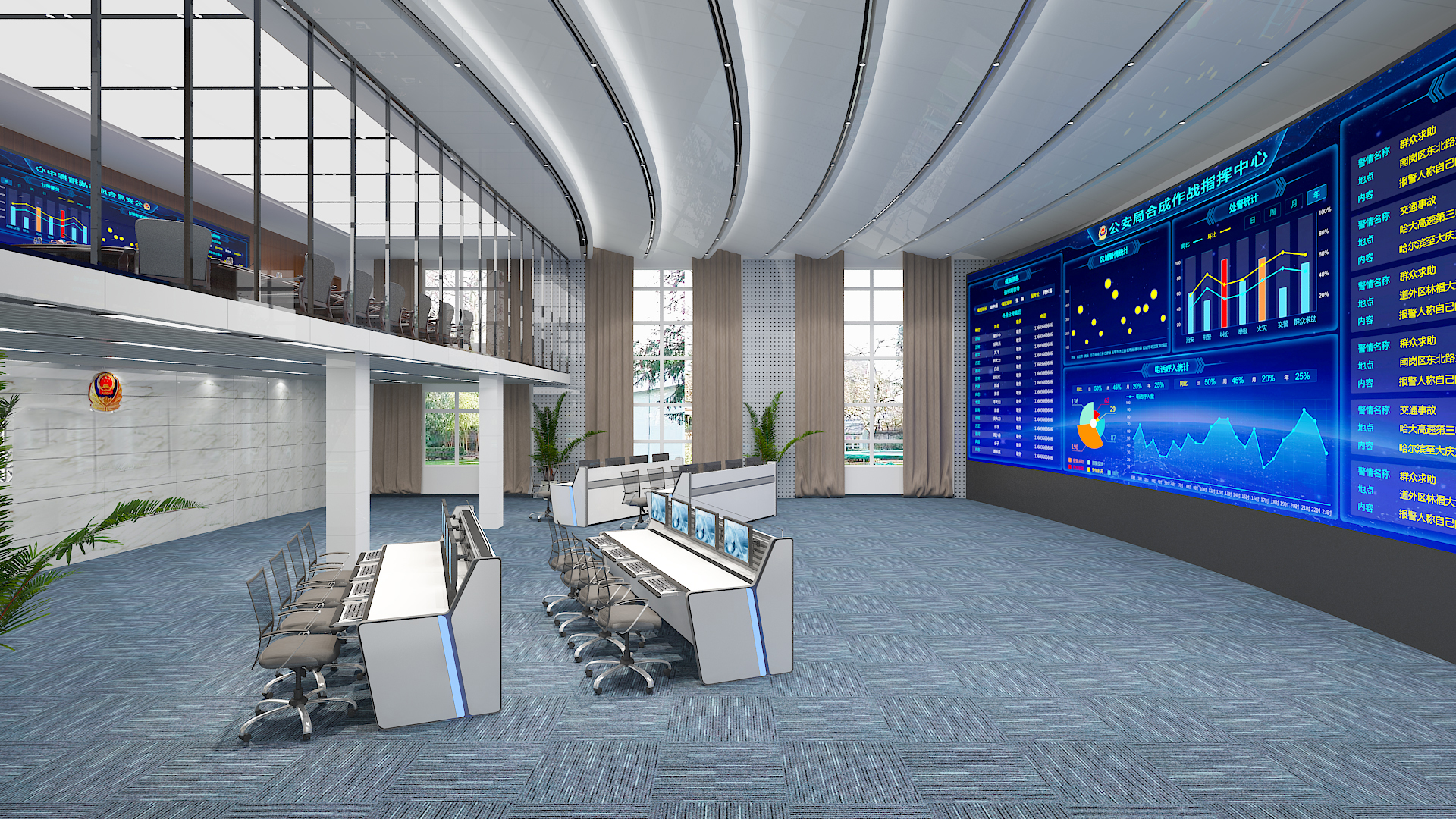

Control Centre

Broadcast

Conference Room

Exhibition Centre

Home Cinema

Specifications

MG0093-2COB(Essential)

MG0125-2COB(Essential)

MG0156-2COB(Essential)

MG0062-2COB(Ultra)

MG0078-2COB(Ultra)

MG0093-2COB(Ultra)

MG0125-2COB(Ultra)

MG0156-2COB(Ultra)

Item
Pitch Pitch (mm)
Cabinet Resolution(dots)
Cabinet Dimension (WxHxD, mm)
Pixel Density (Point/㎡)
Peak Brightness (nits)(after calibration)
Contrast Ratio
Max Power Consumption（W/㎡）
Ave Power Consumption（W/㎡）
Refresh Rate (Hz)
Lifetime (hrs)
Working Temperature (℃)
Working Humidity (RH)

                                                                                MG0093-2COB(Essential)

                                                                                0.93

                                                                                640*360

                                                                                600*337.5*39.9

                                                                                1,137,778

                                                                                700-800*

                                                                                25000:1

                                                                                505

                                                                                175

                                                                                1600-3840

                                                                                100,000

                                                                                -10 ~ 40

                                                                                10 ~ 80% no condensation

                                                                                MG0125-2COB(Essential)

                                                                                1.25

                                                                                480*270

                                                                                600*337.5*39.9

                                                                                640,000

                                                                                500-600*

                                                                                25000:1

                                                                                420

                                                                                125

                                                                                1600-3840

                                                                                100,000

                                                                                -10 ~ 40

                                                                                10 ~ 80% no condensation

                                                                                MG0156-2COB(Essential)

                                                                                1.56

                                                                                384*216

                                                                                600*337.5*39.9

                                                                                409,600

                                                                                500-600*

                                                                                25000:1

                                                                                395

                                                                                114

                                                                                1600-3840

                                                                                100,000

                                                                                -10 ~ 40

                                                                                10 ~ 80% no condensation

                                                                                MG0062-2COB(Ultra)

                                                                                0.62

                                                                                960*540

                                                                                600*337.5*39.9

                                                                                2,560,000

                                                                                1200-1300*

                                                                                30000:1

                                                                                575

                                                                                150

                                                                                1600-7680

                                                                                100,000

                                                                                -10 ~ 40

                                                                                10 ~ 80% no condensation

                                                                                MG0078-2COB(Ultra)

                                                                                0.78

                                                                                768*432

                                                                                600*337.5*39.9

                                                                                1,638,400

                                                                                1500

                                                                                30000:1

                                                                                480

                                                                                117

                                                                                1600-7680

                                                                                100,000

                                                                                -10 ~ 40

                                                                                10 ~ 80% no condensation

                                                                                MG0093-2COB(Ultra)

                                                                                0.93

                                                                                640*360

                                                                                600*337.5*39.9

                                                                                1,137,778

                                                                                1500

                                                                                30000:1

                                                                                467

                                                                                90

                                                                                1600-7680

                                                                                100,000

                                                                                -10 ~ 40

                                                                                10 ~ 80% no condensation

                                                                                MG0125-2COB(Ultra)

                                                                                1.25

                                                                                480*270

                                                                                600*337.5*39.9

                                                                                640,000

                                                                                700-800*

                                                                                30000:1

                                                                                265

                                                                                70

                                                                                1600-7680

                                                                                100,000

                                                                                -10 ~ 40

                                                                                10 ~ 80% no condensation

                                                                                MG0156-2COB(Ultra)

                                                                                1.56

                                                                                384*216

                                                                                600*337.5*39.9

                                                                                409,600

                                                                                700-800

                                                                                30000:1

                                                                                227

                                                                                61

                                                                                1600-7680

                                                                                100,000

                                                                                -10 ~ 40

                                                                                10 ~ 80% no condensation

Remark: Above data is subject to change without prior notice
