MGS Series Outdoor Fine Pitch LED Display

OUTDOOR FINE PITCH LED DISPLAY

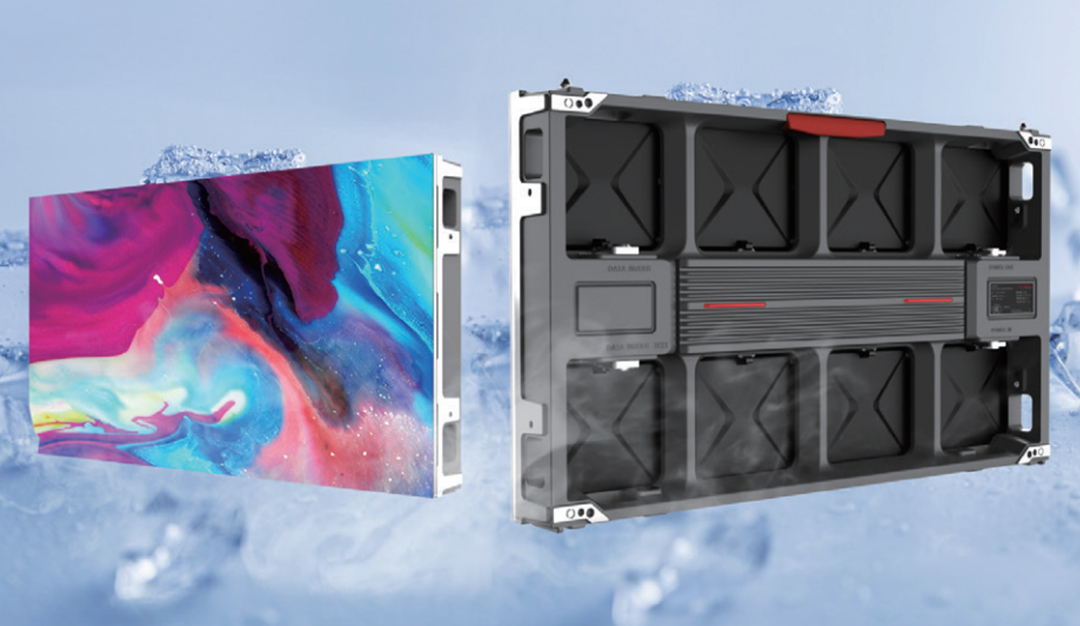

Leyard MGS series outdoor fine pixel pitch has the aluminum die-casting cabinet. The GOB is formed by a special hig-tech material for outdoor harsh evniornments. The product is solid for various application. There are numerious features inlcude the alu frame structure, effecitve heat management, low power consumption, IP65, MicroLED technology with full flip chip packaging, the visual performance is more than the imagination.

KEY FEATURES

> Micro LED Full Fip Chip > Redundancy Power/ Data

> Eco and Green > High Contrast

> Front/ Rear Installation > HDR Ready

> IP65 > Mechnical Safety Lock

> Wide Viewing Angle > Efective Heat Management

> 6 Axis Adjustment > High Refresh Rat

Message

Product Highlights

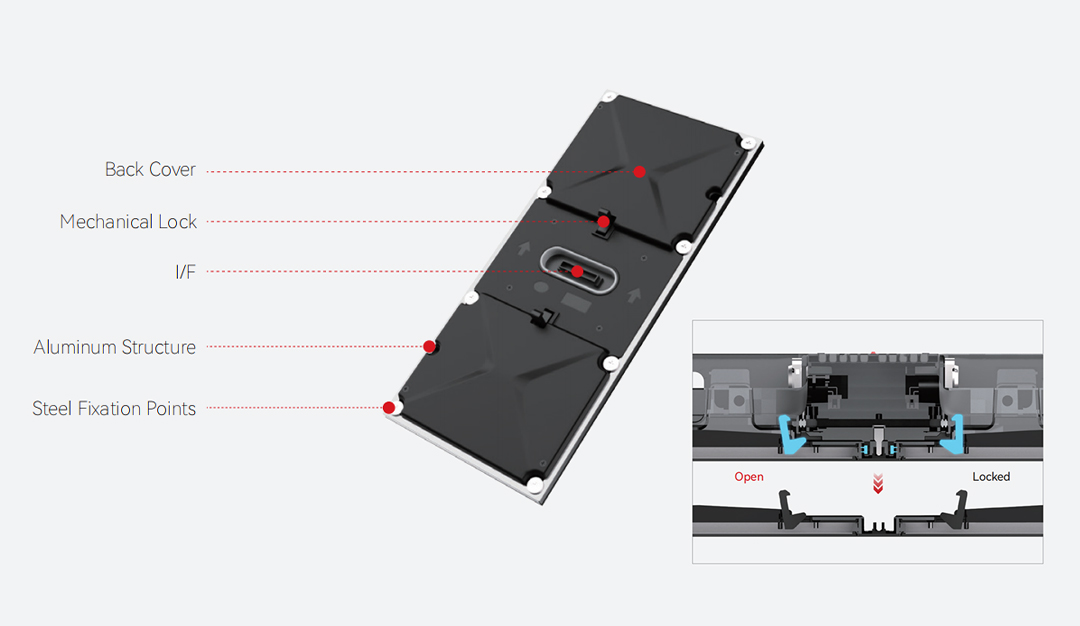

Solid - The Module and the Safety System

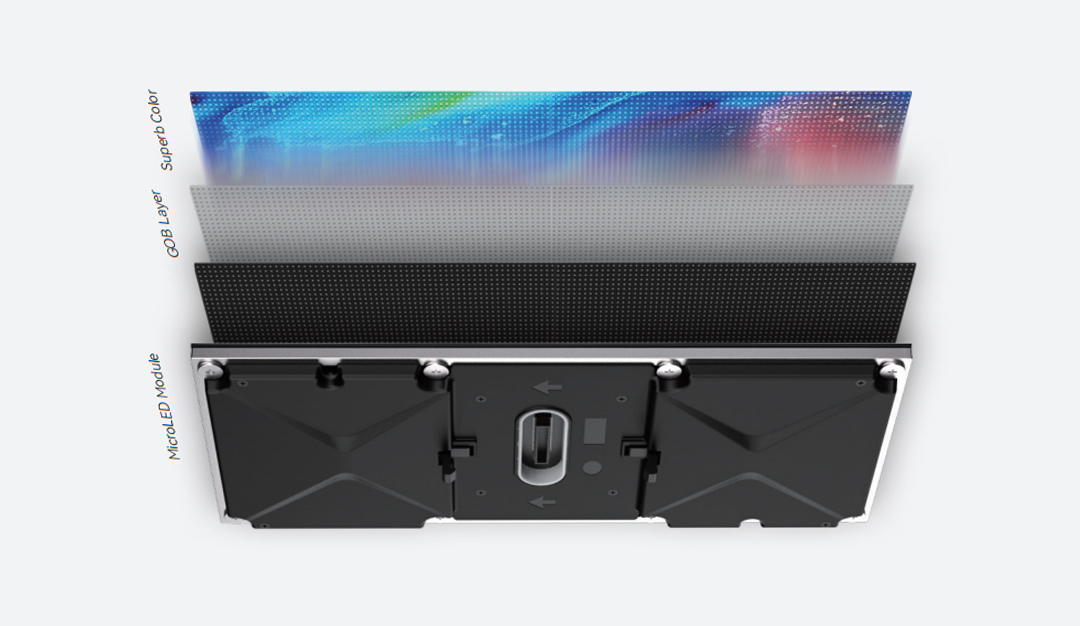

LED module is GOB protected, with the aluminum frame. The lock system is with double safety setup, the magnectic + special lock, to be used in various harsh enviornments.

CPL - Completely Protective Layout

Completely protective layout achieve Front/ Back IP65 via speical polymers epoxy coated on the LED module surface, top/ side and back.

Effective Heat Management

Less than 40 degree when play a video @600nits setting; 30% lower power consumption; Micro LED to deliver the great visual performance; TUV low blue light radiation

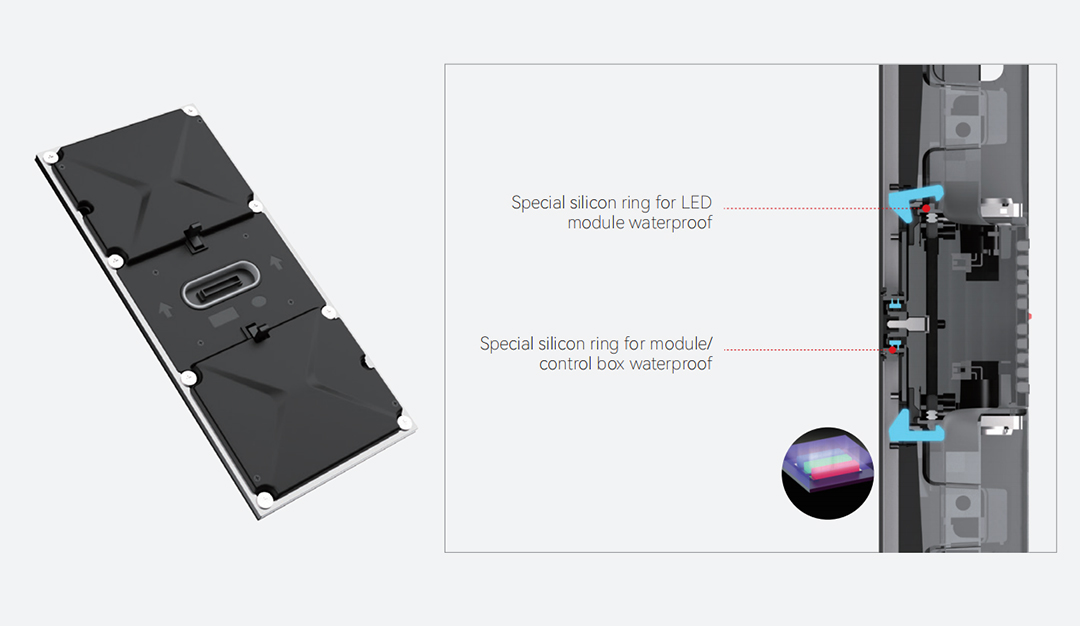

Heat Sinker + High Co-efficency Cilicon O-ring

MicroLED is in full flipchip package. The light efficency is super high. GOB to protect both the front and back for uniform heat dissapation. 3 ventilation tunnels inside of the products for better color uniformity and heat management.

High Refresh Rate, High Contrast Ratio

10000:1 Contrast Ratio
16bit Grayscale
3840Hz Refresh Rate

HDR - High Dynamic Range images

More dynamic range and image detail utilizes the best detail for each exposure time relative to the LDR image to synthesize the final HDR image. Can better reflect the real environment in the visual effects. Each pixel has not only the normal RGB information, but also the actual brightness information of that point. The light surface is fully sealed, the point light source becomes surface light source, the diffusion is uniform, and the view angle can be greatly increased.

Solution

Leyard MGS series outdoor fine pixel pitch has the aluminum die-casting cabinet. The GOB is formed by a special hig-tech material for outdoor harsh evniornments. The product is solid for various application. There are numerious features inlcude the alu frame structure, efecitve heat management, low power consumption, IP65, MicroLED technology with fip chip packaging, the visual perormance is more than the imagination.

Application

Retails Advertising Screen

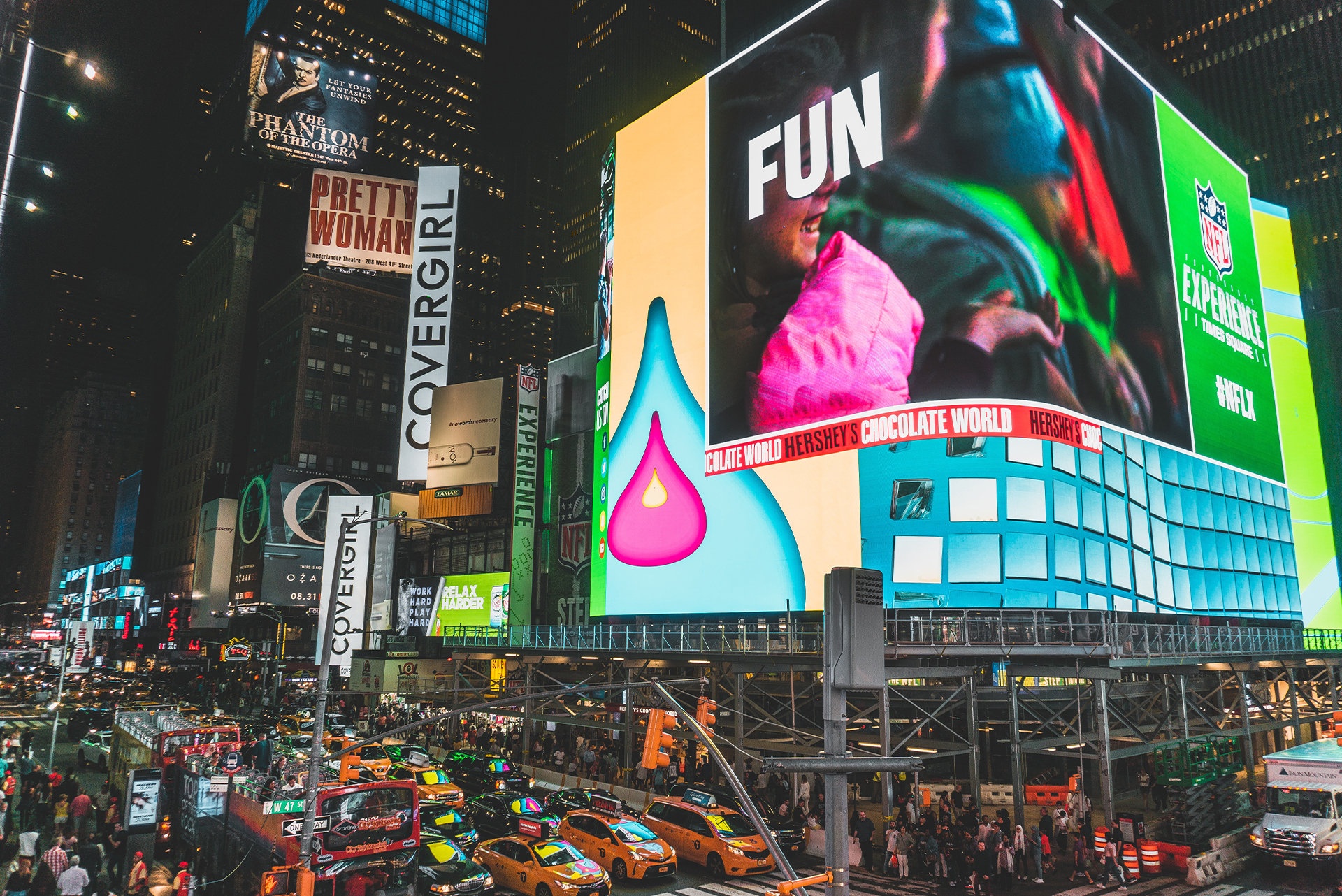

Outdoor Advertisment Billboard
Naked-eye 3D Outdoor LED Screen
Building Facades Screen
City Centre
Sports Venues

Specifications

MGS1.2

MGS1.5

MGS1.8

Item
Pixel Configuration
Pitch (mm)
Module Resolution (WxH)
Module Size (mm)(WxH)
Module Composition (WxH)
Panel Resolution
Panel Dimension (WxHxD, mm)
Unit Area (㎡)
Pixel Density (pixel/㎡)
Brightness (nits) (after calibration)
H/V Viewing Angle (°)
Contrast Ratio
Max. Power Consumption (W/cabinet; W/㎡)
Avg. Power Consumption (W/cabinet; W/㎡) (300nit)
Power Supply Configuration
Drive Mode
Refresh Rate (Hz)
IP Level (front/ rear)
Operation/Storage Temperature (℃
Operation/Storage Humidity (RH)

                                                                                MGS1.2

                                                                                Full Flip Chip 3in1

                                                                                1.25

                                                                                128x288

                                                                                160x360x20

                                                                                4x1

                                                                                512x288

                                                                                640x360x70

                                                                                0.2304

                                                                                640,000

                                                                                3000 ~ 4000 *

                                                                                170 / 170

                                                                                10000:1

                                                                                150; 651

                                                                                50; 217

                                                                                Single power supply (dual power supply optional)

                                                                                Constant current PWM driving

                                                                                3840

                                                                                IP65

                                                                                -20~40 / -30~60

                                                                                10~80% no condensation / 10~85% no condensation

                                                                                MGS1.5

                                                                                Full Flip Chip 3in1

                                                                                1.53

                                                                                104x232

                                                                                160x360x20

                                                                                4x1

                                                                                416x232

                                                                                640x360x70

                                                                                0.2304

                                                                                418,888

                                                                                3000 ~ 4000 *

                                                                                170 / 170

                                                                                10000:1

                                                                                150; 651

                                                                                50; 217

                                                                                Single power supply (dual power supply optional)

                                                                                Constant current PWM driving

                                                                                3840

                                                                                IP65

                                                                                -20~40 / -30~60

                                                                                10~80% no condensation / 10~85% no condensation

                                                                                MGS1.8

                                                                                Full Flip Chip 3in1

                                                                                1.86

                                                                                86x192

                                                                                160x360x20

                                                                                4x1

                                                                                344x192

                                                                                640x360x70

                                                                                0.2304

                                                                                286,666

                                                                                3000 ~ 4000 *

                                                                                170 / 170

                                                                                10000:1

                                                                                150; 651

                                                                                50; 217

                                                                                Single power supply (dual power supply optional)

                                                                                Constant current PWM driving

                                                                                3840

                                                                                IP65

                                                                                -20~40 / -30~60

                                                                                10~80% no condensation / 10~85% no condensation

Remark: Above data is subject to change without prior notice
