DOOH HIGH BRIGHTNESS LED DISPLAY

Digital signage has animations in bright colors that make the message impactful. Digital signage can display still images and video content, and even interact with touchscreen displays.
HIGHLIGHT FEATURES

> High Brightness

> Ultra-Slim and Ultra-Light

> 100% Front or Back Maintenance

> Front Side Installation

> All Weather Proof

Message

Product Highlights

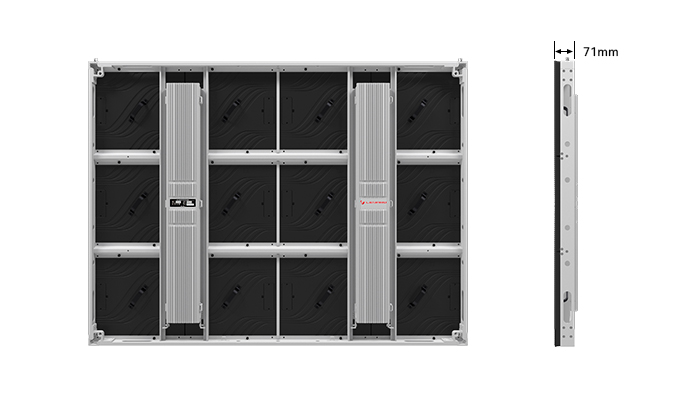

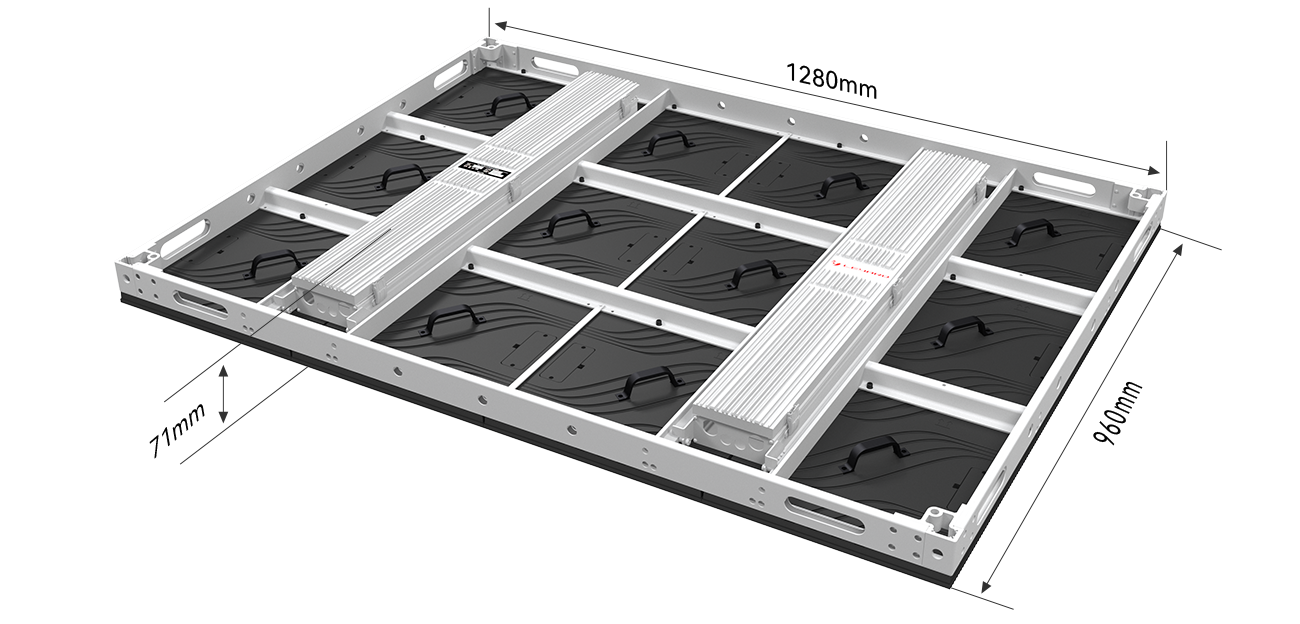

Ultra-Slim and Ultra-Light

Compared with traditional fixed LED displays, sprinter with aluminum panel is of good precision and hardness and permits a reduction 54% in thickness and 42% in weight, which greatly improves operation, and labor saving.

> Ultra-light: 28Kg/sqm
> Ultra-slim: 71mm
> Than traditional cabinet: 54% Thinner
> Than traditional cabinet: 42% Lighter

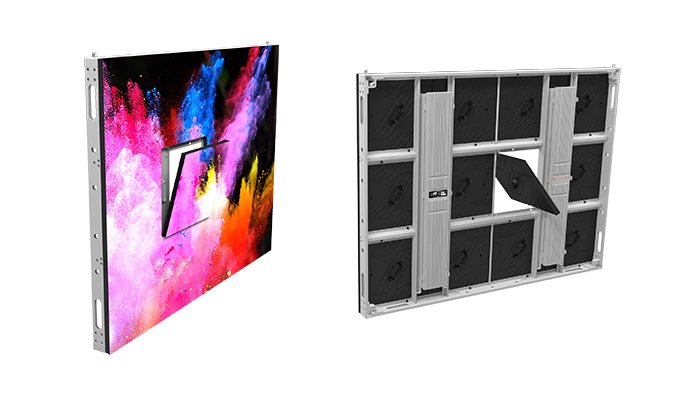

​100% Front or Back Maintenance

Single power control box is designed for fast, simple and efficient maintenance, comparing with the traditional power control box with several doors, more flexible and faster.

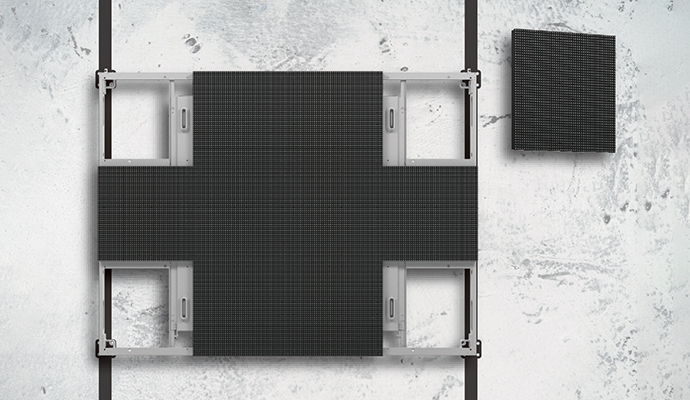

Front Side Installation

The display can be installed close to the wall to spare space, which can fit in multiple installation conditions.

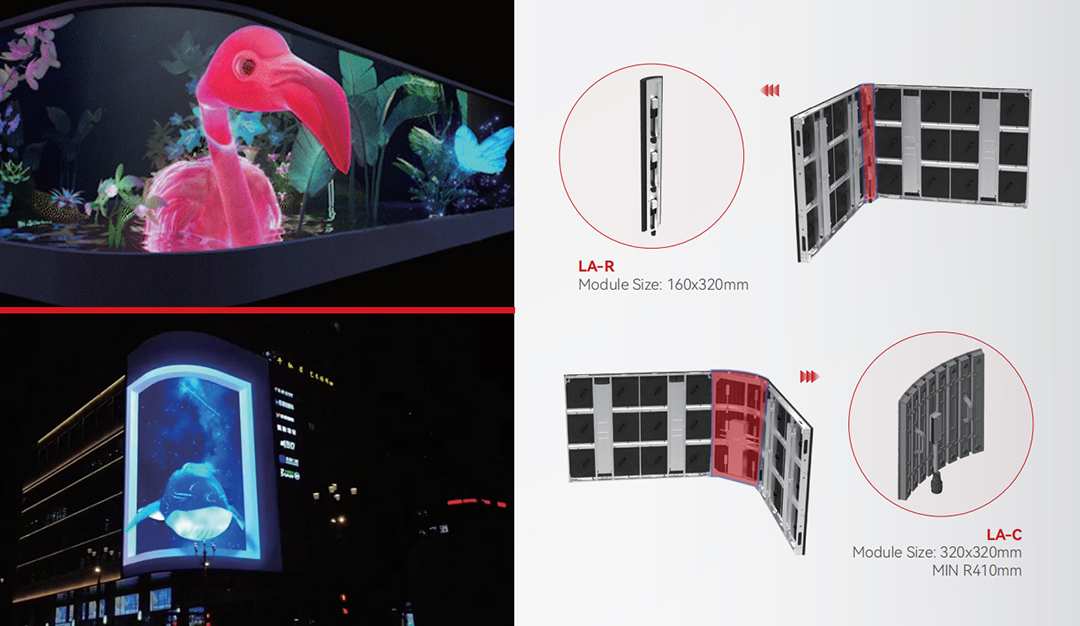

Standard Curved Cabinet

Curved cabinets can be used for large outdoor naked-eye 3D LED screen projects.

All Weather Proof

> Low temperature resistant design, working temperature is -30℃-60℃.
> No need any AC, saving your operation cost.
> Double waterproof design, both cabinet and module are waterproof, the waterproof rating is IP65/ IP65.

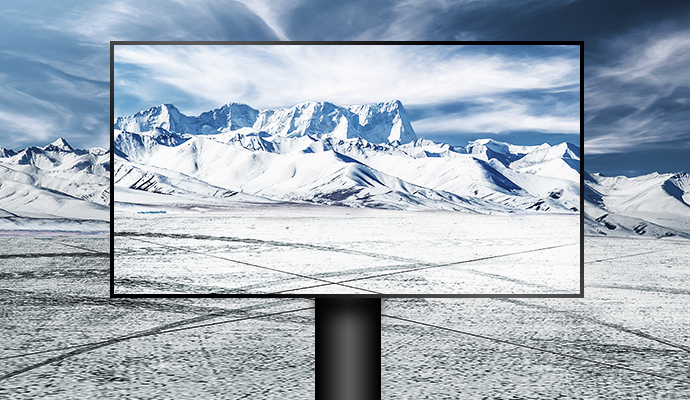

​High Brightness

The high brightness outdoor display ensures vivid and clear images quality even in the bright sunlight and fits both day and night. Brightness up to 7000nits; Lower power consumption, take LA10S as an example, it saves 25% power than traditional cabinet, average power is only 200W/㎡.

Solution

Leyard LA is the latest generation of Leyard outdoor fixed installation LED cabinet, It uses a new aluminum profile for the light, thin structure of the cabinet. Digital signage has animations in bright colors that make the message impactful. Digital signage can display still images and video content, and even interact with touchscreen displays.

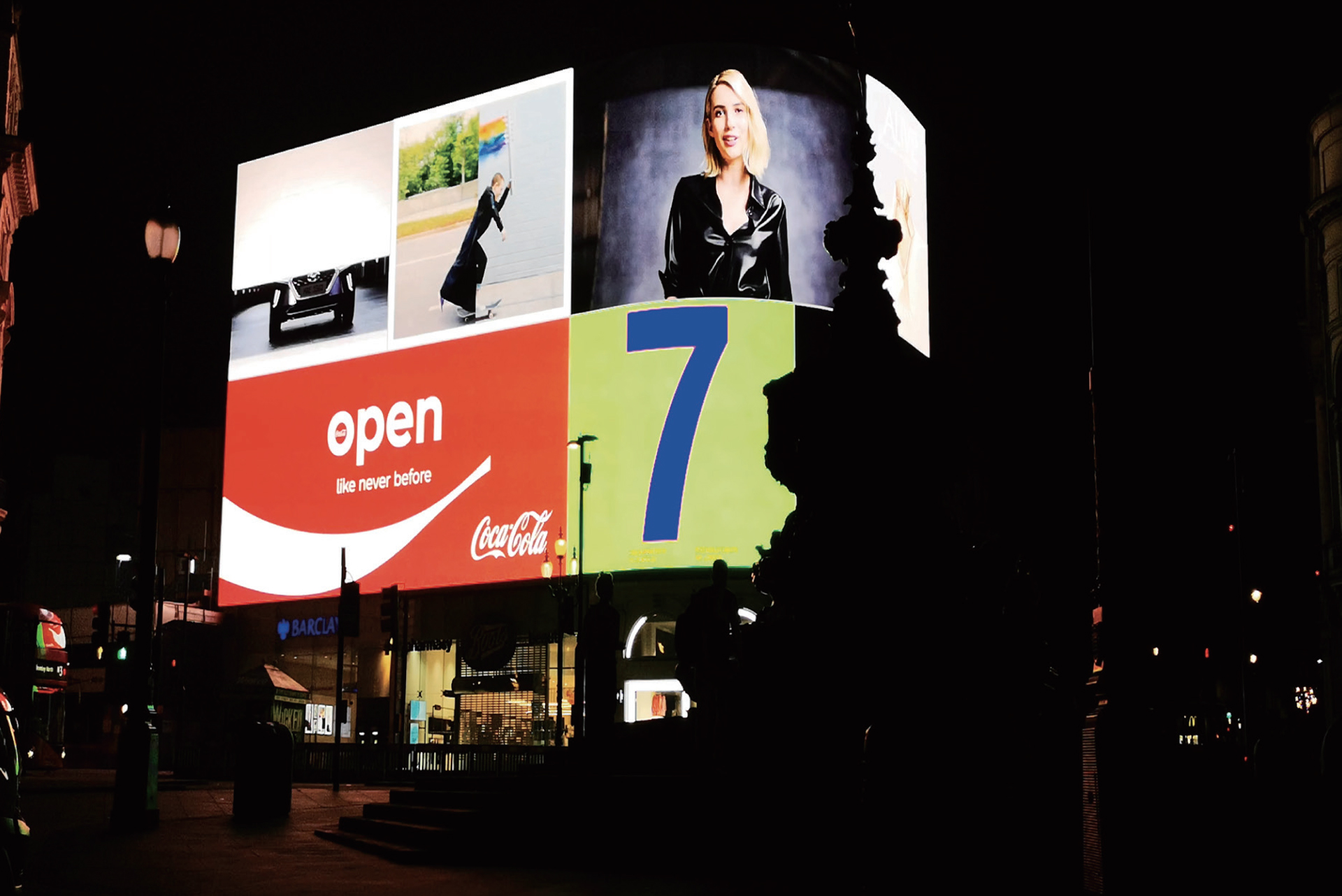

Application

Commercial Street

Shopping Mall

Office Building

Sports Events

Train Station

Pedestrian Street

Subway Station

Central Park

See More
Specifications
LA04S
LA06S
LA10S

Item

LED Configuration

Pixel Pitch

Cabinet Dimension

Brightness (nits)

Refresh Rate @60Hz

Cabinet Resolution (WxH)

IP Level

Viewing Angle (horiz; vert) °

Installation

Maintenance

Weight (kg/cabinet; kg/㎡)

Color Temperature (K)

Operating/Storage Temp (℃)

Operating/Storage Humidity (RH)

Power Consumption(max; avg)/㎡

LA04S

SMD

4.44

Standard: 1280x960x71mm (Optional: 1280X640 / 640X960 / 640X640)

6000

≥3840

288x216

IP65 Front/Rear

150; 110

Front/Rear

Front/Rear access

35; 28

3000~10000

-30~60; -40~60

10~90%; 10~80%

720W; 240W

LA06S

SMD

6.67

Standard: 1280x960x71mm (Optional: 1280X640 / 640X960 / 640X640)

7500

≥3840

192x144

IP65 Front/Rear

150; 110

Front/Rear

Front/Rear access

35; 28

3000~10000

-30~60; -40~60

10~90%; 10~80%

790W; 265W

LA10S

SMD

10

Standard: 1280x960x71mm (Optional: 1280X640 / 640X960 / 640X640)

7500

≥3840

128x96

IP65 Front/Rear

150; 110

Front/Rear

Front/Rear access

35; 28

3000~10000

-30~60; -40~60

10~90%; 10~80%

790W; 265W

Remark: Above data is subject to change without prior notice
