MiniBoxⅡ Series Fine Pitch LED Display Module Type-C Connector

AN INNOVATIVE FINE PITCH LED DISPLAY MODULE SERIES

Integrated | Intelligent | Type-C

PRO FEATURES

320×160mm / 320×180mm Available
Type-C Connector (Power&Signal) 2 in 1
DTL Transmission Protocol
Self-Developed Chip - LYD168
Intelligent Controller M16
Excellent Cooling System
Support HDR Display
Customizable Right-angle Seamless Splicing

Message

Product Highlights

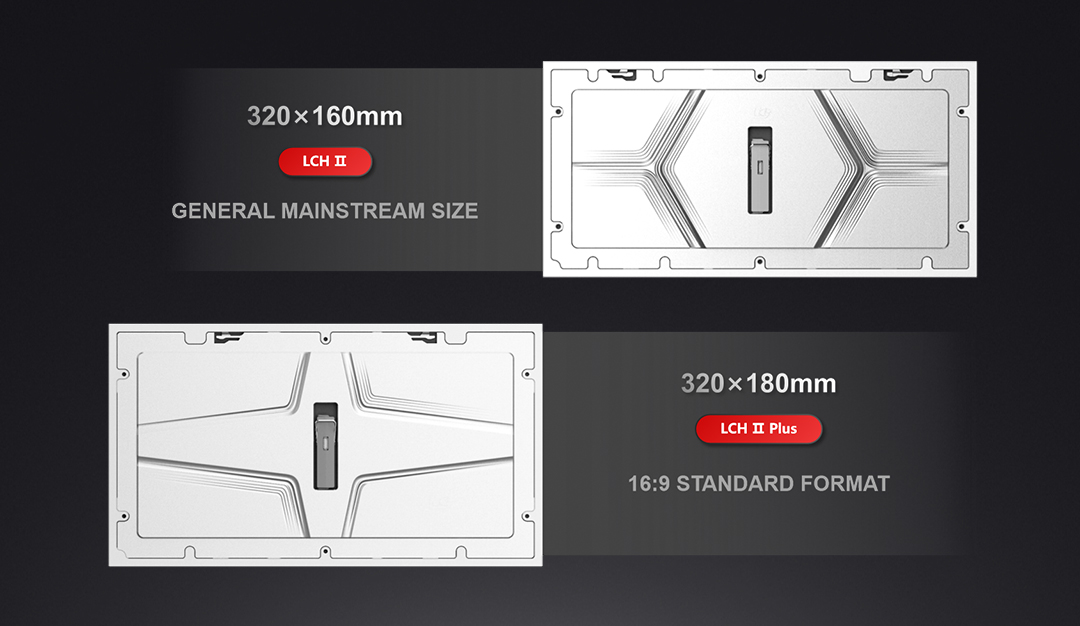

Two Sizes Available

320×160mm / 320×180mm LED module dimensions optional

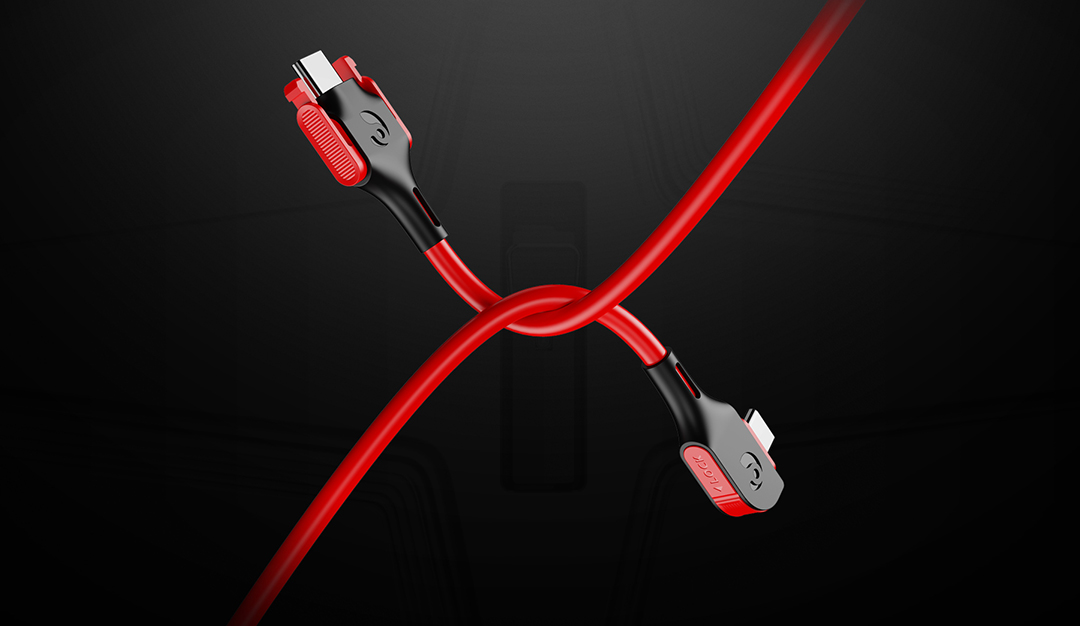

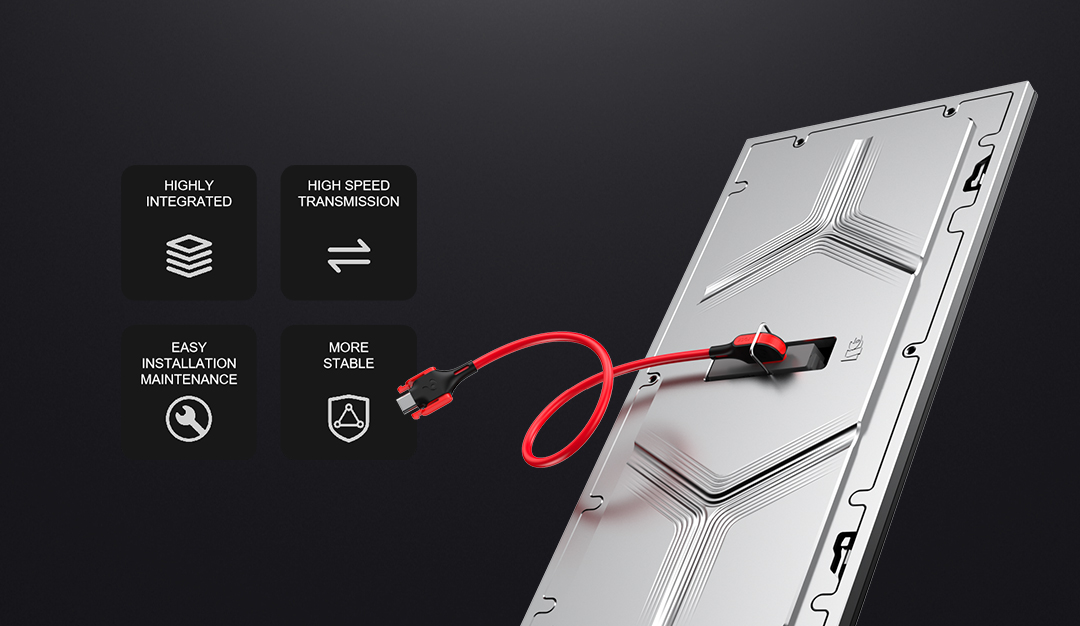

Type-C Connector

> Highly integrated
> High speed transmission
> Easy installation maintenance
> More stable

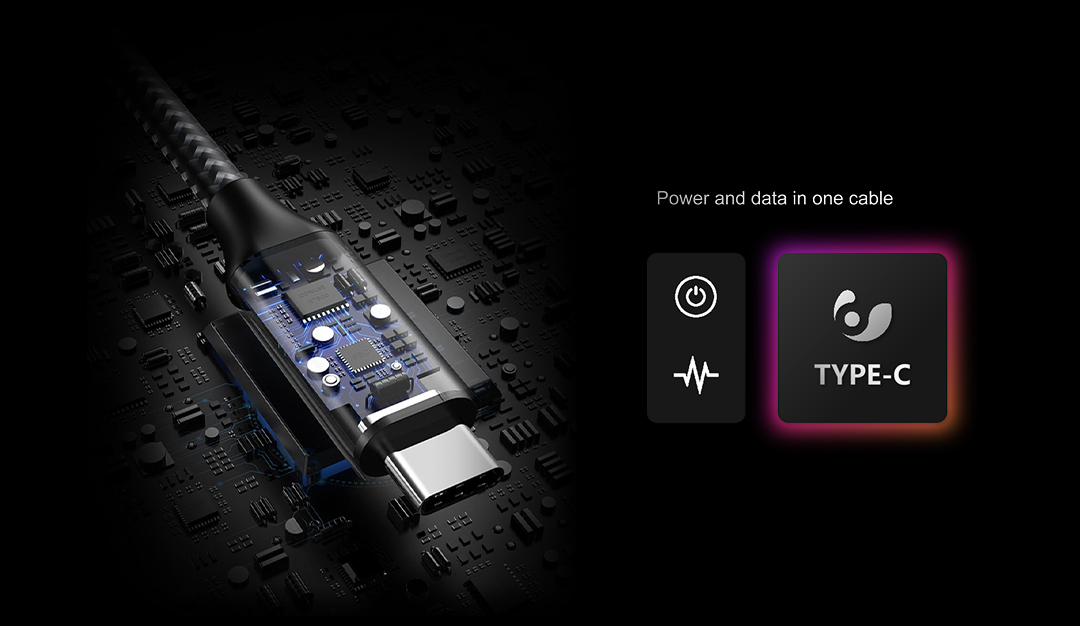

Highly Integrated

> 2 in 1 (Power & Signal)
> Stronger Stability
> Easier to install

More Convenient Connection

It is more convenient to insert the cable’s connector into the port of LED module without distinguishing the correct direction.

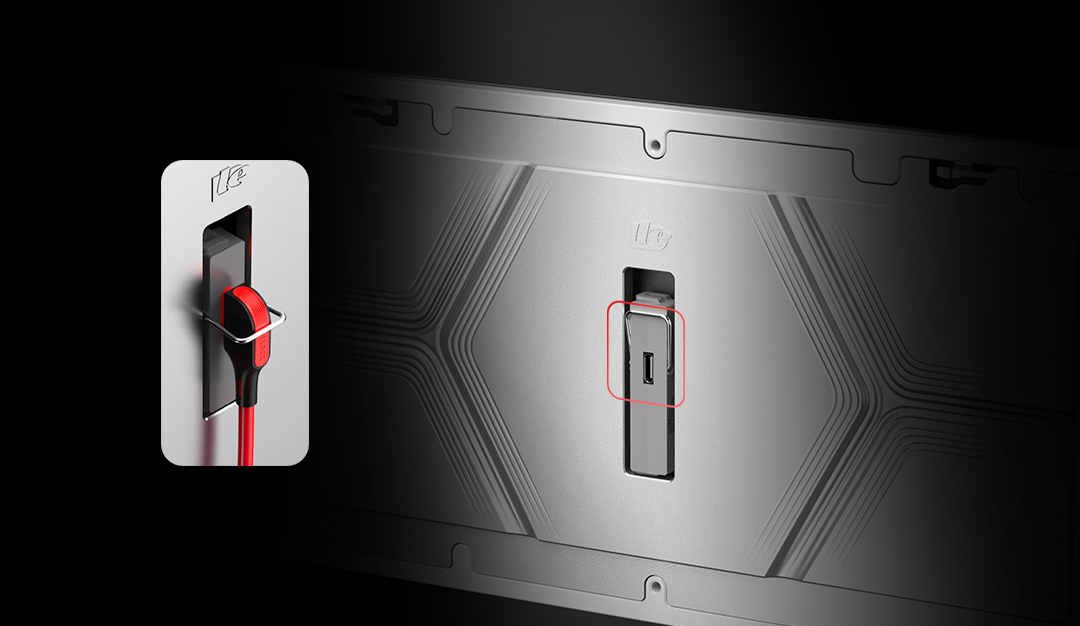

Safety Buckle Design

Safety buckle design of the module’s back cover which locks the connector position to ensure that the cables are secure and no loose.

Self-developed Chip LYD168

Strong anti-electromagnetic interference ability, featuring with intelligent set up, smart color-temp adjustment, smart brightness adjustment, intelligent data storage, etc.

DTL Transmission Protocol

Self-developed DTL transmission protocol for intelligent data transmission USB3.1, more efficient and stable

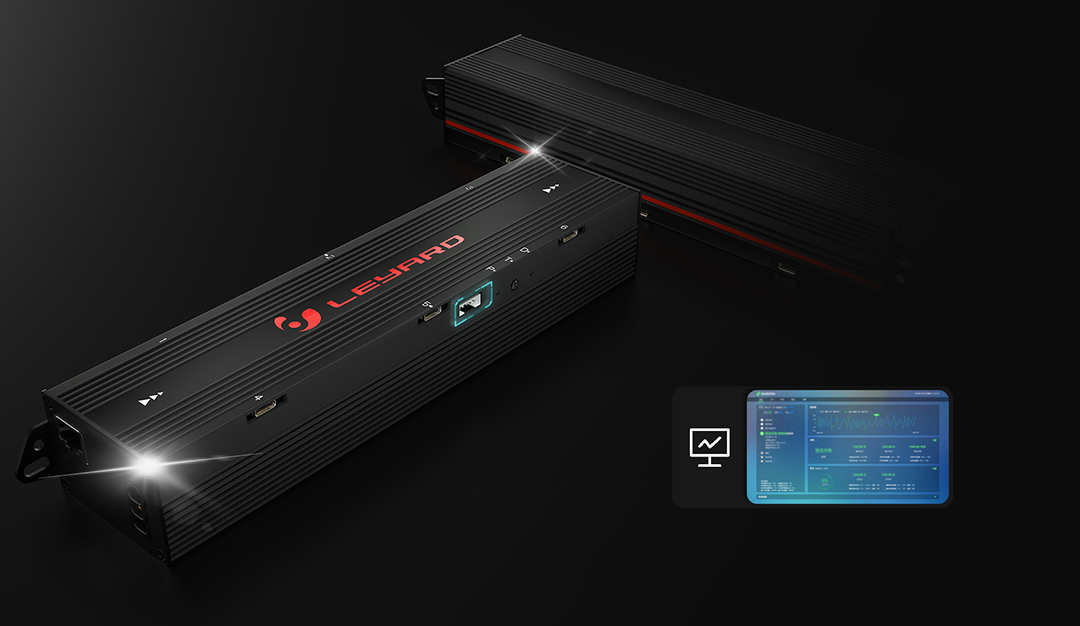

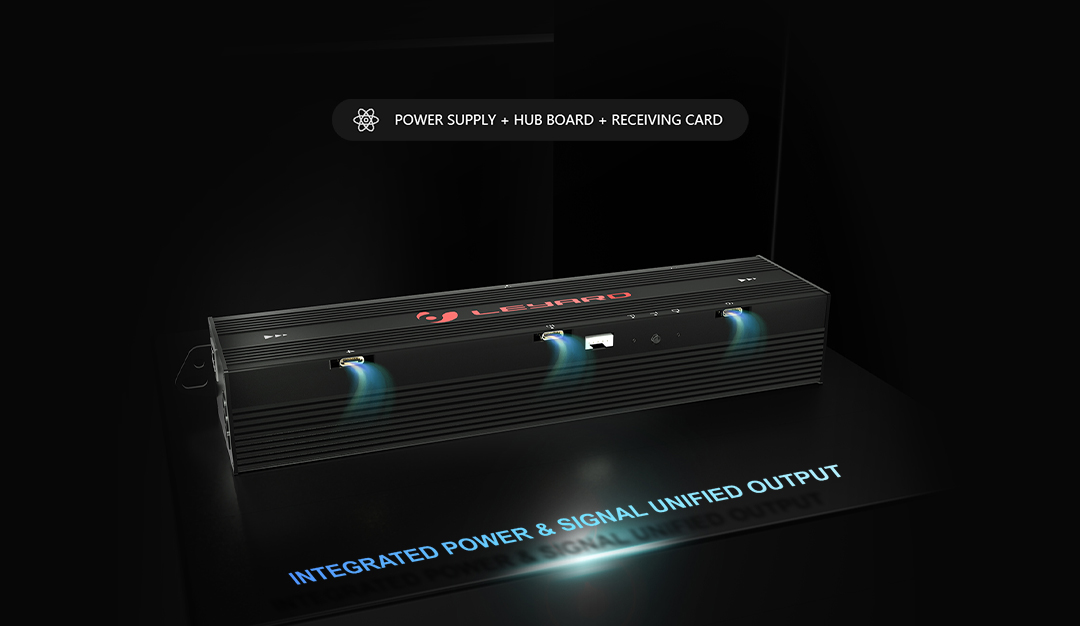

Intelligent Controller M16

Hardware integrated: power supply + HUB board + receiving card. Integrated power & signal unified output

Detection & Protection

> Intelligent voltage detection
> Intelligent over-current, over-voltage and over-temperature protection
> All aluminum frame, excellent heat dissipation

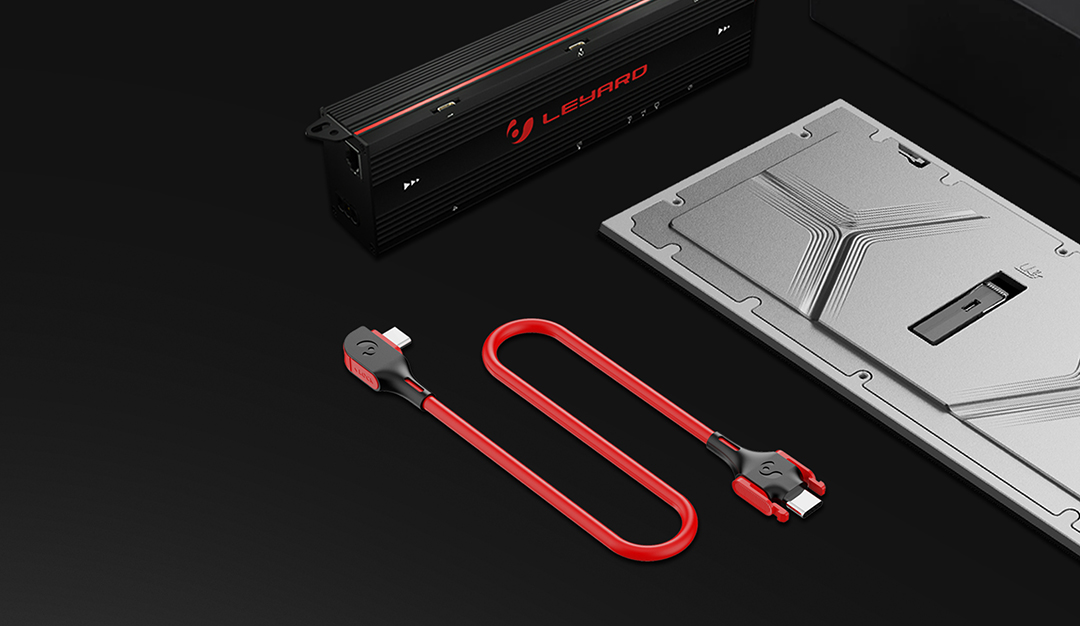

Professional LED Display Kit

> MiniBox Ⅱ LED Modules
> Intelligent Control Box M16
> Type-C Cable (Power&Data All in One)

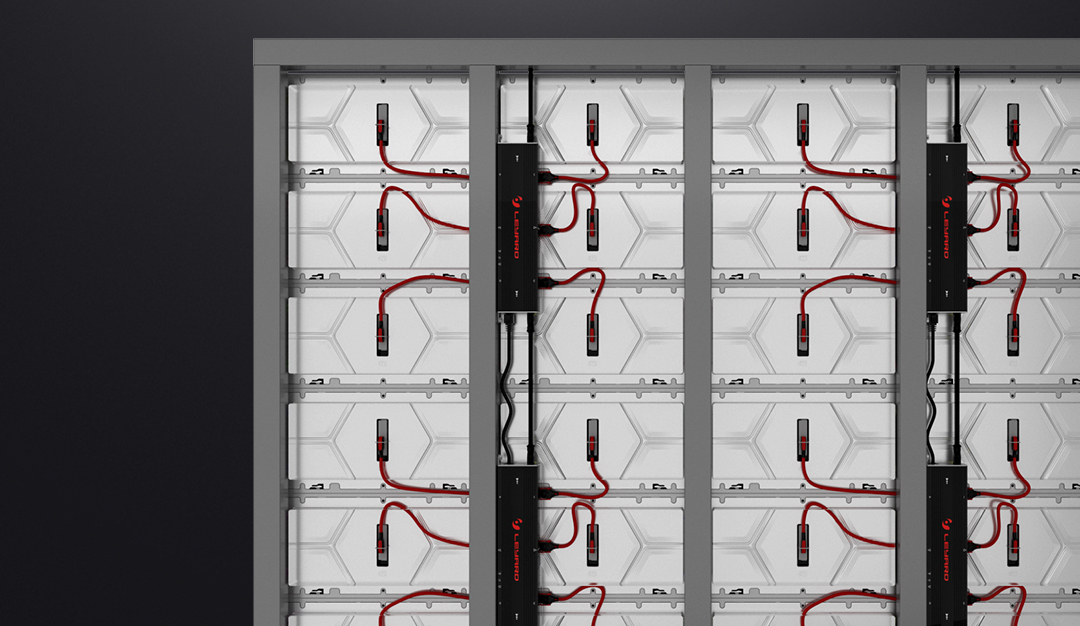

Simplify Installation

> Designed for easier installation and greatly improve its efficiency of the whole engineering process.
> Note: The order of connecting modules is according to the serial number marked on the ports of the intelligent controller M16.

Support 3D/HDR Display

> Compared with ordinary images, MiniBox Ⅱ can provide more dynamic range and image details. According to LDR (Low-Dynamic Range) images with different exposure times.
> And use the best details of the LDR image corresponding to each exposure time to synthesize the final HDR image, which can better reflect the visual effect in the real environment.

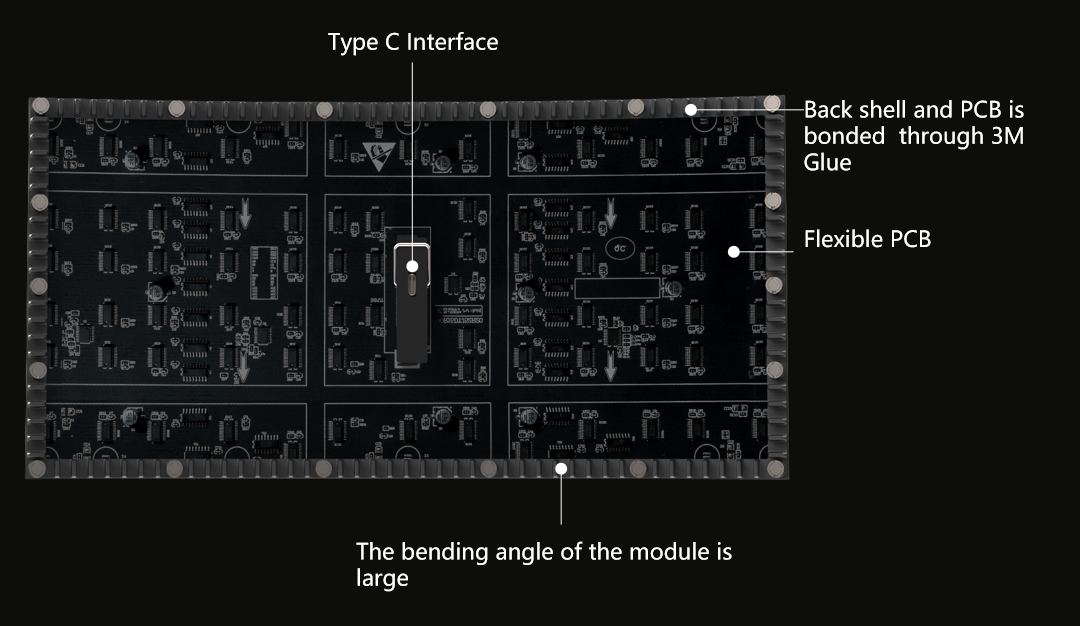

Flexible Module With Type C Interface

Power & Data All in One Port

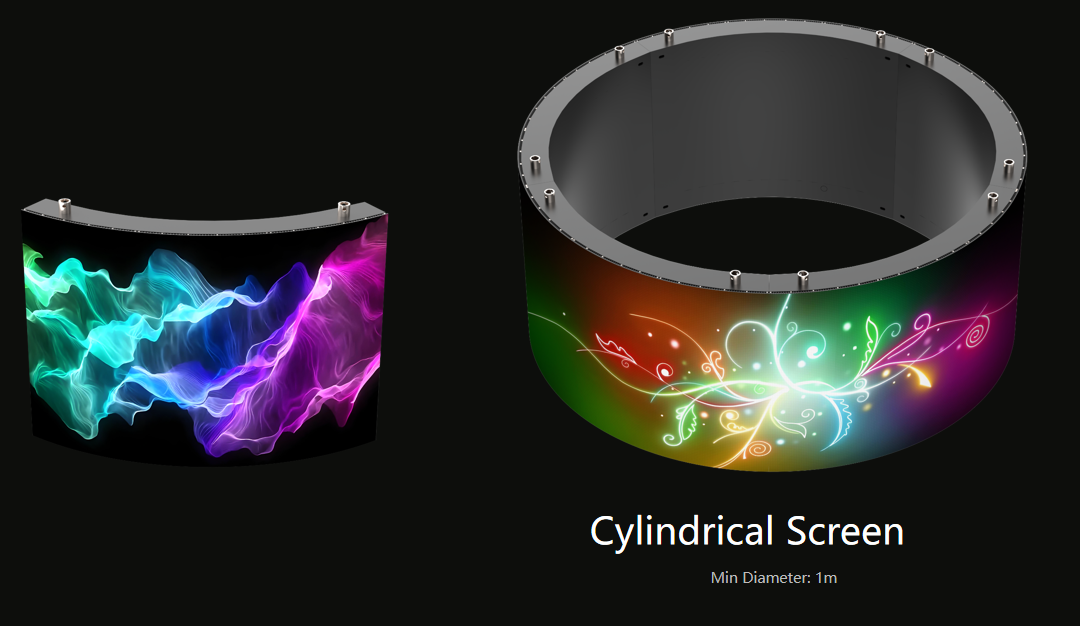

Cylinder Wall

The Minimum Diameter Can be 1m Formed by LCH II Flex

Solution

MiniBox II is a new generation of LED display products independently developed by Leyard, adopting the industry's first Type-C connector, combining the power and signal cables into one, with faster data transmission efficiency and stability. It is more convenient to insert the cable’s connector into the port of LED module without distinguishing the correct direction. MiniBox II also highly integrates the power supply, adapter board, and receiving card to create the intelligent controller M16, which makes the maintenance and upgrading become simpler, designed for easier installation and greatly improve its efficiency of the whole engineering process.

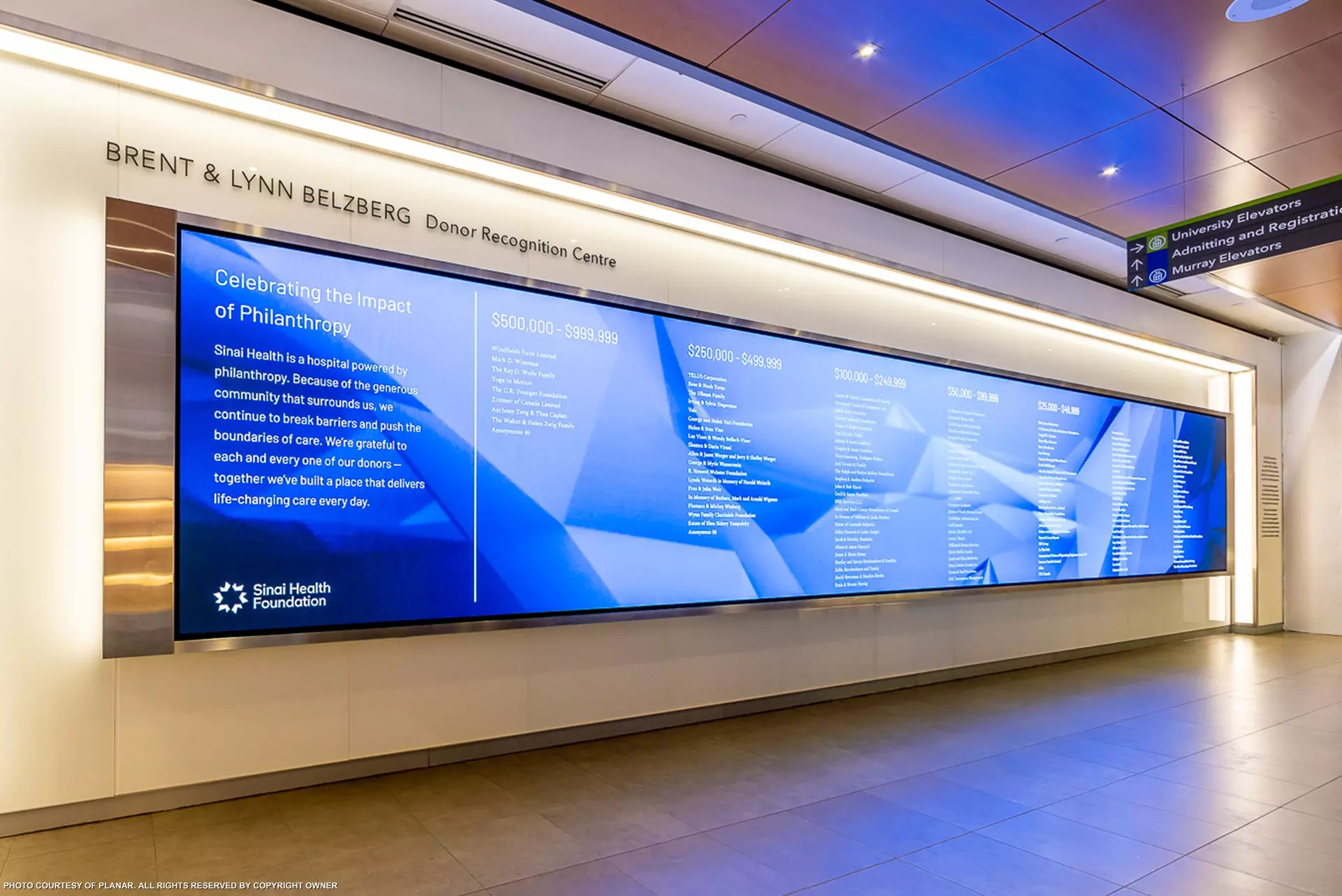

Application

Design Centre

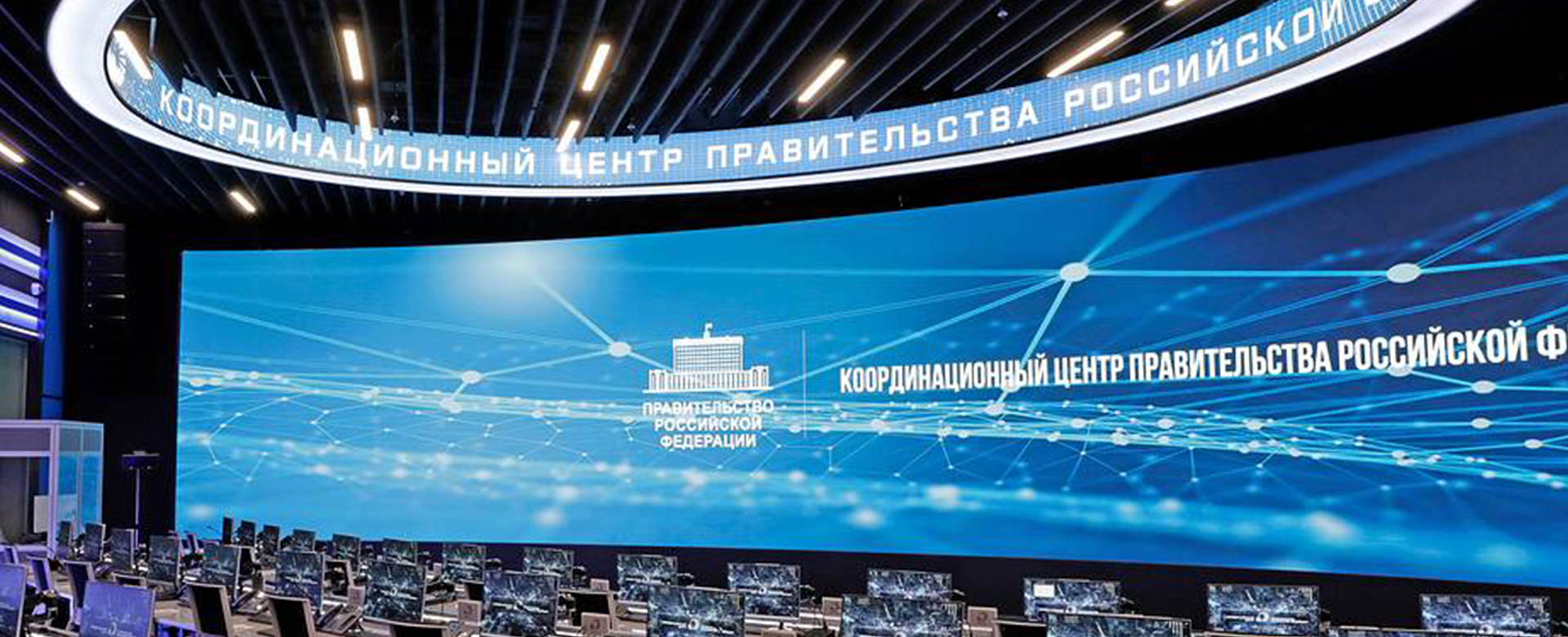

Control Centre

Broadcast

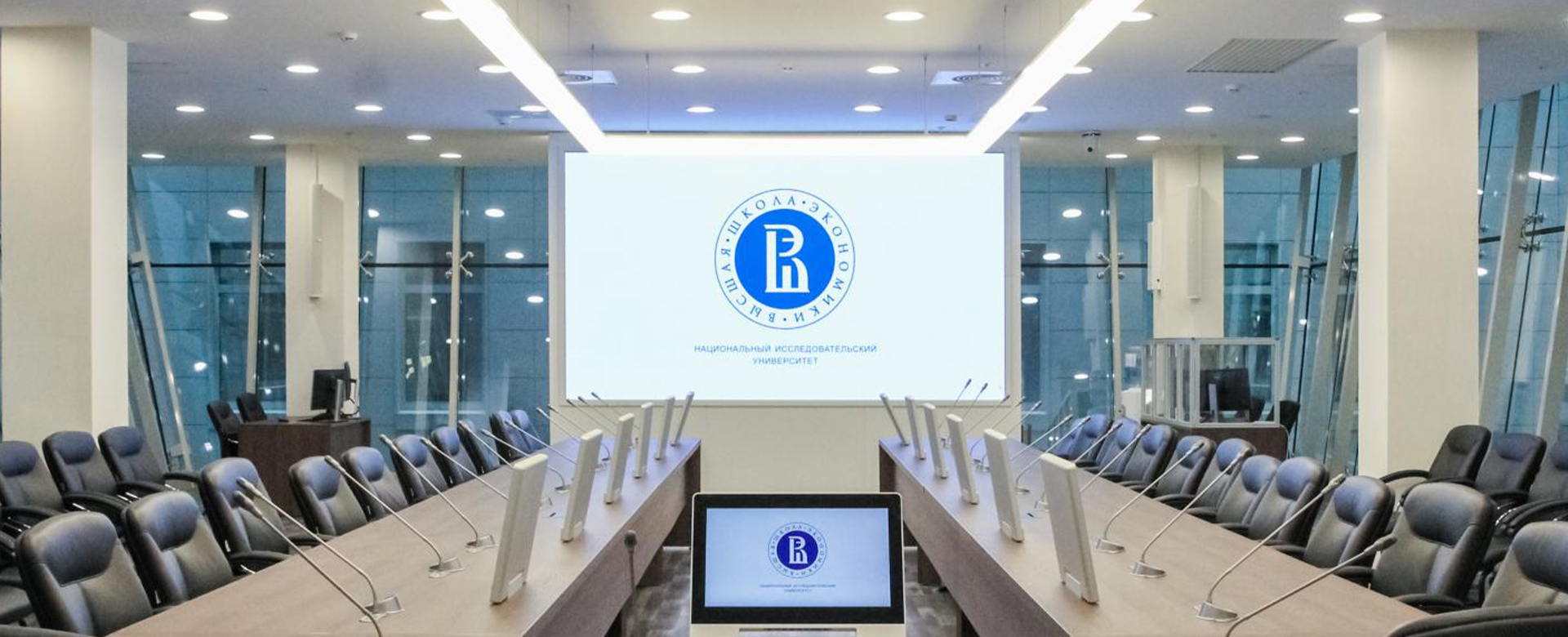

Conference Room

Exhibition Centre

Home Cinema

Specifications

LCH1 Ⅱ

LCH1.2 Ⅱ

LCH1.5 Ⅱ

LCH1.8 Ⅱ

LCH2 Ⅱ

LCH2.5 Ⅱ

LCH1 Ⅱ Plus

LCH1.2 Ⅱ Plus

LCH1.5 Ⅱ Plus

LCH1.8 Ⅱ Plus

LCH2 Ⅱ Plus

LCH2.5 Ⅱ Plus

LCH1 Ⅱ Flex

LCH1.2 Ⅱ Flex

LCH1.5 Ⅱ Flex

LCH1.8 Ⅱ Flex

LCH2 Ⅱ Flex

LCH2.5 Ⅱ Flex

Item
Pitch (mm)
Module Resolution (WxH)
Module Size (mm)(WxH)
Module Weight(Kg)
Pixel Density
Brightness (nits)
Color Temperature (K)
Contrast Ratio
MAX./AVG Power Consumption (W/㎡)
Drive Mode
Refresh Rate(Hz)
Operation/Storage Temperature (℃ )
Operation Humidity (RH)
Storage Humidity (RH)

                                                                                LCH1 Ⅱ

                                                                                1.0

                                                                                320x160

                                                                                320x160

                                                                                0.57±0.05

                                                                                1,000,000

                                                                                ≥550

                                                                                3000~38000 Adjustable

                                                                                8000:1

                                                                                ≤430 / ≤144

                                                                                Constant Current Drive 54S

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH1.2 Ⅱ

                                                                                1.25

                                                                                256x128

                                                                                320x160

                                                                                0.57±0.05

                                                                                640,000

                                                                                ≥550

                                                                                3000~38000 Adjustable

                                                                                8000:1

                                                                                ≤430 / ≤144

                                                                                Constant Current Drive 64S

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH1.5 Ⅱ

                                                                                1.53

                                                                                208x104

                                                                                320x160

                                                                                0.57±0.05

                                                                                422,500

                                                                                ≥500

                                                                                3000~38000 Adjustable

                                                                                8000:1

                                                                                ≤345 / ≤115

                                                                                Constant Current Drive 52S

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH1.8 Ⅱ

                                                                                1.86

                                                                                172x86

                                                                                320x160

                                                                                0.57±0.05

                                                                                288,906

                                                                                ≥500

                                                                                3000~38000 Adjustable

                                                                                8000:1

                                                                                ≤345 / ≤115

                                                                                Constant Current Drive 43S

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH2 Ⅱ

                                                                                2.0

                                                                                160x80

                                                                                320x160

                                                                                0.57±0.05

                                                                                250,000

                                                                                ≥500

                                                                                3000~38000 Adjustable

                                                                                8000:1

                                                                                ≤345 / ≤115

                                                                                Constant Current Drive 40S

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH2.5 Ⅱ

                                                                                2.5

                                                                                128x64

                                                                                320x160

                                                                                0.57±0.05

                                                                                160,000

                                                                                600

                                                                                3000~38000 Adjustable

                                                                                8000:1

                                                                                ≤390 / ≤130

                                                                                Constant Current Drive 64S

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH1 Ⅱ Plus

                                                                                1.0

                                                                                320x180

                                                                                320x180

                                                                                0.65±0.05

                                                                                1,000,000

                                                                                ≥550

                                                                                3000~38000 Adjustable

                                                                                8000:1

                                                                                ≤429 / ≤143

                                                                                Constant Current Drive 60S

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH1.2 Ⅱ Plus

                                                                                1.25

                                                                                256x144

                                                                                320x180

                                                                                0.65±0.05

                                                                                640,000

                                                                                ≥550

                                                                                3000~38000 Adjustable

                                                                                8000:1

                                                                                ≤429 / ≤143

                                                                                Constant Current Drive 48S

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH1.5 Ⅱ Plus

                                                                                H:1.538 / V:1.551

                                                                                208x116

                                                                                320x180

                                                                                0.65±0.05

                                                                                418,889

                                                                                ≥500

                                                                                3000~38000 Adjustable

                                                                                8000:1

                                                                                ≤345 / ≤115

                                                                                Constant Current Drive 58S

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH1.8 Ⅱ Plus

                                                                                H:1.86 / V:1.875

                                                                                172x96

                                                                                320x180

                                                                                0.65±0.05

                                                                                286,667

                                                                                ≥500

                                                                                3000~38000 Adjustable

                                                                                8000:1

                                                                                ≤345 / ≤115

                                                                                Constant Current Drive 48S

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH2 Ⅱ Plus

                                                                                2.0

                                                                                160x90

                                                                                320x180

                                                                                0.65±0.05

                                                                                250,000

                                                                                ≥500

                                                                                3000~38000 Adjustable

                                                                                8000:1

                                                                                ≤345 / ≤115

                                                                                Constant Current Drive 45S

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH2.5 Ⅱ Plus

                                                                                2.5

                                                                                128x72

                                                                                320x180

                                                                                0.65±0.05

                                                                                160,000

                                                                                650

                                                                                3000~38000 Adjustable

                                                                                8000:1

                                                                                ≤383 / ≤128

                                                                                Constant Current Drive 36S

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH1 Ⅱ Flex

                                                                                1

                                                                                320x160

                                                                                320*160

                                                                                0.21±0.05

                                                                                1,000,000

                                                                                ≥550

                                                                                3000~38000 Adjustable

                                                                                8000:1

                                                                                ≤430 / ≤144

                                                                                Constant Current Drive 54S

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH1.2 Ⅱ Flex

                                                                                1.25

                                                                                256x128

                                                                                320*160

                                                                                0.21±0.05

                                                                                640,000

                                                                                ≥550

                                                                                3000~38000 Adjustable

                                                                                8000:1

                                                                                ≤430 / ≤144

                                                                                Constant Current Drive 64S

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH1.5 Ⅱ Flex

                                                                                1.53

                                                                                208x104

                                                                                320*160

                                                                                0.21±0.05

                                                                                422,500

                                                                                ≥500

                                                                                3000~38000 Adjustable

                                                                                8000:1

                                                                                ≤345 / ≤115

                                                                                Constant Current Drive 52S

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH1.8 Ⅱ Flex

                                                                                1.86

                                                                                172x86

                                                                                320*160

                                                                                0.21±0.05

                                                                                288,906

                                                                                ≥500

                                                                                3000~38000 Adjustable

                                                                                8000:1

                                                                                ≤345 / ≤115

                                                                                Constant Current Drive 43S

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH2 Ⅱ Flex

                                                                                2

                                                                                160x80

                                                                                320*160

                                                                                0.21±0.05

                                                                                250,000

                                                                                ≥500

                                                                                3000~38000 Adjustable

                                                                                8000:1

                                                                                ≤345 / ≤115

                                                                                Constant Current Drive 40S

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH2.5 Ⅱ Flex

                                                                                2.5

                                                                                128x64

                                                                                320*160

                                                                                0.21±0.05

                                                                                160,000

                                                                                ≥600

                                                                                3000~38000 Adjustable

                                                                                8000:1

                                                                                ≤390 / ≤130

                                                                                Constant Current Drive 64S

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

Remark: Above data is subject to change without prior notice
