MH Series Indoor LED Display Cabinet

Indoor LED Display Cabinet

Cost Effective | 320x160mm Wholesale LED Display Module

PRO FEATURES

Front/rear installation, front/rear maintenance
High-strength aluminum alloy cabinet frame, light weight and non-deformable
Excellent heat dissipation performance, high splicing accuracy
Magnetic installation for modules, no screw required, easy and fast maintenance
Support X/Y/Z 6-axis alignment
Support dual power supply and dual receiving card redundancy

Message

Product Highlights

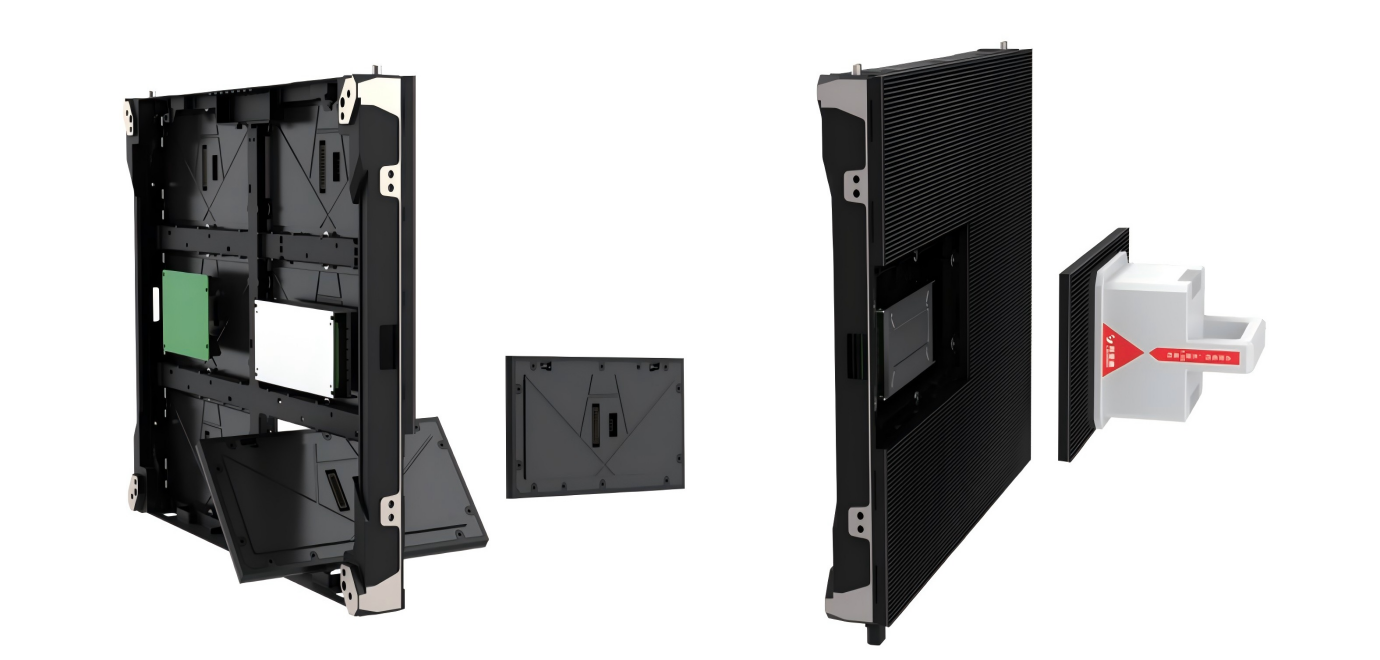

Front & Rear Maintenance

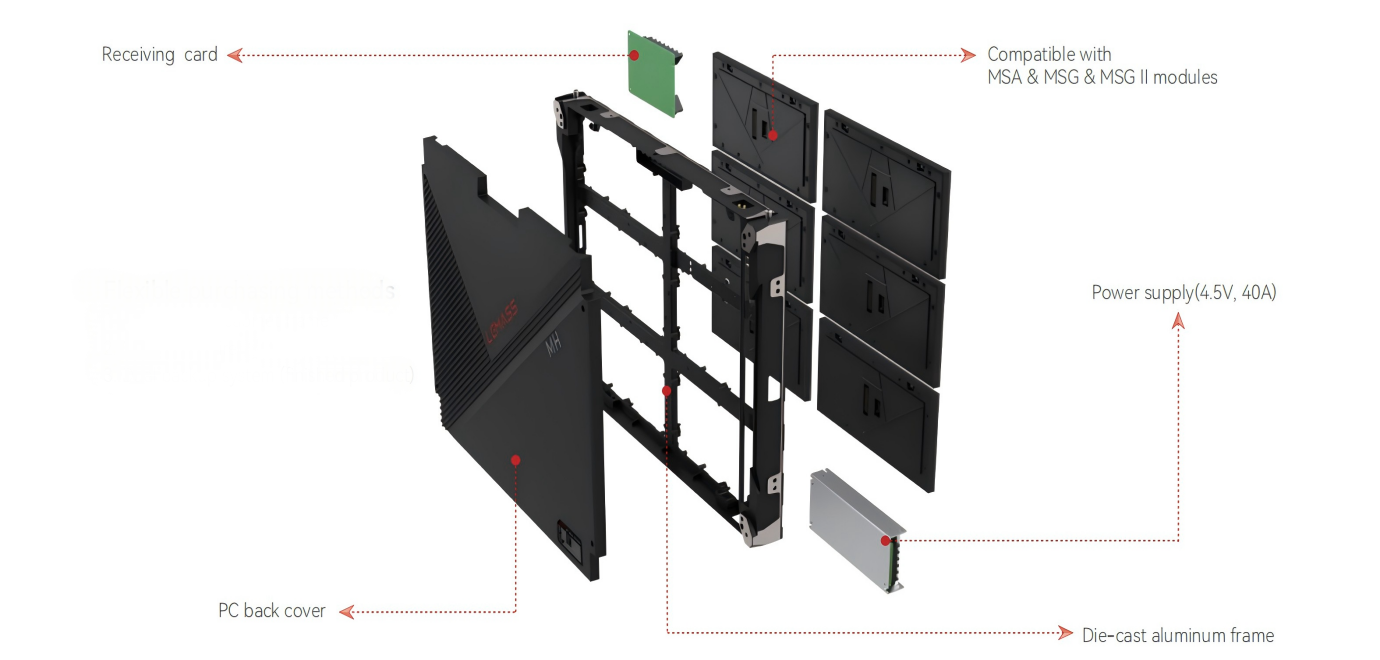

Perfect match for 320×160mm modules(MSA & MSG & MSG II)

Flexible purchasing methods Power supply(4.5V,40A)

1. Independent cabinet frame
2.Modules + wire
3.Dual backup system (finished product)

Solution

Leyard MH series indoor ultra-slim fine pitch LED displays redefine

visual excellence with their sleek design and superior image quality.

Ideal for corporate environments, control rooms, and high-end

retail spaces, these displays offer seamless integration and stunning

clarity. The ultra-slim profile ensures a modern aesthetic, while

the fine pitch technology delivers sharp, vibrant visuals

even at close viewing distances. Leyard MH Series are

equipped with advanced calibration technology, ensuring

consistent color accuracy and brightness uniformity across

the entire video wall.

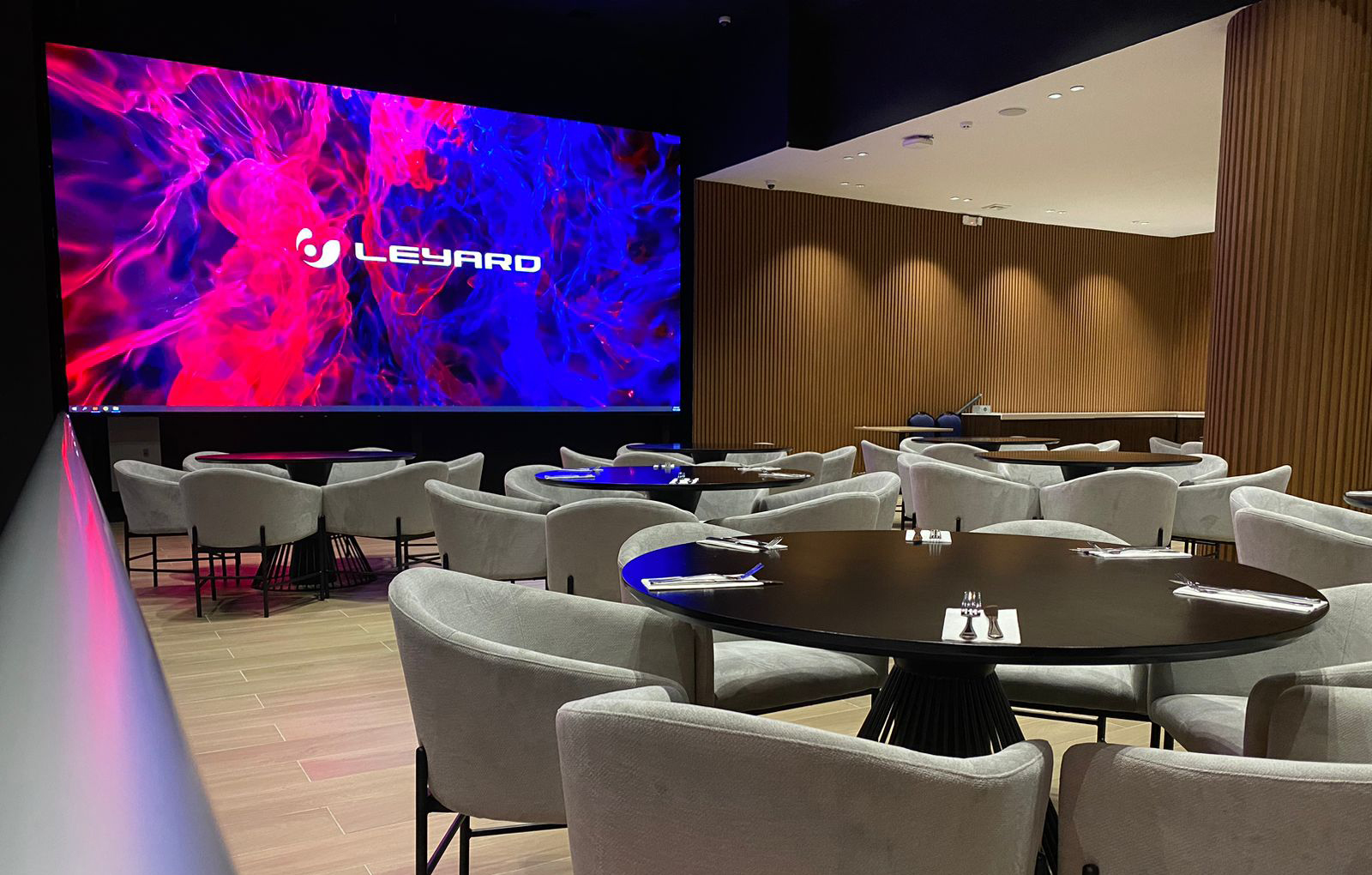

Application

Design Centre

Control Centre

Broadcast

Conference Room

Exhibition Centre

Home Cinema

Specifications

MH1

MH1.25

MH1.538

MH1.86

MH2

MH2.5

MH1.667

MH3.076

MH4

Item
Pitch (mm)
Module Arrangement (WxH)
Module Size (mm)(WxHxD)
Module Weight(Kg)
Brightness (nits)
Color Temperature (K)
Contrast Ratio
MAX./AVG Power Consumption (W/㎡)
Refresh Rate(Hz)
Operation/Storage Temperature (℃ )
Operation Humidity (RH)
Storage Humidity (RH)

                                                                                MH1

                                                                                1

                                                                                2x3

                                                                                640x480x67

                                                                                7.7±0.1

                                                                                ≥550

                                                                                3000—38000 Adjustable

                                                                                5000:1

                                                                                ≤490 / ≤165

                                                                                ≥3840

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                MH1.25

                                                                                1.25

                                                                                2x3

                                                                                640x480x(67 | 74 | 69)

                                                                                (7.7 | 7 | 7.2)±0.1

                                                                                ≥550

                                                                                3000—38000 Adjustable

                                                                                5000:1

                                                                                ≤490 / ≤165

                                                                                ≥3840

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                MH1.538

                                                                                1.538

                                                                                2x3

                                                                                640x480x(67 | 74 | 69)

                                                                                (7.7 | 7 | 7.2)±0.1

                                                                                ≥500

                                                                                3000—38000 Adjustable

                                                                                5000:1

                                                                                ≤490 / ≤165

                                                                                ≥3840

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                MH1.86

                                                                                1.86

                                                                                2x3

                                                                                640x480x(67 | 74 | 69)

                                                                                (7.7 | 7 | 7.2)±0.1

                                                                                ≥500

                                                                                3000—38000 Adjustable

                                                                                5000:1

                                                                                ≤490 / ≤165

                                                                                ≥3840

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                MH2

                                                                                2

                                                                                2x3

                                                                                640x480x(67 | 74 | 69)

                                                                                (7.7 | 7 | 7.2)±0.1

                                                                                ≥500

                                                                                3000—38000 Adjustable

                                                                                5000:1

                                                                                ≤490 / ≤165

                                                                                ≥3840

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                MH2.5

                                                                                2.5

                                                                                2x3

                                                                                640x480x(67 | 74 | 69)

                                                                                (7.7 | 7 | 7.2)±0.1

                                                                                ≥600

                                                                                3000—38000 Adjustable

                                                                                5000:1

                                                                                ≤490 / ≤165

                                                                                ≥3840

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                MH1.667

                                                                                1.667

                                                                                2x3

                                                                                640x480x74

                                                                                7±0.1

                                                                                ≥450

                                                                                3000—38000 Adjustable

                                                                                5000:1

                                                                                ≤490 / ≤165

                                                                                ≥3840

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                MH3.076

                                                                                3.076

                                                                                2x3

                                                                                640x480x74

                                                                                7±0.1

                                                                                ≥600

                                                                                3000—38000 Adjustable

                                                                                5000:1

                                                                                ≤490 / ≤165

                                                                                ≥3840

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                MH4

                                                                                4

                                                                                2x3

                                                                                640x480x74

                                                                                7±0.1

                                                                                ≥600

                                                                                3000—38000 Adjustable

                                                                                5000:1

                                                                                ≤490 / ≤165

                                                                                ≥3840

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

Remark: Above data is subject to change without prior notice
