AKS Series Indoor LED Display Cabinet

AKS SERIES INDOOR LED DISPLAY CABINET

16:9 aspect ratio, perfectly matches the 320mmx180mm LED display module of the MiniBox series

KEY FEATURES

16:9 aspect ratio, perfectly matches the 320mmx180mm LED display module of the MiniBox series.

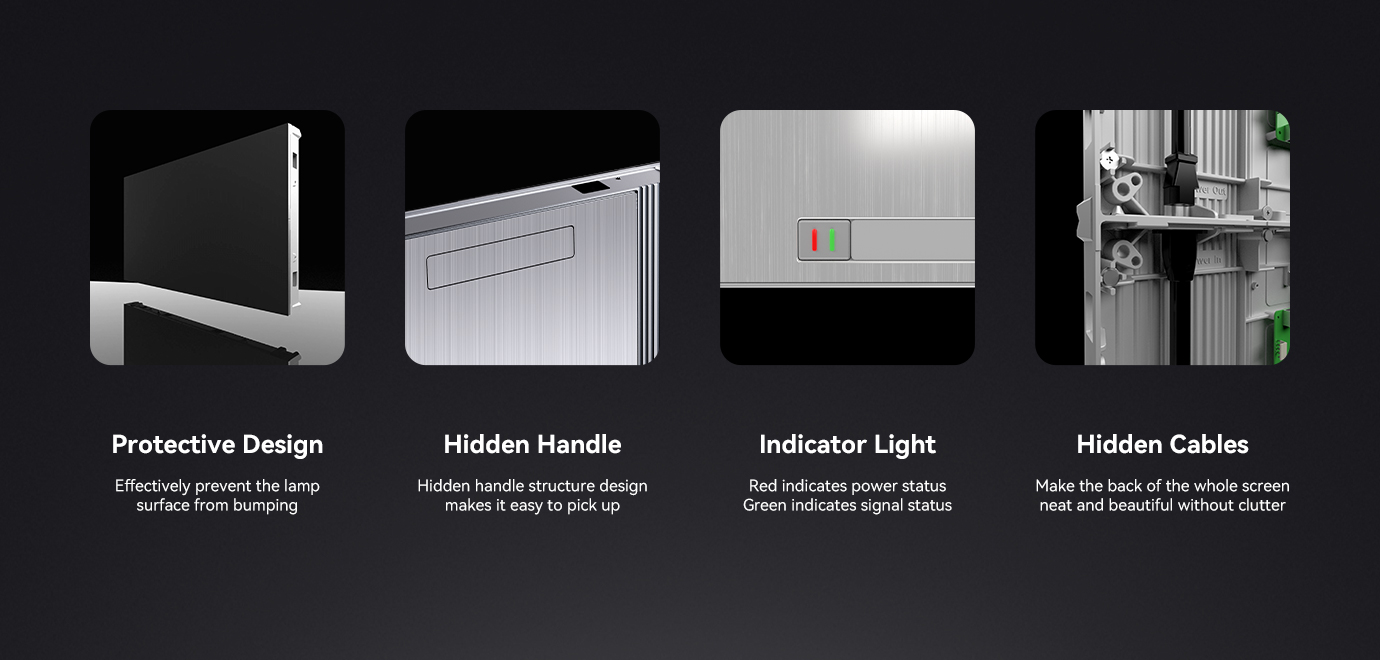

Front/ rear installation, can be completely front/ rear disassembly.
High-strength aluminum alloy housing, high splicing accuracy.
Integrated design, excellent heat dissipation performance.
Power & signal backup are optional.

Message

Product Highlights

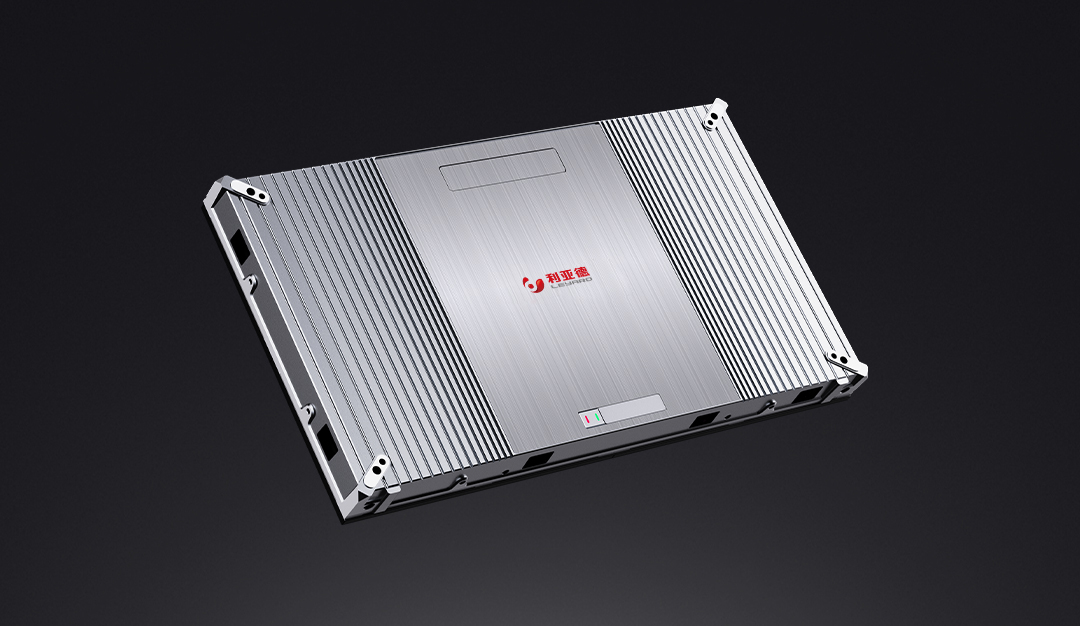

Cabinet Dimension

640×360×55mm
16:9 standard format design

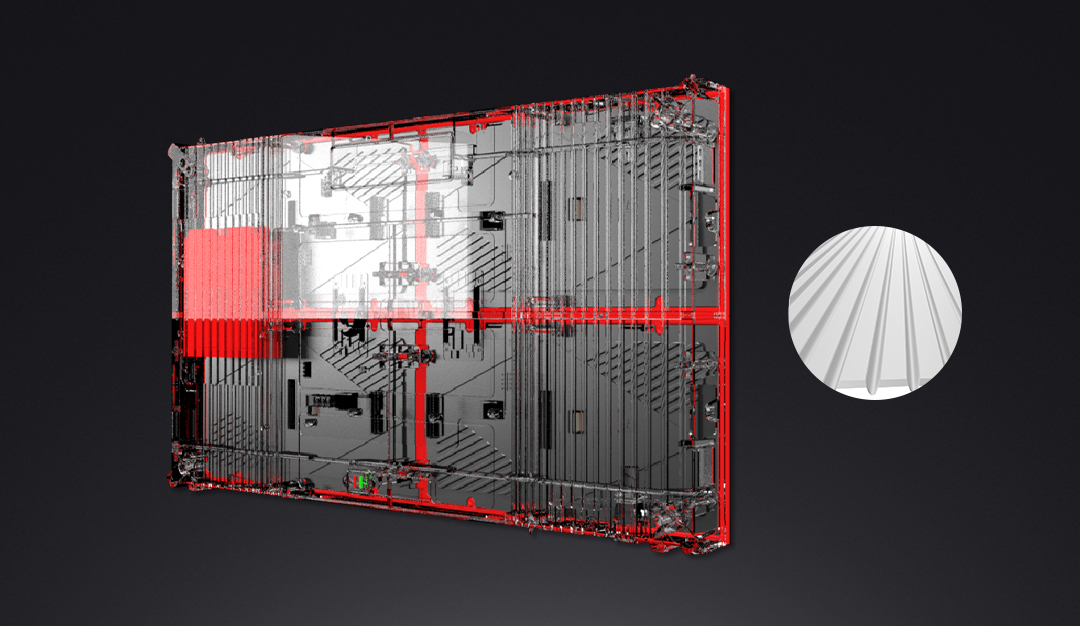

Cooling System

AKS adopts an integrated all-aluminum heat dissipation design. As shown, red area is the bonding heat conduction area between PSU/ LED modules and the cabinet

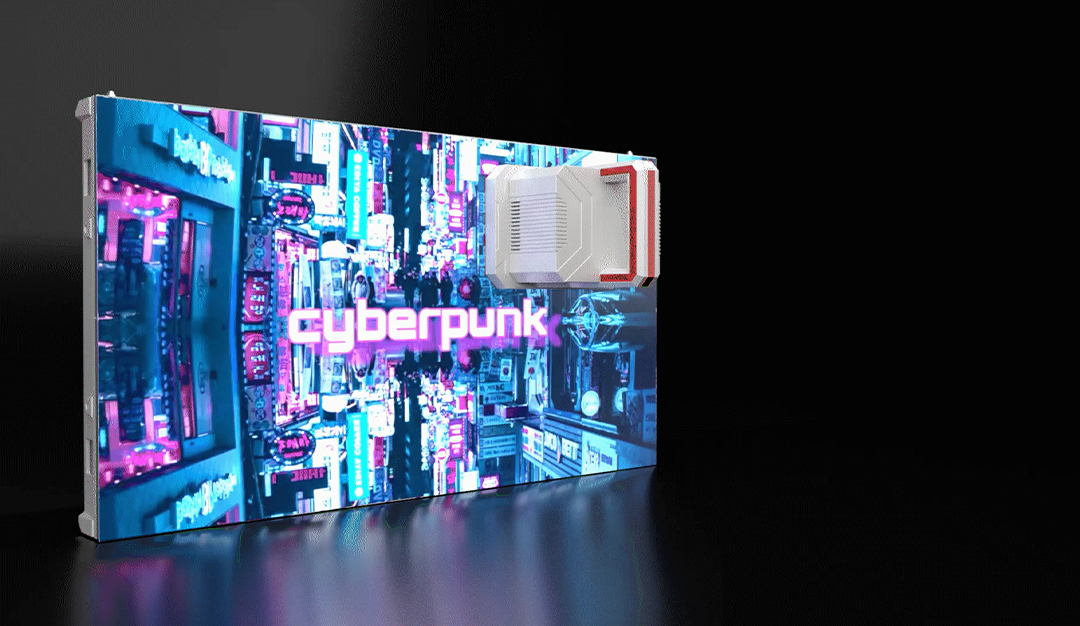

Front / Rear Installation

the power supply unit & LED models all are fully installable and serviceable from the front of the cabinet

Solution

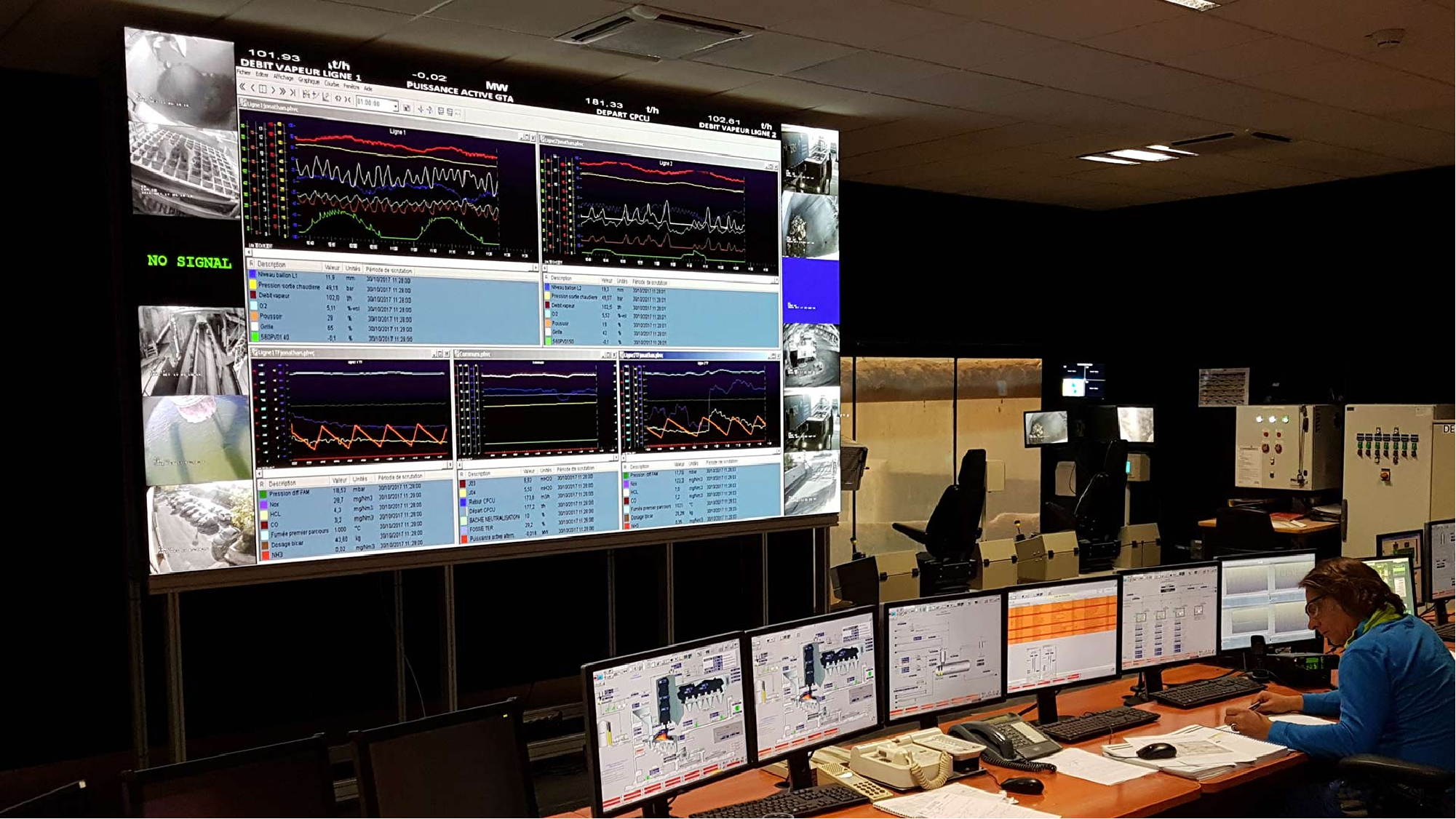

AKS Indoor Series cabinet (display ratio 16:9) supports multi-directional adjustment, widely used in high-end conferences, controlling centers, data centers, etc.

Application

Brand Centre

Museum Centre

Retails & Store

Meeting Room

Exhibition Centre

Artistic Theme

Specifications

AKS1

AKS1.2

AKS1.5

AKS1.6

AKS1.8

AKS2

AKS2.5

Item
Pitch (mm)
Cabinet Size (mm)(WxHxD)
Color Temp (k)
Unit Area (㎡)
Contrast Ratio
Brightness (nits)
Max/Avg. Power Consumption (W/㎡)
Cabinet Power Consumption (W/cabinet)
Refresh Rate (Hz)
Operation/Storage Temperature (℃ )
Operation Humidity (RH)
Storage Humidity (RH)

                                                                                AKS1

                                                                                1

                                                                                640x360x55

                                                                                3000~38000 Adjustable

                                                                                0.2304

                                                                                5000:1

                                                                                ≥500

                                                                                ≤438/≤146

                                                                                ≤108

                                                                                ≥3840

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                AKS1.2

                                                                                1.25

                                                                                640x360x55

                                                                                3000~38000 Adjustable

                                                                                0.2304

                                                                                5000:1

                                                                                ≥500

                                                                                ≤438/≤146

                                                                                ≤108

                                                                                ≥3840

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                AKS1.5

                                                                                1.538/1.551

                                                                                640x360x55

                                                                                3000~38000 Adjustable

                                                                                0.2304

                                                                                5000:1

                                                                                ≥450

                                                                                ≤438/≤146

                                                                                ≤108

                                                                                ≥3840

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                AKS1.6

                                                                                1.667

                                                                                640x360x55

                                                                                3000~38000 Adjustable

                                                                                0.2304

                                                                                5000:1

                                                                                ≥450

                                                                                ≤438/≤146

                                                                                ≤108

                                                                                ≥3840

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                AKS1.8

                                                                                1.86/1.875

                                                                                640x360x55

                                                                                3000~38000 Adjustable

                                                                                0.2304

                                                                                5000:1

                                                                                ≥450

                                                                                ≤438/≤146

                                                                                ≤108

                                                                                ≥3840

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                AKS2

                                                                                2

                                                                                640x360x55

                                                                                3000~38000 Adjustable

                                                                                0.2304

                                                                                5000:1

                                                                                ≥450

                                                                                ≤438/≤146

                                                                                ≤108

                                                                                ≥3840

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                AKS2.5

                                                                                2.5

                                                                                640x360x55

                                                                                3000~38000 Adjustable

                                                                                0.2304

                                                                                5000:1

                                                                                500-550

                                                                                ≤438/≤146

                                                                                ≤108

                                                                                ≥3840

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

Remark: Above data is subject to change without prior notice
