TXP Series Super Thin All-in-one LED Display

TXP SERIES ALL IN ONE LED DISPLAY

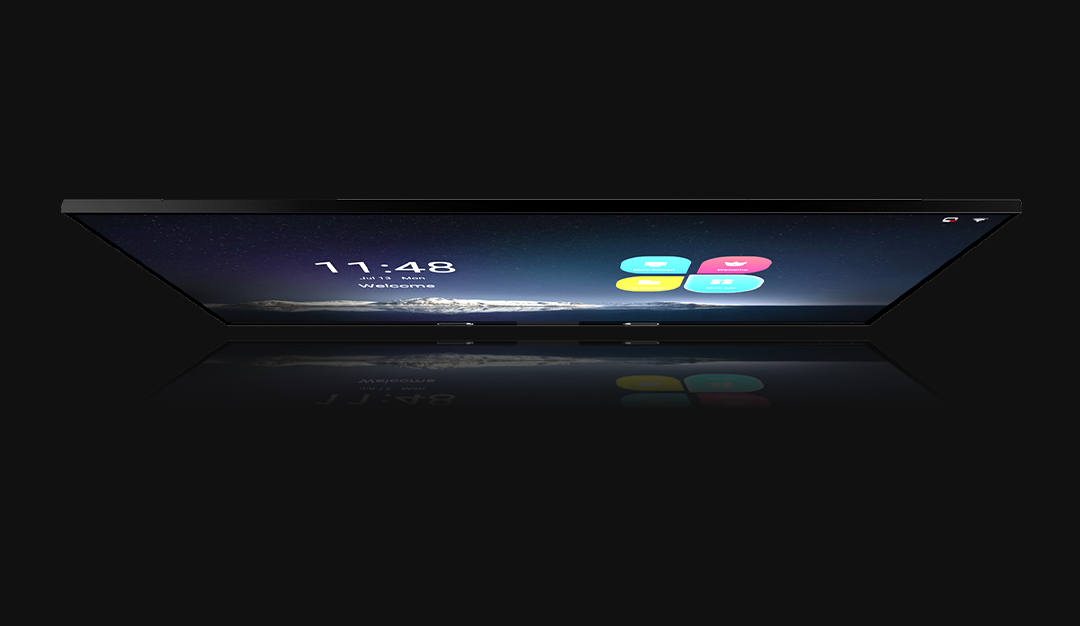

Super thin design, only 20mm thickness, high-end simplicity

KEY FEATURES

Aviation aluminum alloy frame

2in1 LED common cathod design

Supports hot plug and easy maintenance

Floating connection is more reliable without stress

Dual -WIFI（2.4G+5G）

Remote control

Timing on and off

Message

Product Highlights

Ultra-thin Design Aviation Aluminum Alloy Frame

Only 20mm thickness. Diamond cutting high-gloss design, reflecting the quality of ingenuity,

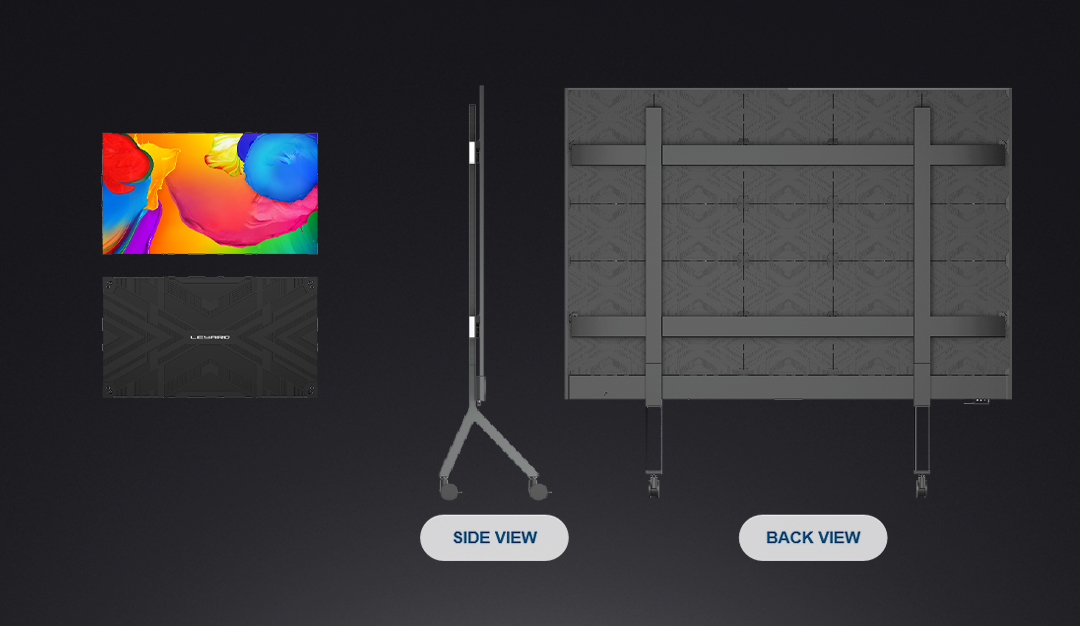

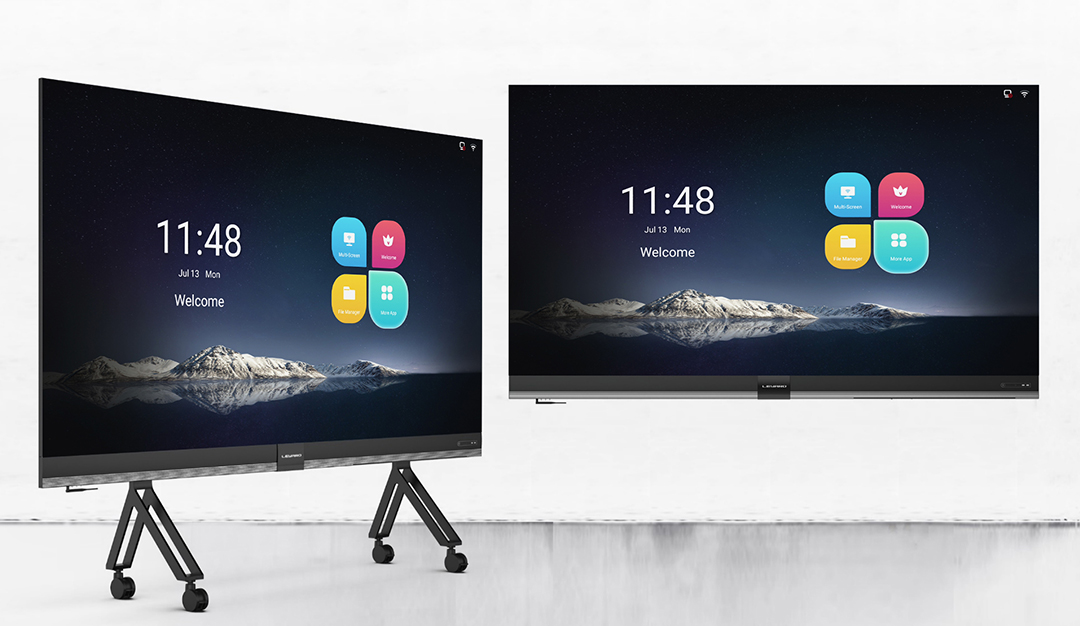

Easy Installation and Maintenance Design

Standing & wall mounting, floating connection is more reliable without stress, supports hot plug for easy maintenance.

Dual -WIFI (2.4G+5G)

Supports wireless projection of multiple device: andiord、iOS、Windows connect by WIFI; User can quickly mirror pictures. videos, files to screen; Supports up to 9 channels of split-screen display at the same times; Support three devices interactive, computer screen projection, IPAD writing, large screen display; Projection Hot Spot and internet wifi separate. Adjustable brightness, change signal, adjust colur temperature by remote control device

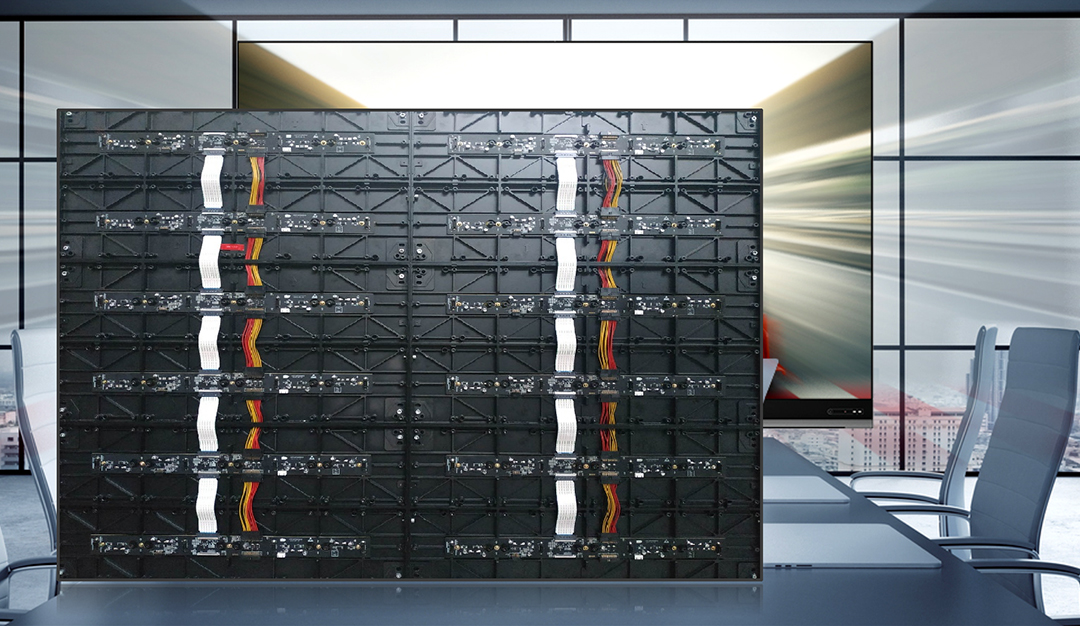

TXP Series LED Cabinet

Cabinet size :600*337.5*20mm; Standard 16:9 aspect ratio; Standard 27“panel; 4.2kg/cabinet;20.8kg/㎡

Benefit Description

27”Diagonal Flat Plate Design，standard cabinet resolution easy to built 2K,4K,8K video wall; Control box outside cabinet make super thin video wall; Common Cathode design ,energy Saving; 6-axis Alignment insure super flatness and seamless; EMC,cTUVus,CE,CB,FCC,ROHS,HDR,low bluelight certificate

Solution

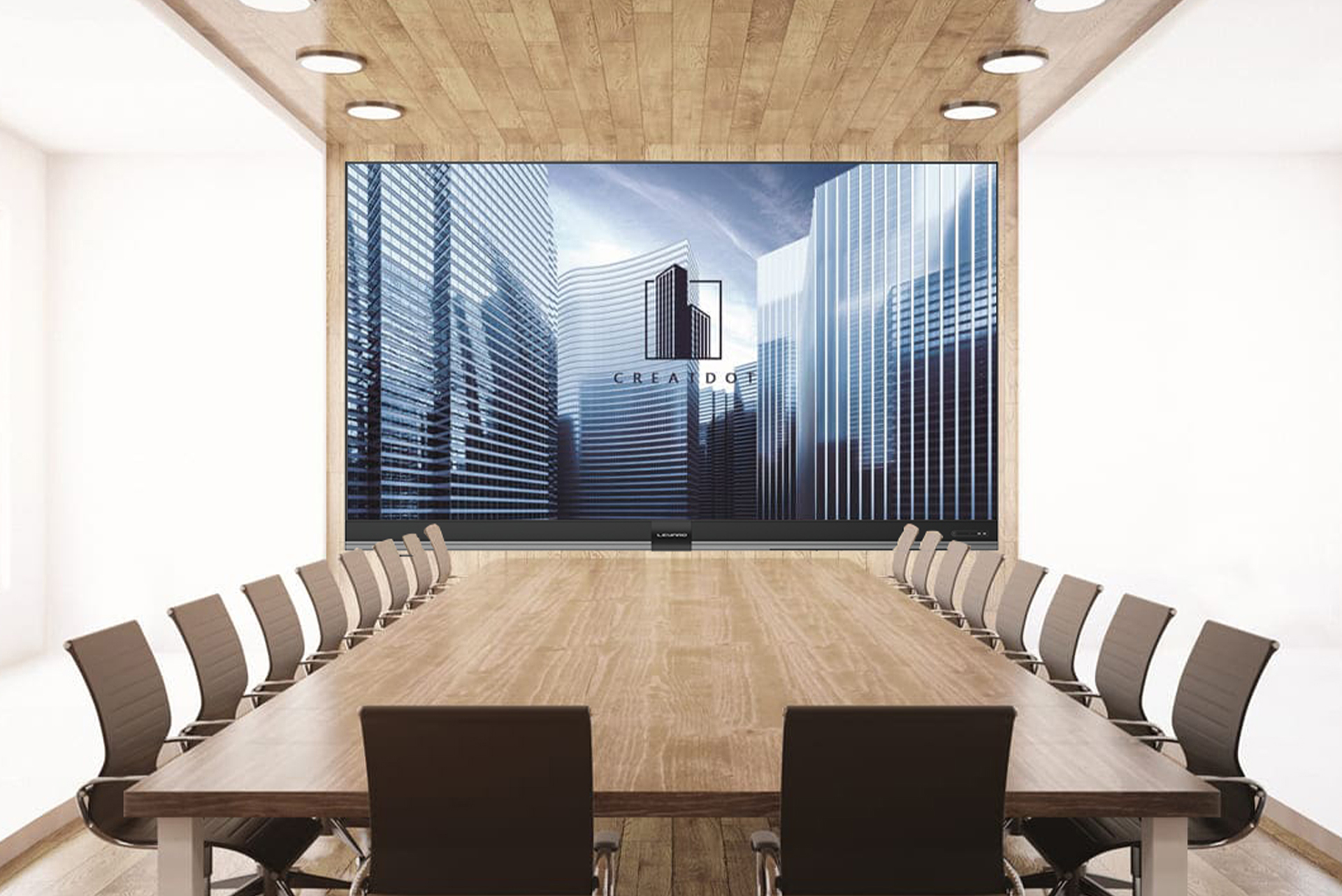

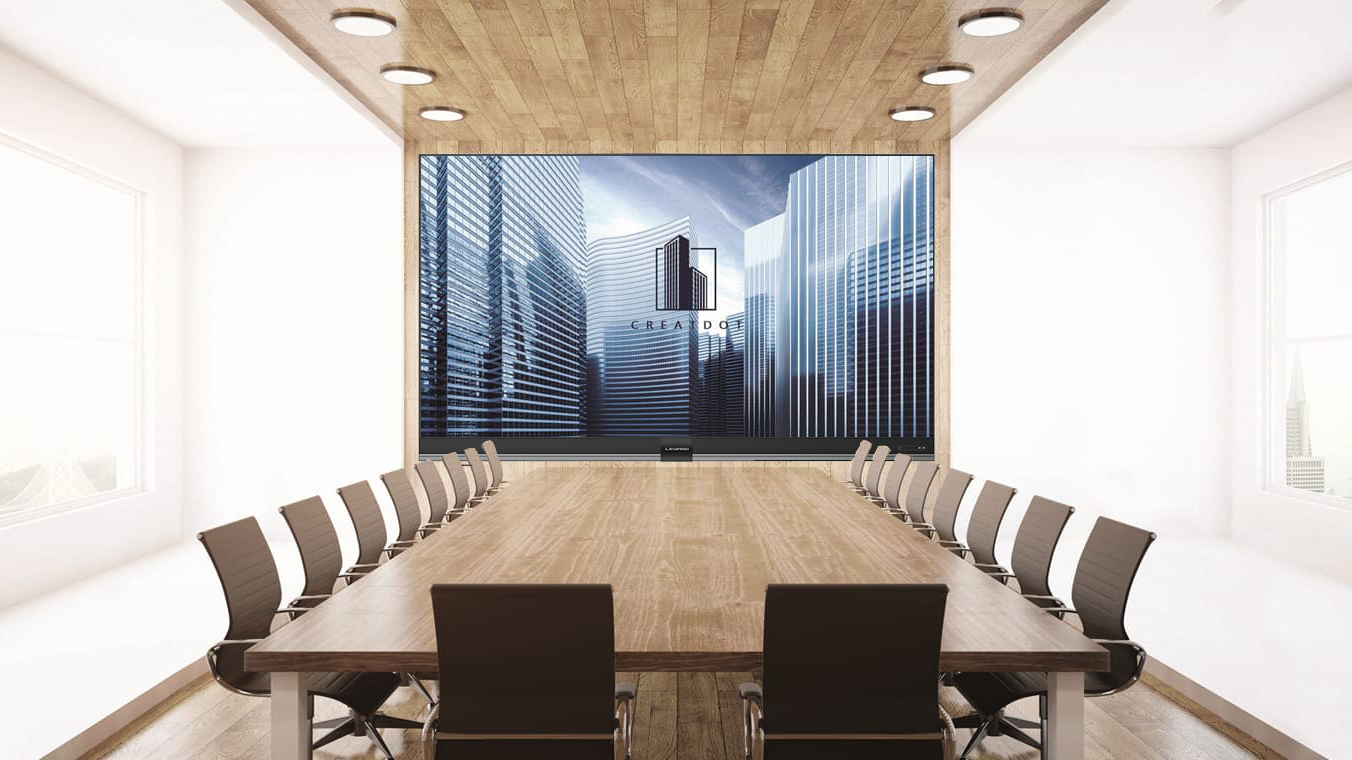

Leyard TXP all-in-one LED display brings an immersive visual experience into the meeting rooms. It delivers a crisp visual performance under the sunlight that projector can never achieve.

Application

Conference rooms
Education / training
Lobbies displays
Corporate boardrooms
Any location a large display is used

Specifications

TXP108 12V5

TXP122 14V5

TXP135 07V5

TXP135 15V5

TXP162 09V5

TXP162 18V5

Item
Pixel Pitch (mm)
Module Size（mm）
Pixel Density (Point/㎡)
Contrast Ratio
Refresh Rate (Hz)
Viewing Angle (Horizontal)°
System

                                                                                TXP108 12V5

                                                                                1.2

                                                                                150x 337.5

                                                                                640,000

                                                                                10000:1

                                                                                3840

                                                                                170°

                                                                                Android 11.0/Windows 10(Optional)

                                                                                TXP122 14V5

                                                                                1.4

                                                                                337.5x189.85

                                                                                485,538

                                                                                10000:1

                                                                                3840

                                                                                170°

                                                                                Android 11.0/Windows 10(Optional)

                                                                                TXP135 07V5

                                                                                0.7

                                                                                150x168.75

                                                                                1,638,400

                                                                                10000:1

                                                                                3840

                                                                                170°

                                                                                Android 11.0/Windows 10(Optional)

                                                                                TXP135 15V5

                                                                                1.5

                                                                                150x337.5

                                                                                409,600

                                                                                10000:1

                                                                                3840

                                                                                170°

                                                                                Android 11.0/Windows 10(Optional)

                                                                                TXP162 09V5

                                                                                0.9

                                                                                150 x 168.75

                                                                                1,137,778

                                                                                10000:1

                                                                                3840

                                                                                170°

                                                                                Android 11.0/Windows 10(Optional)

                                                                                TXP162 18V5

                                                                                1.8

                                                                                150 x 168.75

                                                                                284,444

                                                                                5000:1

                                                                                3840

                                                                                170°

                                                                                Android 11.0/Windows 10(Optional)

Remark: Above data is subject to change without prior notice
