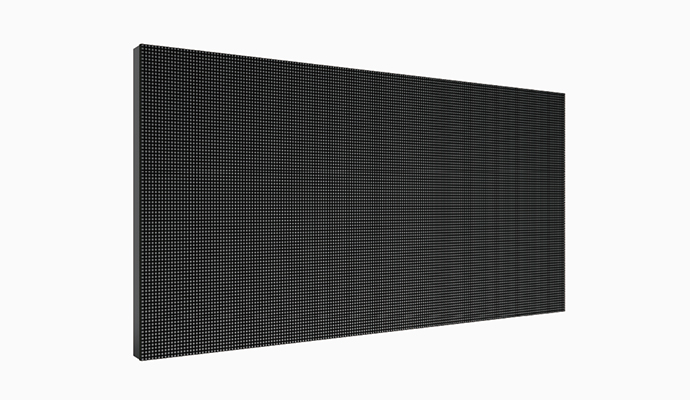

Advanced Display Module with Superior Visual Performance

MSG II is a lightweight, high-strength module with a thickness of only 12.5mm. The refresh rate is 3840Hz. In addition, the product supports automatic adjustment of brightness and color temperature, which can bring users good visual experience, while effectively reducing power consumption and contributing to environment protection.

PRO FEATURES

- 3840Hz refresh rate for great visual experience

- Automatic adjustment of brightness and color temperature

- Bringing comfort, realizing power saving

- As thin as 12.5mm

- Adopting high-strength bracket

- Strong load-bearing without any deformation

- Screwless design with the ultimate in ingenuity

Message

Product Highlights

Automatic Adjustment

< Automatic adjustment of brightness and color temperature
< Bringing comfort, realizing power saving

High Refresh Rate

3840Hz refresh rate for great visual experience

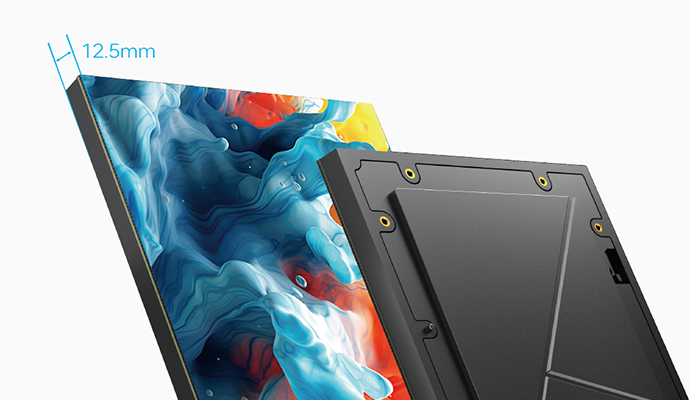

Ultra-thin

• As thin as 12.5mm
• Possessing light weight

High-strength

• Adopting high-strength bracket
• Strong load-bearing without any deformation

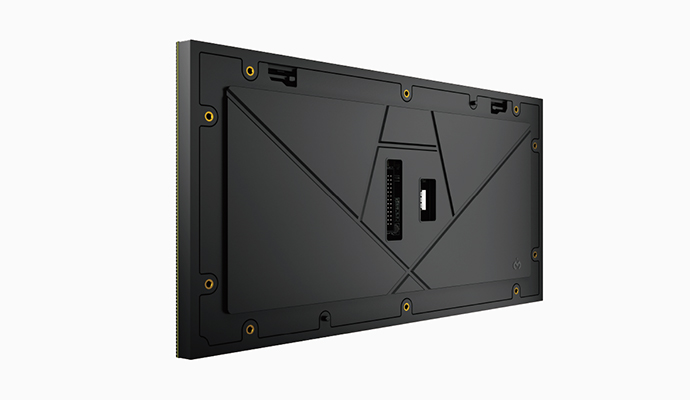

Screwless Design

Screwless design with the ultimate in ingenuity

Solution

Leyard MSG II Series indoor fine-pitch LED modules offer exceptional visual performance for various applications. With ultra-high resolution and seamless design, these modules are ideal for control rooms, broadcast studios, and corporate environments. The advanced LED technology ensures vibrant colors and sharp images, enhancing presentations and decision-making processes. Easy installation and maintenance make the MSG II Series a cost-effective solution for dynamic and engaging displays. Its versatility and reliability make it a top choice for professionals seeking cutting-edge display solutions.

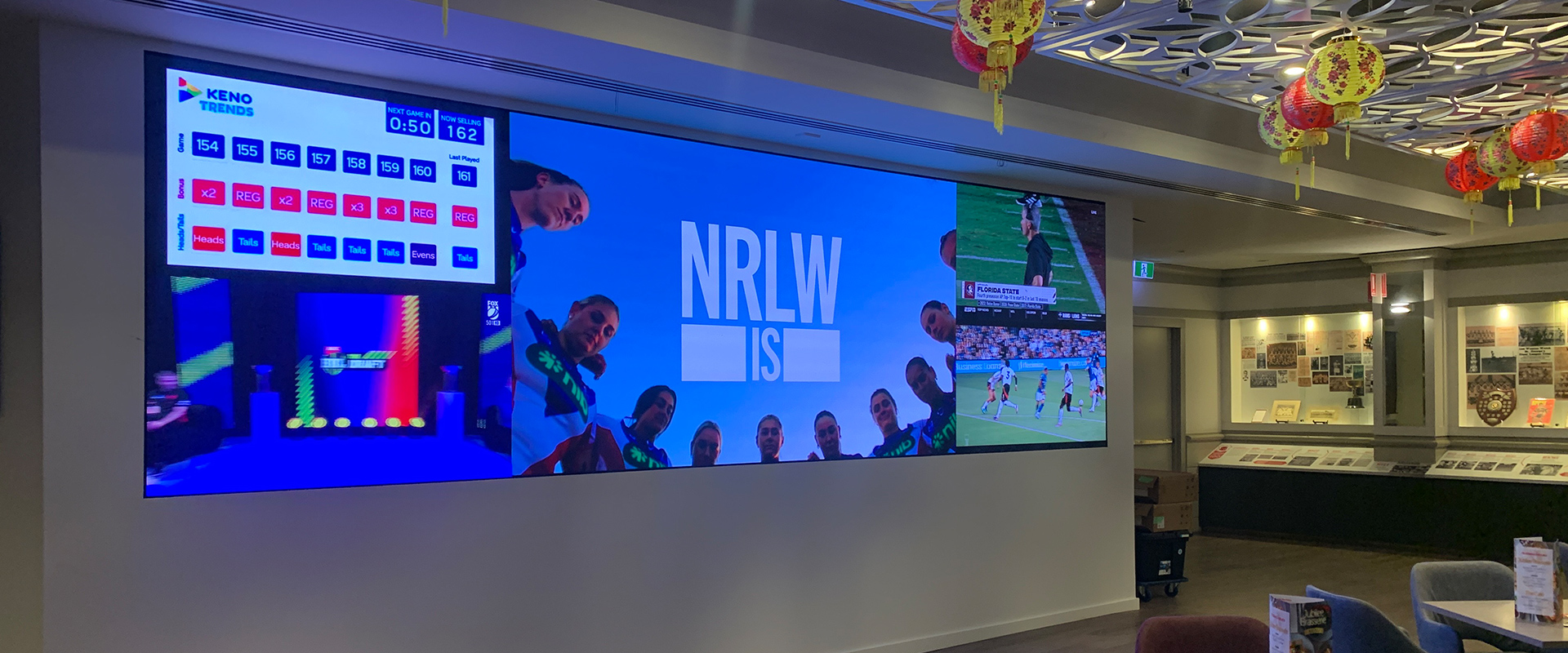

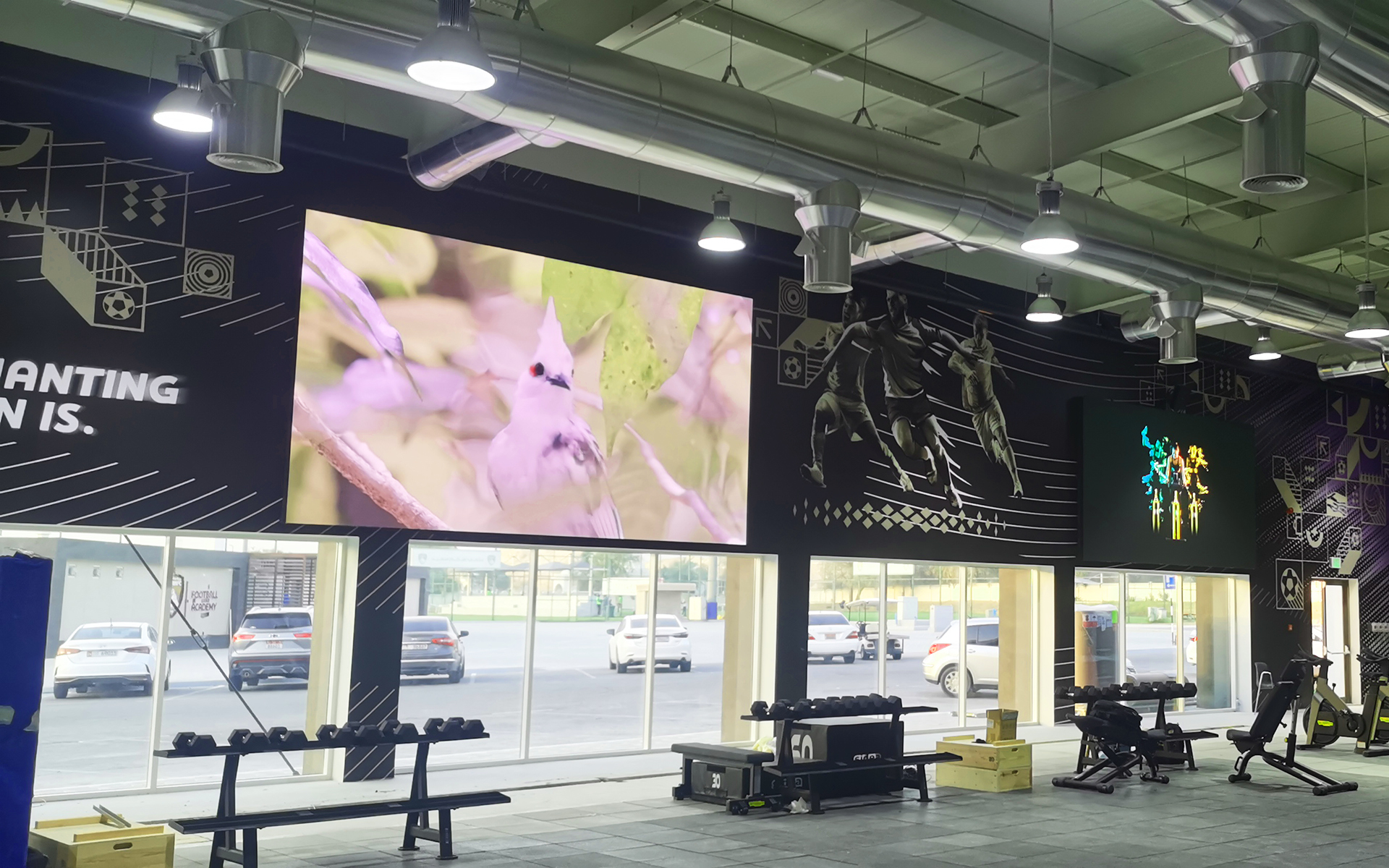

Application

Design Centre

Control Centre

Broadcast

Conference Room

Exhibition Centre

Home Cinema

Specifications

MSG1.2 II

MSG1.5 II

MSG1.8 II

MSG2 II

MSG2.5 II

MSG3 II

MSG4 II

Item
LED Configuration
Pixel Pitch (mm)
Module Resolution (WxH)
Module Size (mm) (WxH)
Module Weight (Kg)
Module Area (m²)
Pixel Density (dots/m²)
White Balance Brightness (nits)
Contrast Ratio
Peak Power Consumption (W/m²)
Avg Power Consumption(W/m²）
Refresh Rate (Hz)
Operation Temperature (℃)
Operation Humidity (RH)

                                                                                MSG1.2 II

                                                                                SMT 3 in 1

                                                                                1.25

                                                                                256x128

                                                                                320x160

                                                                                0.39±0.05

                                                                                0.0512

                                                                                640,000

                                                                                ≥550

                                                                                5000:1

                                                                                ≤440

                                                                                ≤148

                                                                                ≥3840

                                                                                -10~40

                                                                                10~80% no condensation

                                                                                MSG1.5 II

                                                                                SMT 3 in 1

                                                                                1.538

                                                                                208x104

                                                                                320x160

                                                                                0.39±0.05

                                                                                0.0512

                                                                                422,500

                                                                                ≥500

                                                                                5000:1

                                                                                ≤352

                                                                                ≤118

                                                                                ≥3840

                                                                                -10~40

                                                                                10~80% no condensation

                                                                                MSG1.8 II

                                                                                SMT 3 in 1

                                                                                1.86

                                                                                172x86

                                                                                320x160

                                                                                0.39±0.05

                                                                                0.0512

                                                                                288,906

                                                                                ≥500

                                                                                5000:1

                                                                                ≤352

                                                                                ≤118

                                                                                ≥3840

                                                                                -10~40

                                                                                10~80% no condensation

                                                                                MSG2 II

                                                                                SMT 3 in 1

                                                                                2

                                                                                160x80

                                                                                320x160

                                                                                0.38±0.05

                                                                                0.0512

                                                                                250,000

                                                                                ≥500

                                                                                5000:1

                                                                                ≤352

                                                                                ≤118

                                                                                ≥3840

                                                                                -10~40

                                                                                10~80% no condensation

                                                                                MSG2.5 II

                                                                                SMT 3 in 1

                                                                                2.5

                                                                                128x64

                                                                                320x160

                                                                                0.37±0.05

                                                                                0.0512

                                                                                160,000

                                                                                430~450/≥600

                                                                                5000:1

                                                                                ≤230

                                                                                ≤77

                                                                                ≥3840

                                                                                -10~40

                                                                                10~80% no condensation

                                                                                MSG3 II

                                                                                SMT 3 in 1

                                                                                3.076

                                                                                104x52

                                                                                320x160

                                                                                0.39±0.05

                                                                                0.0512

                                                                                105625

                                                                                500~550

                                                                                5000:1

                                                                                ≤308

                                                                                ≤103

                                                                                ≥3840

                                                                                -10~40

                                                                                10~80% no condensation

                                                                                MSG4 II

                                                                                SMT 3 in 1

                                                                                4

                                                                                80x40

                                                                                320x160

                                                                                0.39±0.05

                                                                                0.0512

                                                                                62500

                                                                                ≥600

                                                                                5000:1

                                                                                ≤370

                                                                                ≤123

                                                                                ≥3840

                                                                                -10~40

                                                                                10~80% no condensation

Remark: Above data is subject to change without prior notice
