VF Series Indoor Commercial LED Displays

INDOOR COMMERCIAL LED DISPLAY

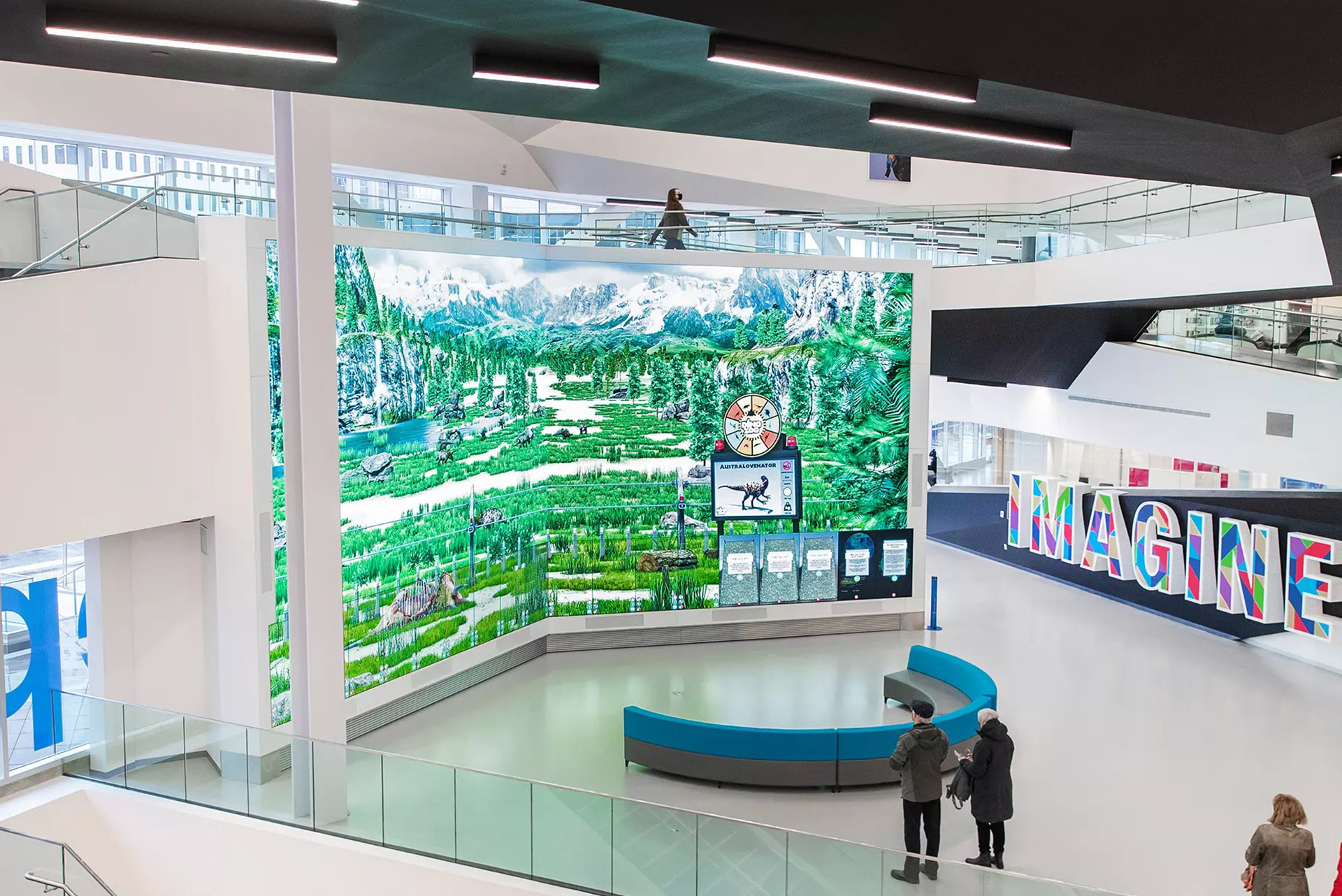

Leyard VF indoor commercial LED displays are electronic screens used to display information and advertisements in indoor commercial settings such as shopping malls, airports, and stadiums. These displays are made up of small LED modules that can be configured to form a large screen.

KEY FEATURES

Brighter and Bolder
Flexibility and Efficiency
Sustainable Solutions
Energy Efficiency

Message

Product Highlights

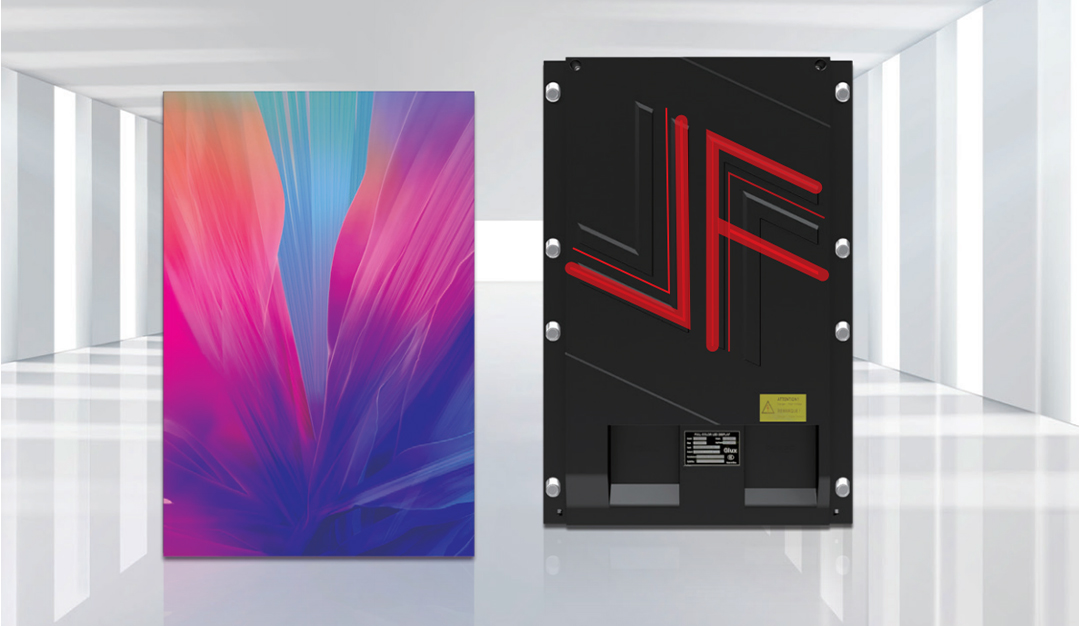

Unique Appearance Design

The appearance of simple geometric lines, combined with the "V/F" letter concept, like a lightning break out of the sky, designed to provide efficient service to customers.

High Contrast Ratio

One advantage of high contrast ratio in LED displays is that it provides a clearer image with brighter and more vivid colors, making it easier to read and understand text and graphics.

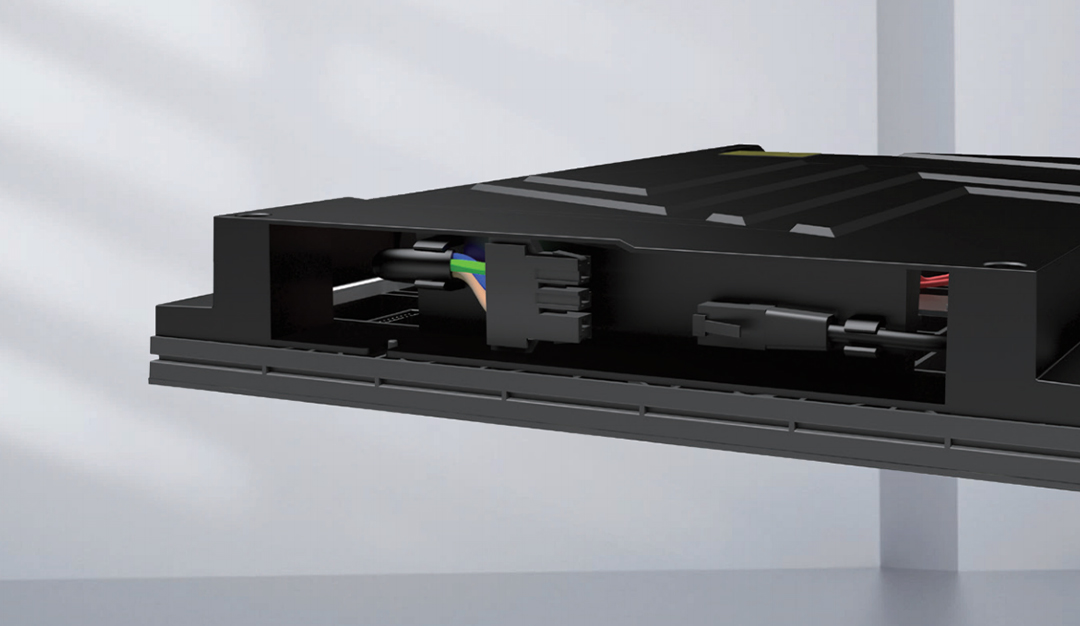

Convenient, Safe and Quick to Use

> Clever harness storage function;
> No cabinet design;
> Can be installed safety rope, safe and reliable;

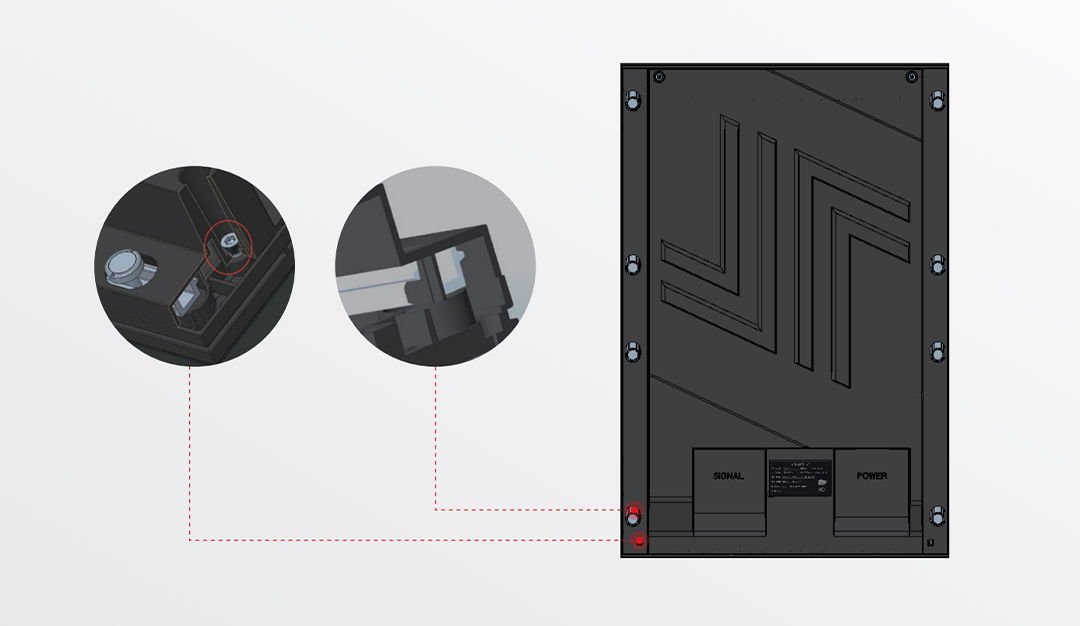

Ensure Installation Flatness

Single side fixing and special rear cover buckle installation mode prevent the rear cover from deformation caused by thermal expansion due to temperature change.

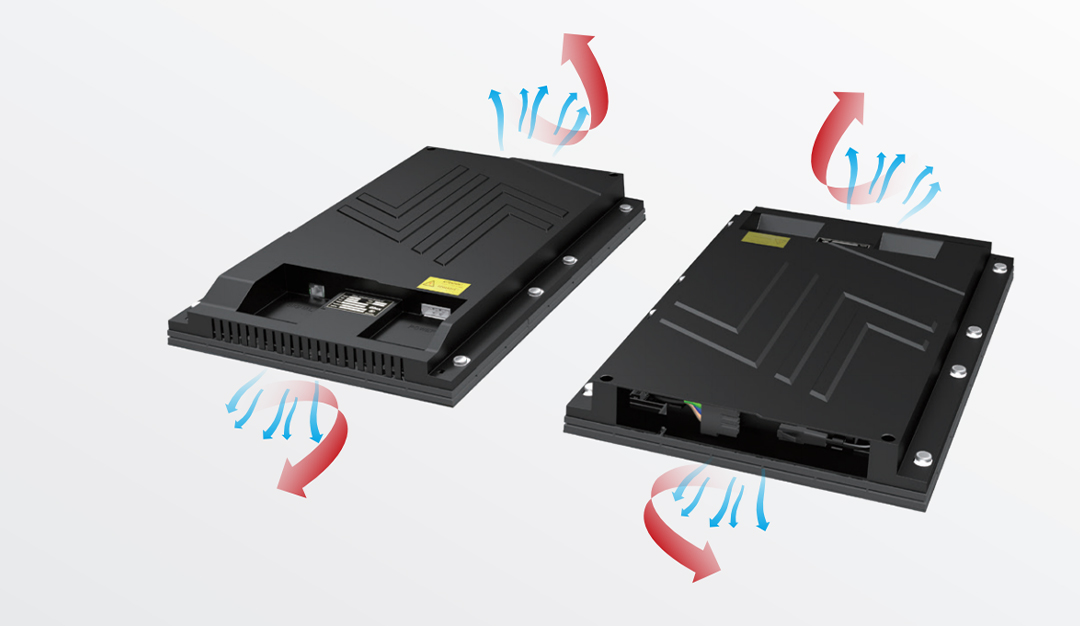

Good Heat Dissipation

Upper and lower ventilation design, excellent heat dissipation performance.

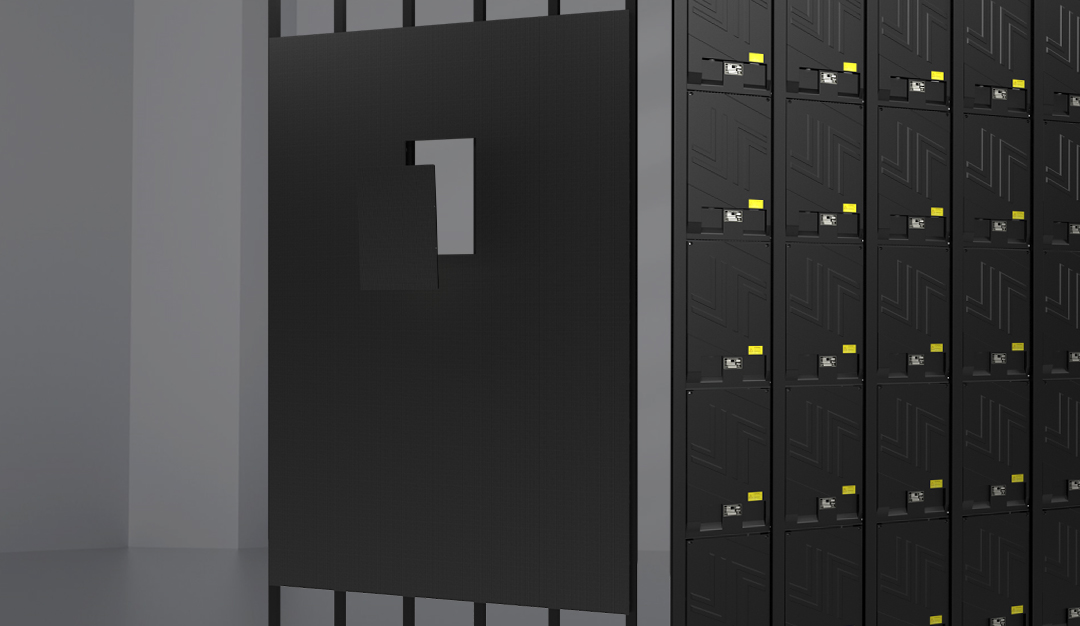

Stacked Mounting

The back side is adsorbed on the steel structure, build a large screen is convenient and quick. Using magnetic maintenance, simple and easy to operate.

Solution

LED displays are preferred over traditional displays because they offer bright and vibrant colors, high contrast ratios, and excellent visibility even in bright lighting conditions. They are also energy-efficient and have a longer lifespan compared to other display technologies. Leyard VF indoor commerical LED displays can be customized to suit the specific needs of the business or venue. They can display text, images, and videos in various formats and resolutions. They are also flexible in terms of installation options, such as wall-mounted or free-standing displays. Overall, Leyard VF commerical LED displays are a powerful marketing tool that can help businesses increase brand awareness and engage customers.

Application

Brand Centre

Museum Centre

Retails & Store

Meeting Room

Exhibition Centre

Artistic Theme

Specifications

VF1.8

VF2.0

VF2.5

Item
Pixel Configuration
Pixel Pitch (mm)
Module Size (mm)
Module Resolution (WxH)
Module Composition (WxH)
Cabinet Dimension (WxHxD, mm)
Cabinet Resolution (WxH)
Cabinet Area (㎡)
Weight (kg/cabinet; kg/㎡)
Pixel Density (Point/㎡)
White Balance Full White 100% Brightness (nits)
Color Temperature (K)
H/V Viewing angle (°)
Max./Avg. Power Consumption (W/㎡)
Power Supply
Driving Mode
Operating/Storage Temperature (℃)
Operating/Storage Humidity (RH)

                                                                                VF1.8

                                                                                SMD

                                                                                1.86

                                                                                320x160x16.6

                                                                                172x86

                                                                                1x3

                                                                                320x480x55

                                                                                172x258

                                                                                0.1536

                                                                                2.6; 16.93

                                                                                288906

                                                                                ≥450

                                                                                3000~38000 Adjustable

                                                                                160/140

                                                                                370/125

                                                                                AC100~240V (50/60Hz)

                                                                                Common anode constant current PWM driver

                                                                                -10~40 / -20~60

                                                                                10~80% / 10~85% no condensation

                                                                                VF2.0

                                                                                SMD

                                                                                2.0

                                                                                320x160x16.6

                                                                                160x80

                                                                                1x3

                                                                                320x480x55

                                                                                160x240

                                                                                0.1536

                                                                                2.6; 16.93

                                                                                250000

                                                                                ≥450

                                                                                3000~15000 Adjustable

                                                                                160/140

                                                                                370/125

                                                                                AC100~240V (50/60Hz)

                                                                                Common anode constant current PWM driver

                                                                                -10~40 / -20~60

                                                                                10~80% / 10~85% no condensation

                                                                                VF2.5

                                                                                SMD

                                                                                2.5

                                                                                320x160x16.6

                                                                                128x64

                                                                                1x3

                                                                                320x480x55

                                                                                128x192

                                                                                0.1536

                                                                                2.6; 16.93

                                                                                160000

                                                                                ≥430

                                                                                3000~38000 Adjustable

                                                                                160/140

                                                                                240/80

                                                                                AC100~240V (50/60Hz)

                                                                                Common anode constant current PWM driver

                                                                                -10~40 / -20~60

                                                                                10~80% / 10~85% no condensation

Remark: Above data is subject to change without prior notice
