NCV Series Outdoor Fixed LED Display Cabinet

New Outdoor Fixed LED Display

NCV series is the latest generation of outdoor fixed cabinet. The advanced design creates an ultra-light, ultra-thin outdoor cabinet structure that provides front/rear maintenance, high brightness, wide viewing angle and IP65 protection. NCV series has a perfect modular structure, and the components are versatile and easy to replace, except for LED modules with different pixel pitch.

KEY FEATURES

> High Brightness > 3840Hz High Refresh Rate

> Wide Viewing Angle > Various Pitches

> IP65 Protection > Ultra-thin Cabinet

> -30~50 ℃ Operating Temperature > Ultra Light Weight Tile

> Front/Rear to Installation/Maintenance

Message

Product Highlights

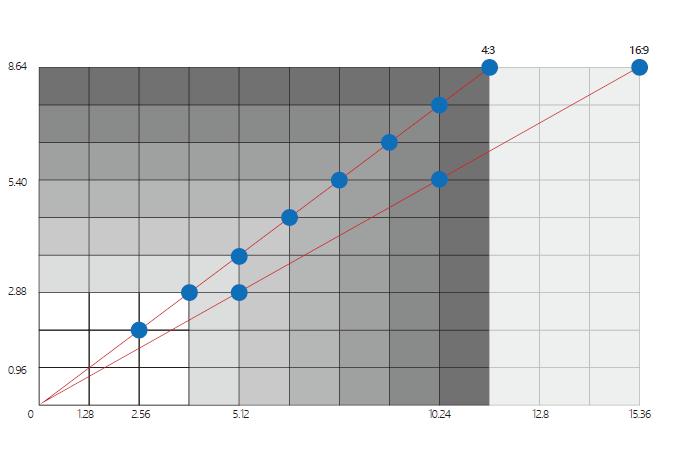

LED Video Wall Configuration

Screen Dimension (Unit: m)

High Brightness

Brightness can fully meet the needs of outdoor display, standard 6000 nits and high brightness 8000 nits optional.

Perfect Uniformity

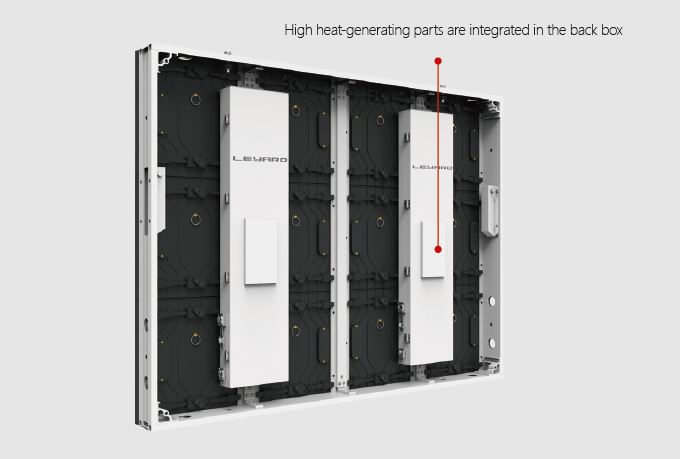

Power supply and main control components are connected to the lamp board in a floating design to avoid adverse effects. SMD LED configuration ensures good color uniformity at large viewing angles.

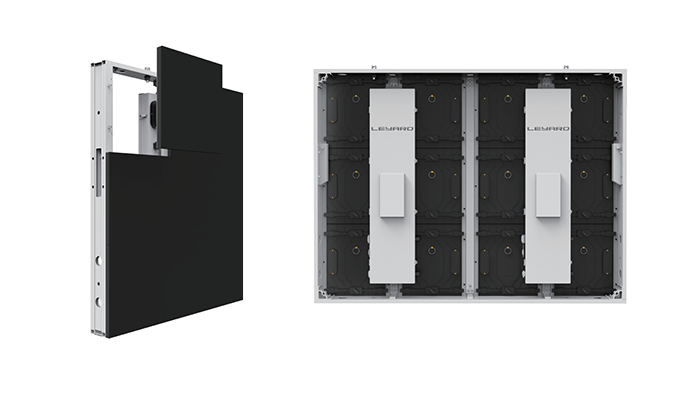

Front/Rear to Installation/Maintenance

> NCV cabinet is front and rear accessible, for easier maintenance.
> NCV cabinet is designed in a smart way that the mechanical structure supports both the front and rear installation.
> All electronic components could be disassembled from the front. The LED module is fixed to cabinet structure by mechanical locks, with a safety rings to eliminate any potential risks.

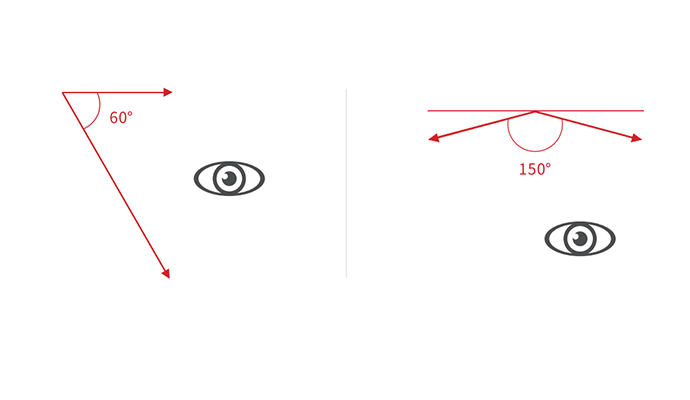

Wide Viewing Angle

60 degree vertical downward viewing angle and 150 degree horizontal viewing angle meet extreme viewing needs.

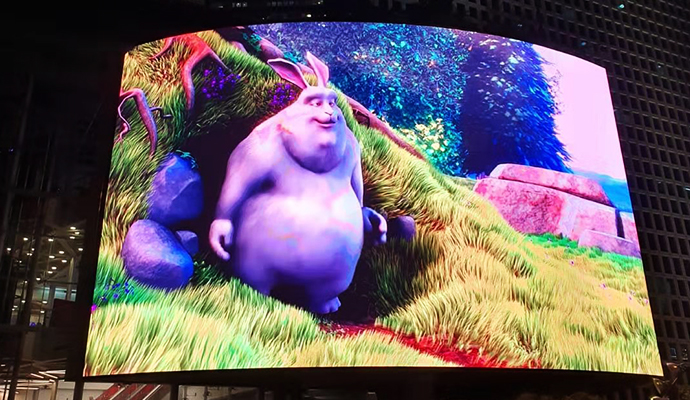

3840Hz High Refresh Rate

> Thanks to the very high refresh rate, the image is very stable under the cameras of the mobile phones.
> Barcode is readable by the mobile phones to enable a more efficient interactive advertisement.

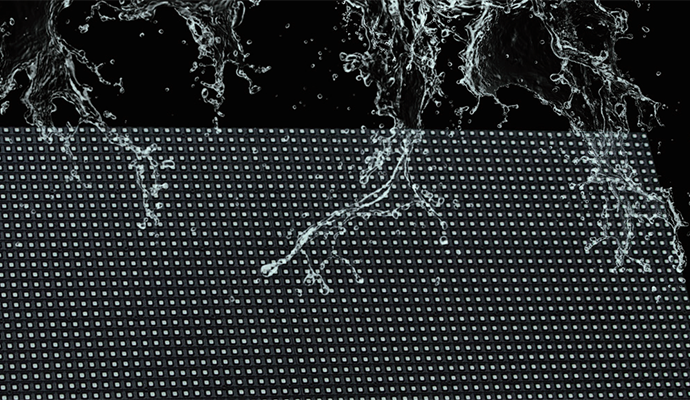

IP65 Protection

> IP65 Protection Level.
> Both front side and back side of the cabinet reach IP65 Protection level.
> Cabinets Can be installed and exposed to the open air, without extra enclosure.

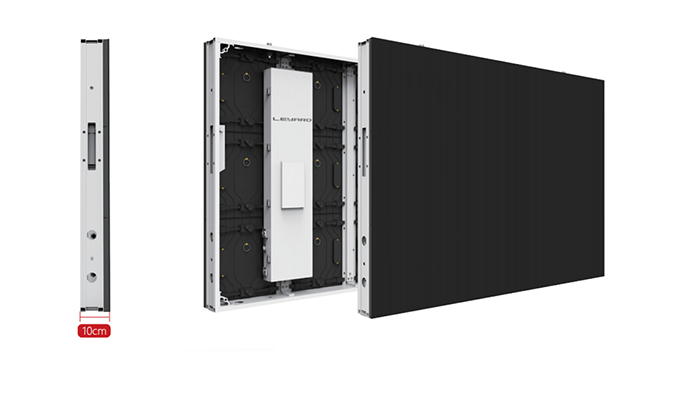

Ultra Light Weight Tile

> Ultra light cabinet -- less than 30Kg/㎡.
> When compared with traditional outdoor cabinet, NCV is about 20%-30% lighter, convenient for shipping and installation. The backsupport structure is also lighter, which is helpful to lower the overall cost.
> Cabinet thickness is only 10cm, ideal for different outdoor big LED screen applications.

Solution

Application

Commercial Street
Shopping Mall
Office Building

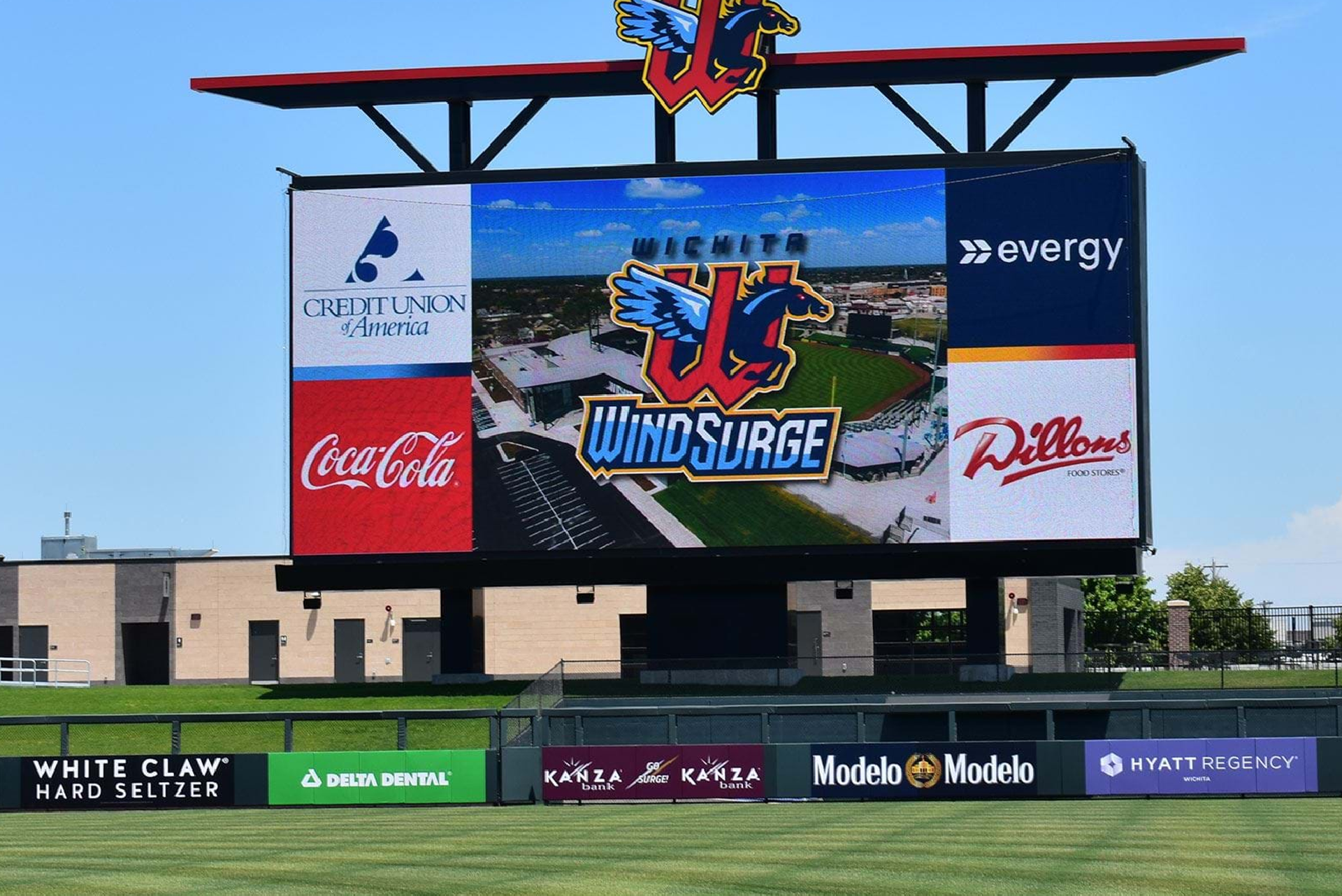

Sports Venue
Train Station
Pedestrian Street
Subway Station
Central Park

Specifications

NCV04S

NCV05S

NCV06S

NCV06S-HB

NCV08S

NCV08S-HB

NCV10S

NCV10S-HB

NCV10A

Item
Pixel Pitch
Module Resolution (WxH）
Module Dimension (WxH, mm)
Cabinet Resolution (WxH）
Cabinet Area (㎡)
Weight (kg/cabinet；kg/㎡)
IP Level (Front / Rear)
Brightness (nits)
Viewing angle (horiz ; vert) °
Power (max; avg)W/㎡
Maintenance
Operation/Storage Temp (℃)
Operation/Storage Humidity(RH)
Frame rate Processing (Hz)

                                                                                NCV04S

                                                                                4

                                                                                80x80

                                                                                320x320

                                                                                320x240

                                                                                1.2288

                                                                                36; 29

                                                                                IP65

                                                                                5500

                                                                                150; 110

                                                                                700; 215

                                                                                Front / Rear

                                                                                -30~50; -40~60

                                                                                10~90%; 10~80%

                                                                                50&60

                                                                                NCV05S

                                                                                5

                                                                                64x64

                                                                                320x320

                                                                                256x192

                                                                                1.2288

                                                                                36; 29

                                                                                IP65

                                                                                6000

                                                                                150; 110

                                                                                650; 215

                                                                                Front / Rear

                                                                                -30~50; -40~60

                                                                                10~90%; 10~80%

                                                                                50&60

                                                                                NCV06S

                                                                                6.67

                                                                                48x48

                                                                                320x320

                                                                                192x144

                                                                                1.2288

                                                                                36; 29

                                                                                IP65

                                                                                6000

                                                                                150; 110

                                                                                610; 200

                                                                                Front / Rear

                                                                                -30~50; -40~60

                                                                                10~90%; 10~80%

                                                                                50&60

                                                                                NCV06S-HB

                                                                                6.67

                                                                                48x48

                                                                                320x320

                                                                                192x144

                                                                                1.2288

                                                                                36; 29

                                                                                IP65

                                                                                8000

                                                                                150; 110

                                                                                610; 200

                                                                                Front / Rear

                                                                                -30~50; -40~60

                                                                                10~90%; 10~80%

                                                                                50&60

                                                                                NCV08S

                                                                                8

                                                                                40x40

                                                                                320x320

                                                                                160x120

                                                                                1.2288

                                                                                36; 29

                                                                                IP65

                                                                                6000

                                                                                150; 110

                                                                                610; 200

                                                                                Front / Rear

                                                                                -30~50; -40~60

                                                                                10~90%; 10~80%

                                                                                50&60

                                                                                NCV08S-HB

                                                                                8

                                                                                40x40

                                                                                320x320

                                                                                160x120

                                                                                1.2288

                                                                                36; 29

                                                                                IP65

                                                                                8000

                                                                                150; 110

                                                                                610; 200

                                                                                Front / Rear

                                                                                -30~50; -40~60

                                                                                10~90%; 10~80%

                                                                                50&60

                                                                                NCV10S

                                                                                10

                                                                                32x32

                                                                                320x320

                                                                                128x96

                                                                                1.2288

                                                                                36; 29

                                                                                IP65

                                                                                6000

                                                                                150; 110

                                                                                610; 200

                                                                                Front / Rear

                                                                                -30~50; -40~60

                                                                                10~90%; 10~80%

                                                                                50&60

                                                                                NCV10S-HB

                                                                                10

                                                                                32x32

                                                                                320x320

                                                                                128x96

                                                                                1.2288

                                                                                36; 29

                                                                                IP65

                                                                                8000

                                                                                150; 110

                                                                                610; 200

                                                                                Front / Rear

                                                                                -30~50; -40~60

                                                                                10~90%; 10~80%

                                                                                50&60

                                                                                NCV10A

                                                                                10

                                                                                32x32

                                                                                320x320

                                                                                128x96

                                                                                1.2288

                                                                                43; 35

                                                                                IP65

                                                                                10000

                                                                                100; 40

                                                                                430; 142

                                                                                Front / Rear

                                                                                -30~50; -40~60

                                                                                10~90%; 10~80%

                                                                                50&60

Remark: Above data is subject to change without prior notice
