MA Series

Indoor LED Display Cabinet

320x180mm Wholesale LED Display Module

PRO FEATURES

- Exclusive receiving card

- Adopts high density connector interface, dustproof, shockproof and high stability

- Support color management, 14bit+, color correction

- RGB independent Gamma adjustment, 3D and other functions

Message

Product Highlights

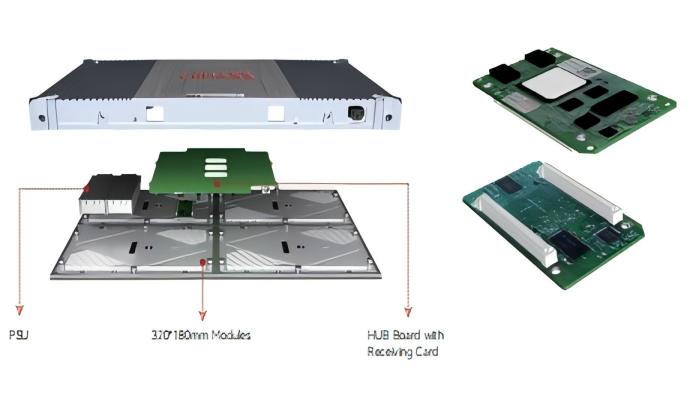

Original Design

Aadopts high density connector interface for communication.
Support color management, 14bit+, color correction.

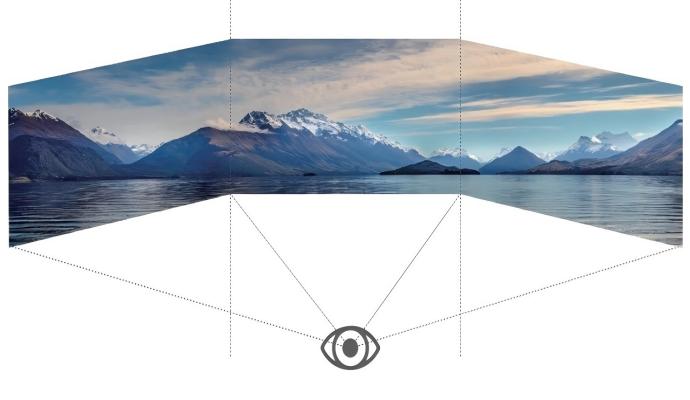

Wide Viewing Angle

Wide viewing angle ensures consistency and uniformity of brightness and color from any viewing distance or angle.

Solution

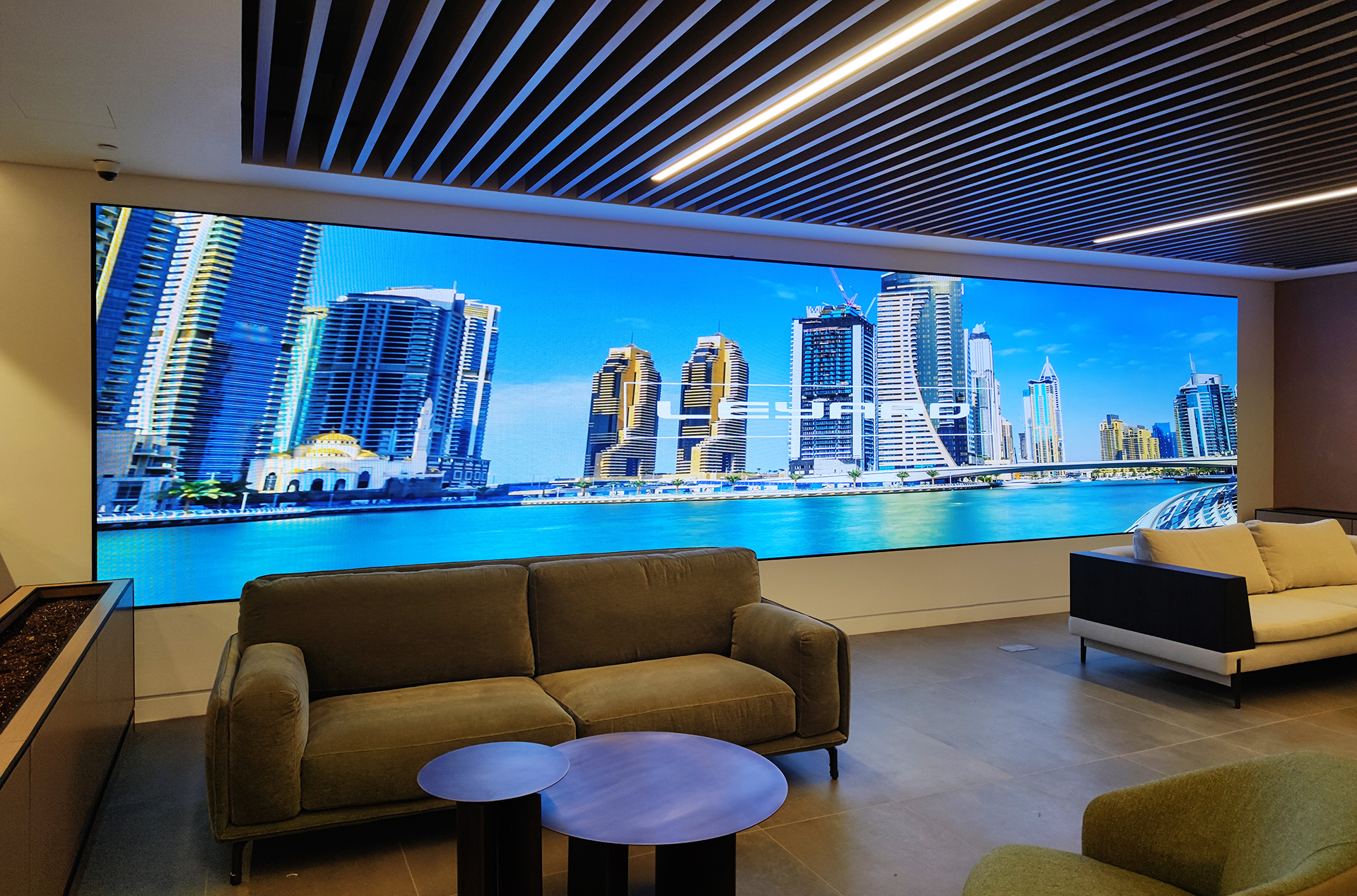

Leyard MA series indoor fine-pitch displays are designed to elevate visual performance and user experience in demanding environments such as control rooms, broadcast studios, and high-end retail spaces. These displays support advanced color management features, including 14bit+ color correction and RGB independent Gamma adjustment, ensuring precise and vibrant color reproduction. The inclusion of 3D functionality further enhances the depth and realism of the visuals, making content more engaging. With these capabilities, the MA series is an ideal choice for applications that require superior image quality and a seamless viewing experience, ensuring that every detail is displayed with clarity and accuracy.

Application

Conference Centre

Control Centre

Broadcast

Meeting Room

Exhibition Centre

Shopping Mall

Specifications

MA1

MA1.2

MA1.5

MA1.6

MA1.8

MA2

MA2.5

Item
Pitch (mm)
Module Resolution (WxH)
Cabinet Size (mm) (WxHxD）
Cabinet Area (㎡)
Weight (kg/cabinet)
White Balance Brightness (nits)
Color Temp (k)
Contrast Ratio
Peak Power Consumption (W/㎡）
Avg Power Consumption(W/㎡）
Refresh Rate (Hz)
Operation Temp (℃)
Storage Temp (℃)
Operation Humidity Range（RH）
Storage Humidity Range（RH）

                                                                                MA1

                                                                                1

                                                                                2x2

                                                                                640x360x55

                                                                                0.2304

                                                                                7.5±0.1

                                                                                ≥500

                                                                                3000~38000 Adjustable

                                                                                5000:1

                                                                                ≤438

                                                                                ≤146

                                                                                ≥3840

                                                                                -10~40

                                                                                -20~60

                                                                                10~80% Non-condensing

                                                                                10~85% Non-condensing

                                                                                MA1.2

                                                                                1.25

                                                                                2x2

                                                                                640x360x55

                                                                                0.2304

                                                                                7.5±0.1

                                                                                ≥500

                                                                                3000~38000 Adjustable

                                                                                5000:1

                                                                                ≤438

                                                                                ≤146

                                                                                ≥3840

                                                                                -10~40

                                                                                -20~60

                                                                                10~80% Non-condensing

                                                                                10~85% Non-condensing

                                                                                MA1.5

                                                                                1.538/1.551

                                                                                2x2

                                                                                640x360x55

                                                                                0.2304

                                                                                7.5±0.1

                                                                                ≥450

                                                                                3000~38000 Adjustable

                                                                                5000:1

                                                                                ≤438

                                                                                ≤146

                                                                                ≥3840

                                                                                -10~40

                                                                                -20~60

                                                                                10~80% Non-condensing

                                                                                10~85% Non-condensing

                                                                                MA1.6

                                                                                1.667

                                                                                2x2

                                                                                640x360x55

                                                                                0.2304

                                                                                7.5±0.1

                                                                                ≥450

                                                                                3000~38000 Adjustable

                                                                                5000:1

                                                                                ≤438

                                                                                ≤146

                                                                                ≥3840

                                                                                -10~40

                                                                                -20~60

                                                                                10~80% Non-condensing

                                                                                10~85% Non-condensing

                                                                                MA1.8

                                                                                1.86/1.875

                                                                                2x2

                                                                                640x360x55

                                                                                0.2304

                                                                                7.5±0.1

                                                                                ≥450

                                                                                3000~38000 Adjustable

                                                                                5000:1

                                                                                ≤438

                                                                                ≤146

                                                                                ≥3840

                                                                                -10~40

                                                                                -20~60

                                                                                10~80% Non-condensing

                                                                                10~85% Non-condensing

                                                                                MA2

                                                                                2

                                                                                2x2

                                                                                640x360x55

                                                                                0.2304

                                                                                7.5±0.1

                                                                                ≥450

                                                                                3000~38000 Adjustable

                                                                                5000:1

                                                                                ≤438

                                                                                ≤146

                                                                                ≥3840

                                                                                -10~40

                                                                                -20~60

                                                                                10~80% Non-condensing

                                                                                10~85% Non-condensing

                                                                                MA2.5

                                                                                2.5

                                                                                2x2

                                                                                640x360x55

                                                                                0.2304

                                                                                7.5±0.1

                                                                                500-550

                                                                                3000~38000 Adjustable

                                                                                5000:1

                                                                                ≤438

                                                                                ≤146

                                                                                ≥3840

                                                                                -10~40

                                                                                -20~60

                                                                                10~80% Non-condensing

                                                                                10~85% Non-condensing

Remark: Above data is subject to change without prior notice
