MiniBox Series Ultra-thin Fine Pitch LED Display Module

ULTRA-THIN FINE PITCH LED DISPLAY MODULE

MiniBox Series LED module (aluminum shell structure design) has 4K display effect, equipped with AI storage chip and intelligent color temperature adjustment. It supports various installation methods and can be used to build gaint HDR/Active 3D LED screen.

KEY FEATURES

Aluminum frame and thermal conductive adhesive for better heat dissipation
Snap-on back cover, removable without tools
Ultra-thin but strong and non-deformable module
Excellent module flatness
Data group storage on board, automatic read back the calibration data
Support HDR/Active 3D/MOB optical film protection
Pixel-by-pixel brightness correction, by adjusting the single LED current to guaranty brightness consistency

Message

Product Highlights

New Design

Aluminum frame and thermal conductive adhesive for better heat dissipation

New Design

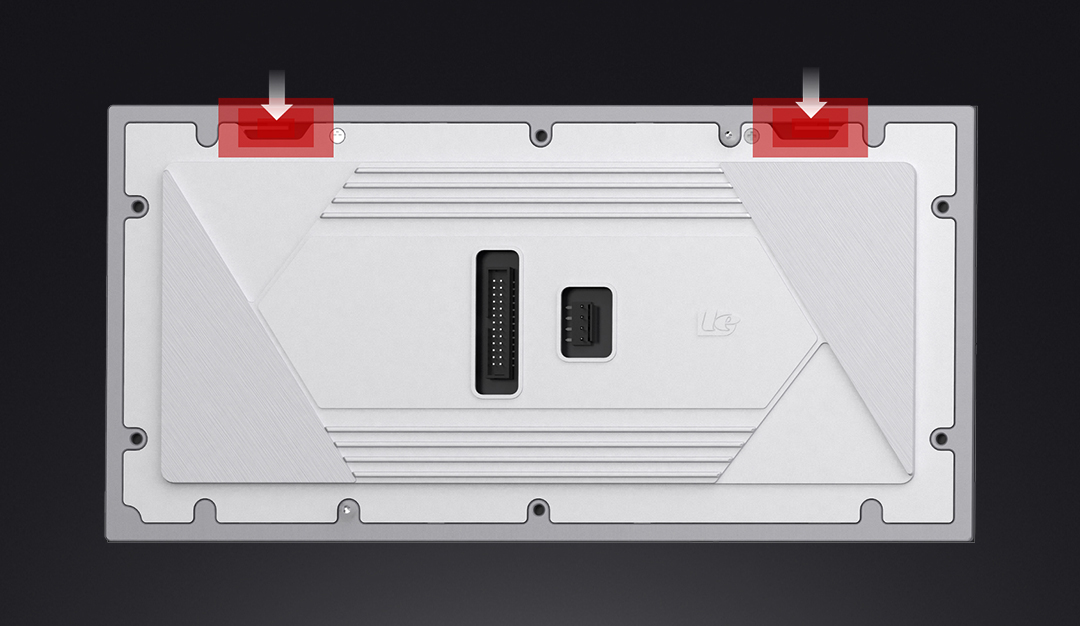

Snap-on back cover, removable without tools

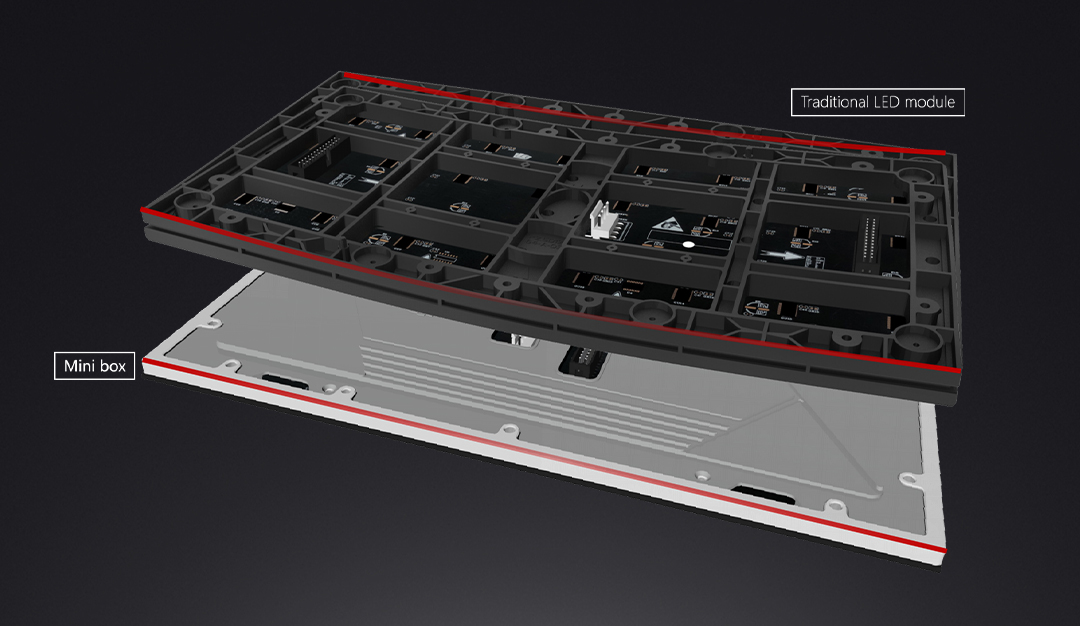

Strong and Non-deformable

After high strength extrusion and long time aging, the minibox series remains super flat, while the traditional series is deformed.

Ultra-thin LED module

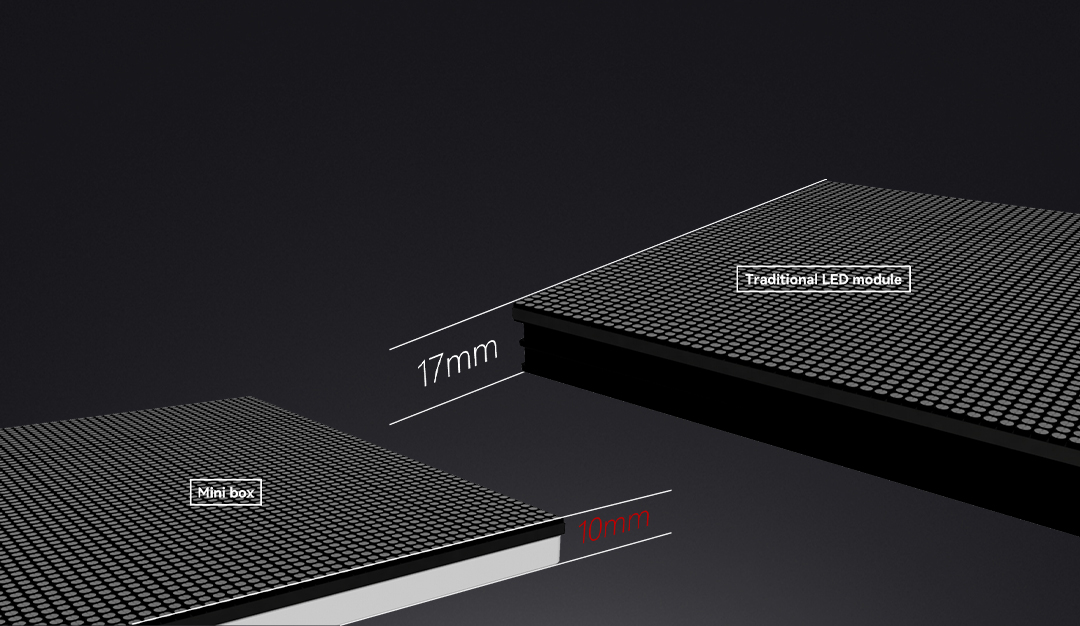

The main body is only 10mm in depth, and the thickness is 13mm including the position pin.

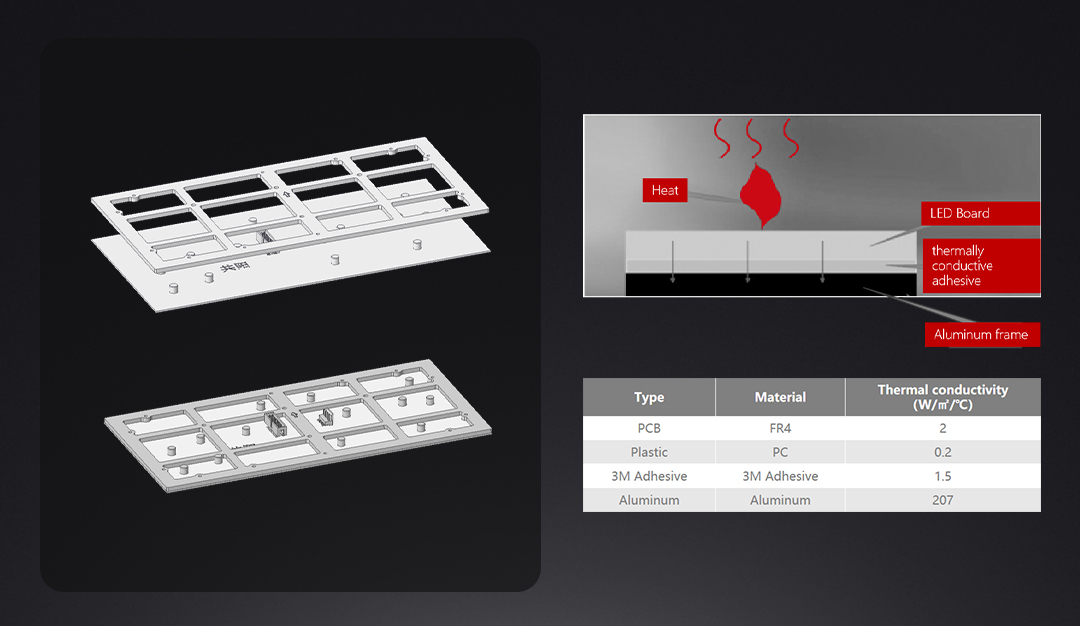

Aluminum Frame for Better Heat Dissipation

Thermally conductive double-sided adhesive:
> Good thermal conductivity, insulation and viscosity
> Good flame retardancy, V0 level

Support 3D/HDR Display

Compared with ordinary images, MiniBox Series can provide more dynamic range and image details. According to LDR (Low-Dynamic Range) images with different exposure times. And use the best details of the LDR image corresponding to each exposure time to synthesize the final HDR image, which can better reflect the visual effect in the real environment.

MOB Optical Film Application

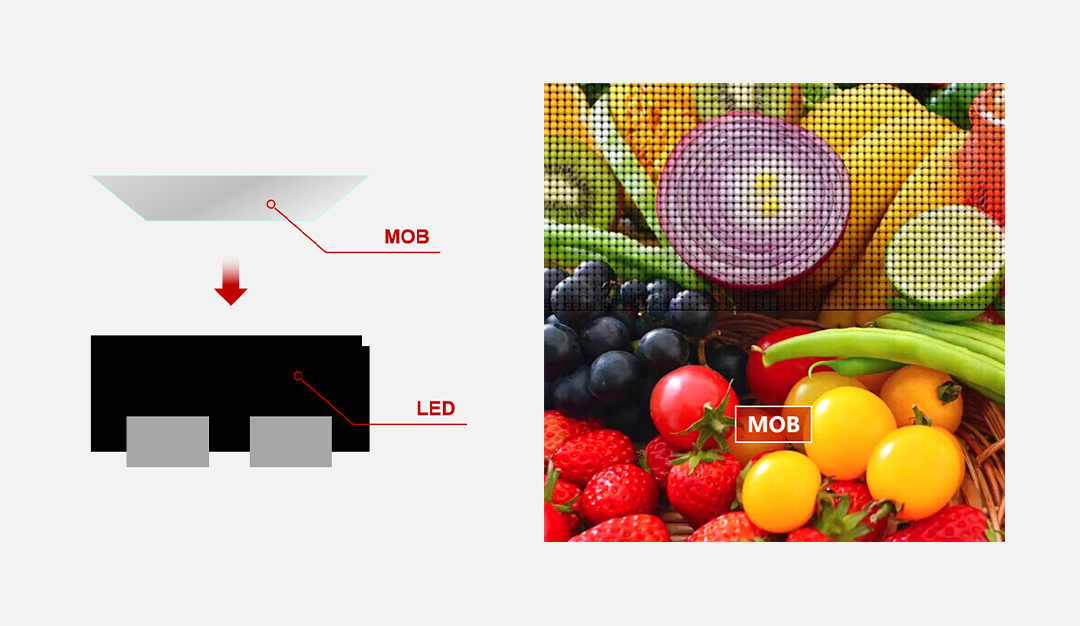

The application of MOB optical film greatly improves the viewing angle and the display effect.

Installation Without Cabinet

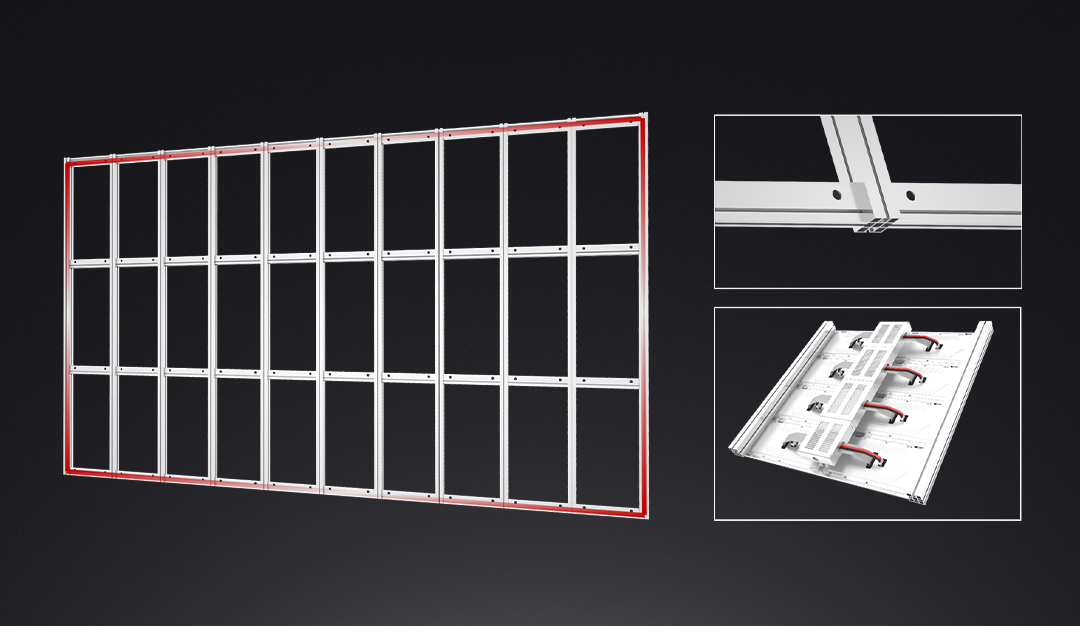

The back side is adsorbed on the steel structure, build a large screen is convenient and quick. Using magnetic maintenance, simple and easy to operate.

Solution

Application

Commercial Halls

Shopping Malls

Retails & Store

Museum Centre

Meeting Room

Exhibition Centre

Specifications

LCH1Ⅱ

LCH1.2Ⅱ

LCH1.5Ⅱ

LCH1.8Ⅱ

LCH2Ⅱ

LCH2.5Ⅱ

LCH1Ⅱ Plus

LCH1.2Ⅱ Plus

LCH1.5Ⅱ Plus

LCH1.8Ⅱ Plus

LCH2Ⅱ Plus

LCH2.5Ⅱ Plus

Item
Pitch (mm)
Module Resolution (WxH)
Module Size (mm)(WxH)
Module Weight(Kg)
Pixel Density
Max/Avg. Power Consumption (W/ ㎡)
Refresh Rate(Hz)
Operation/Storage Temperature (℃ )
Operation Humidity (RH)
Storage Humidity (RH)

                                                                                LCH1Ⅱ

                                                                                1

                                                                                320x160

                                                                                320x160

                                                                                0.57±0.05

                                                                                1,000,000

                                                                                ≤430/≤144

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH1.2Ⅱ

                                                                                1.25

                                                                                256x128

                                                                                320x160

                                                                                0.57±0.05

                                                                                640,000

                                                                                ≤430/≤144

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH1.5Ⅱ

                                                                                1.53

                                                                                208x104

                                                                                320x160

                                                                                0.57±0.05

                                                                                422,500

                                                                                ≤345/≤115

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH1.8Ⅱ

                                                                                1.86

                                                                                172x86

                                                                                320x160

                                                                                0.57±0.05

                                                                                288,906

                                                                                ≤345/≤115

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH2Ⅱ

                                                                                2

                                                                                160x80

                                                                                320x160

                                                                                0.57±0.05

                                                                                250,000

                                                                                ≤345/≤115

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH2.5Ⅱ

                                                                                2.5

                                                                                128x64

                                                                                320x160

                                                                                0.57±0.05

                                                                                160,000

                                                                                ≤390/≤130

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH1Ⅱ Plus

                                                                                1

                                                                                320x180

                                                                                320x180

                                                                                0.65±0.05

                                                                                1,000,000

                                                                                ≤429/≤143

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH1.2Ⅱ Plus

                                                                                1.25

                                                                                256x144

                                                                                320x180

                                                                                0.65±0.05

                                                                                640,000

                                                                                ≤429/≤143

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH1.5Ⅱ Plus

                                                                                H:1.538 / V:1.551

                                                                                208x116

                                                                                320x180

                                                                                0.65±0.05

                                                                                418,889

                                                                                ≤345/≤115

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH1.8Ⅱ Plus

                                                                                H:1.86 / V:1.875

                                                                                172x96

                                                                                320x180

                                                                                0.65±0.05

                                                                                286,667

                                                                                ≤345/≤115

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH2Ⅱ Plus

                                                                                2

                                                                                160x90

                                                                                320x180

                                                                                0.65±0.05

                                                                                250,000

                                                                                ≤345/≤115

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

                                                                                LCH2.5Ⅱ Plus

                                                                                2.5

                                                                                128x72

                                                                                320x180

                                                                                0.65±0.05

                                                                                160,000

                                                                                ≤383/≤128

                                                                                ≥4800

                                                                                -10~40 / -20~60

                                                                                10~80% no condensation

                                                                                10~85% no condensation

Remark: Above data is subject to change without prior notice
