Dual-Redundant Reliability for Critical Environments

The Leyard LND Series features dual-card and dual-power supply redundancy for

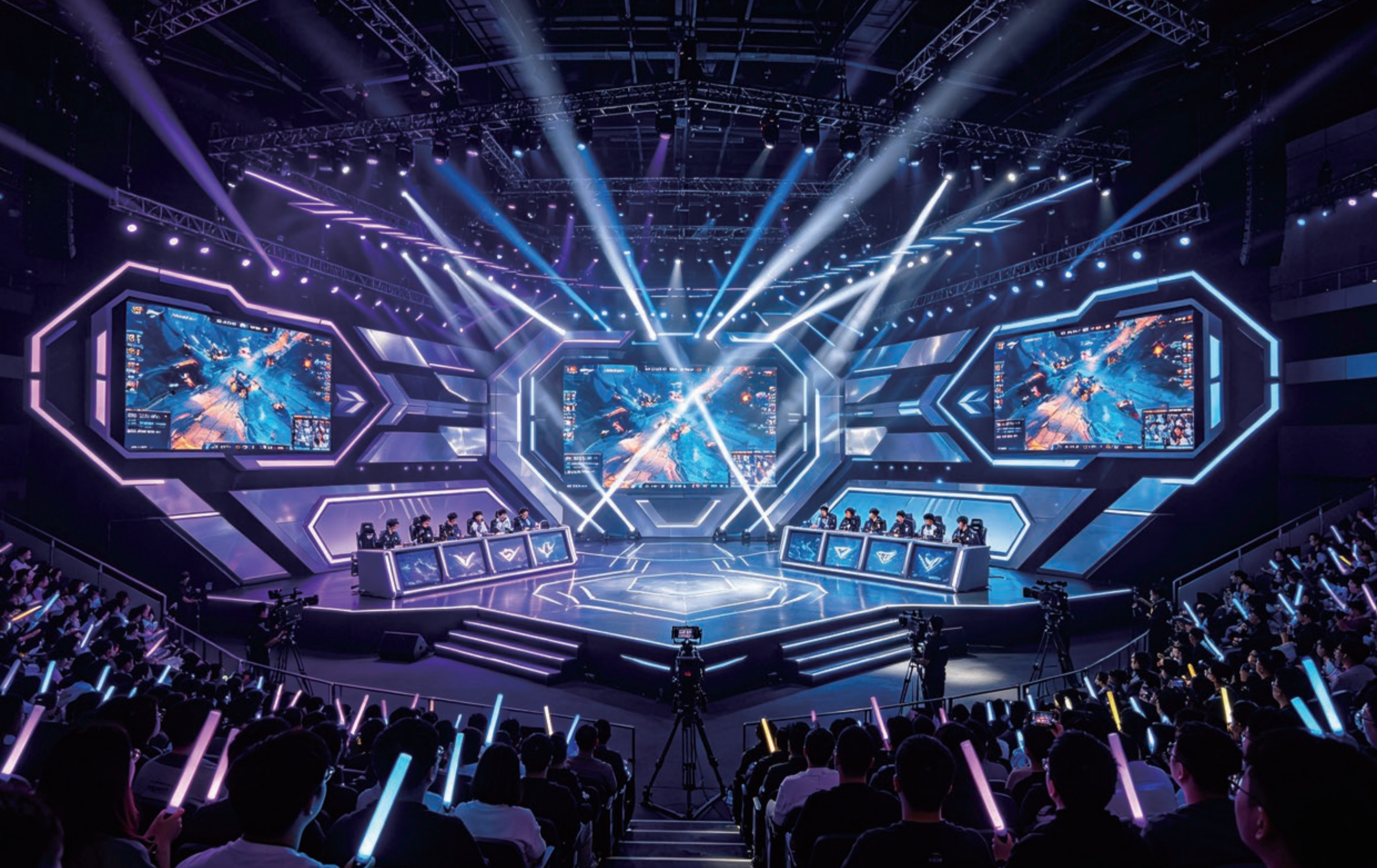

exceptional reliability. It is widely used in mission-critical environments including live

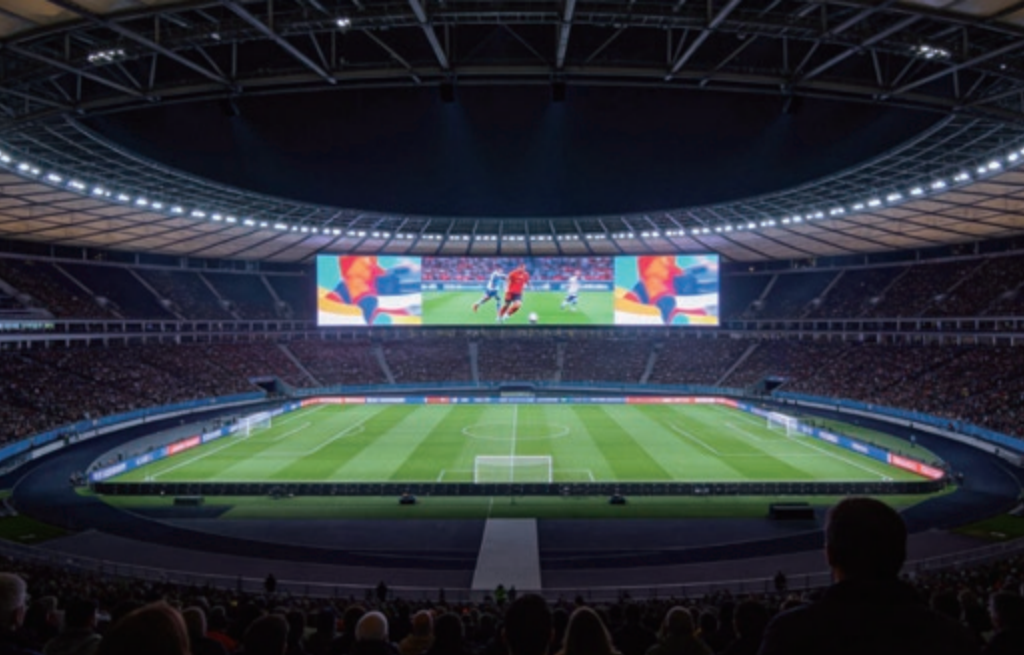

events, esports competitions, sports venues, command centers, high-end conference
rooms, auditoriums and concerts. Offering multiple pixel pitches with dual receiving
cards and dual power backup, the series meets high standards for both indoor and
outdoor applications.

Redundant Design

> Dual-Card Backup: During normal power-on operation, the main card outputs video signals while the backup card remains idle. In the event of a main card failure, the backup card takes over video output with nanosecond-level delay, enabling seamless switching.

> Dual-Power Backup: Supports overcurrent protection, short-circuit protection, PFC, current sharing and other functions.

Message

Product Highlights

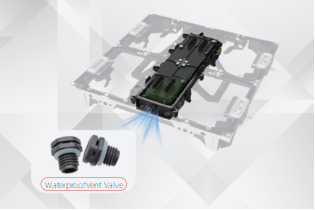

Waterproof Ventilation Design

· One-Way Airflow, Out Only
ePTFE membrane enables one-way hot air expulsion while blocking liquid
water ingress; IP67 rated.
· Condensation Elimination, Extended Lifespan
Expels hot, humid air to prevent short circuits and corrosion. Extends
lifespan of power supplies, PCBs, and critical components.

100% Front/Rear Maintenance

The entire LND series supports both full front and rear maintenance.
All modules feature a magnetic design, enabling seamless screen
splicing.
Dedicated maintenance tools allow quick module replacement from
the front, significantly saving labor and time costs.

High Protection IP67

LND series outdoor model adopts advanced waterproof technology
and cooperates with the rubber gasket to perfectly achieve waterproof
and dustproof effect.

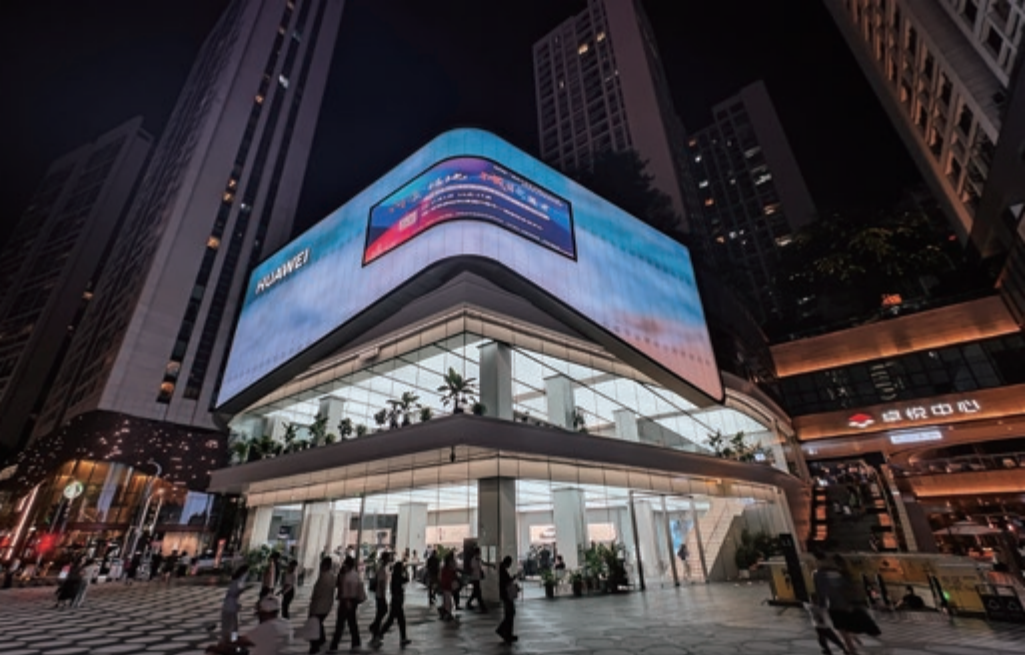

Can be used in a variety of outdoor occasions, IP67 to achieve full protection.

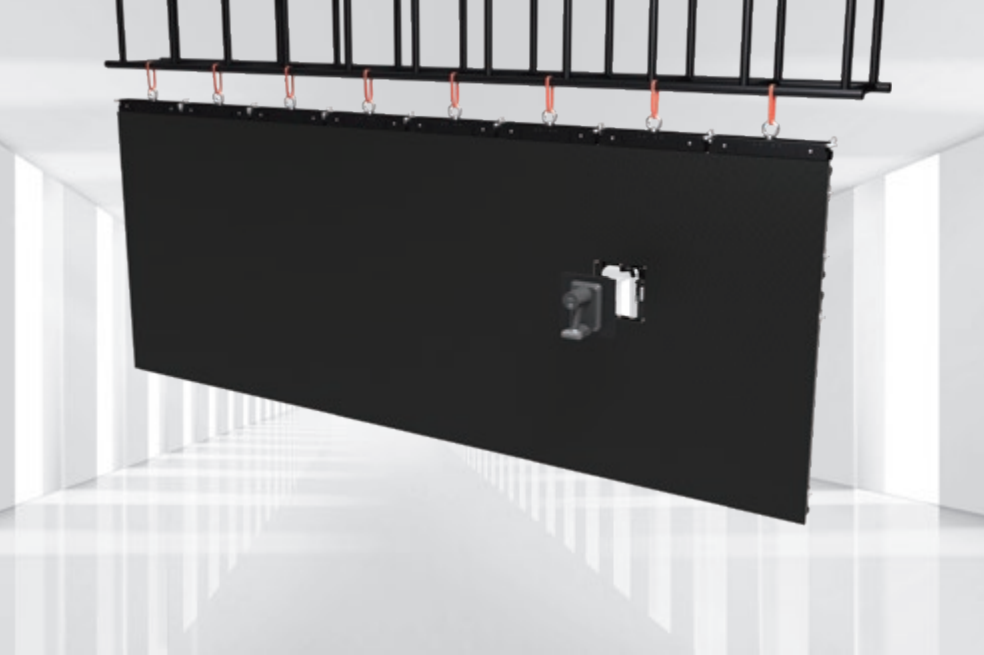

Mixed Installation

The LND series supports free mixing and splicing with LN-R/LN-C/LN-AR.

Solution

Seamless Continuity for High-Stakes Visuals

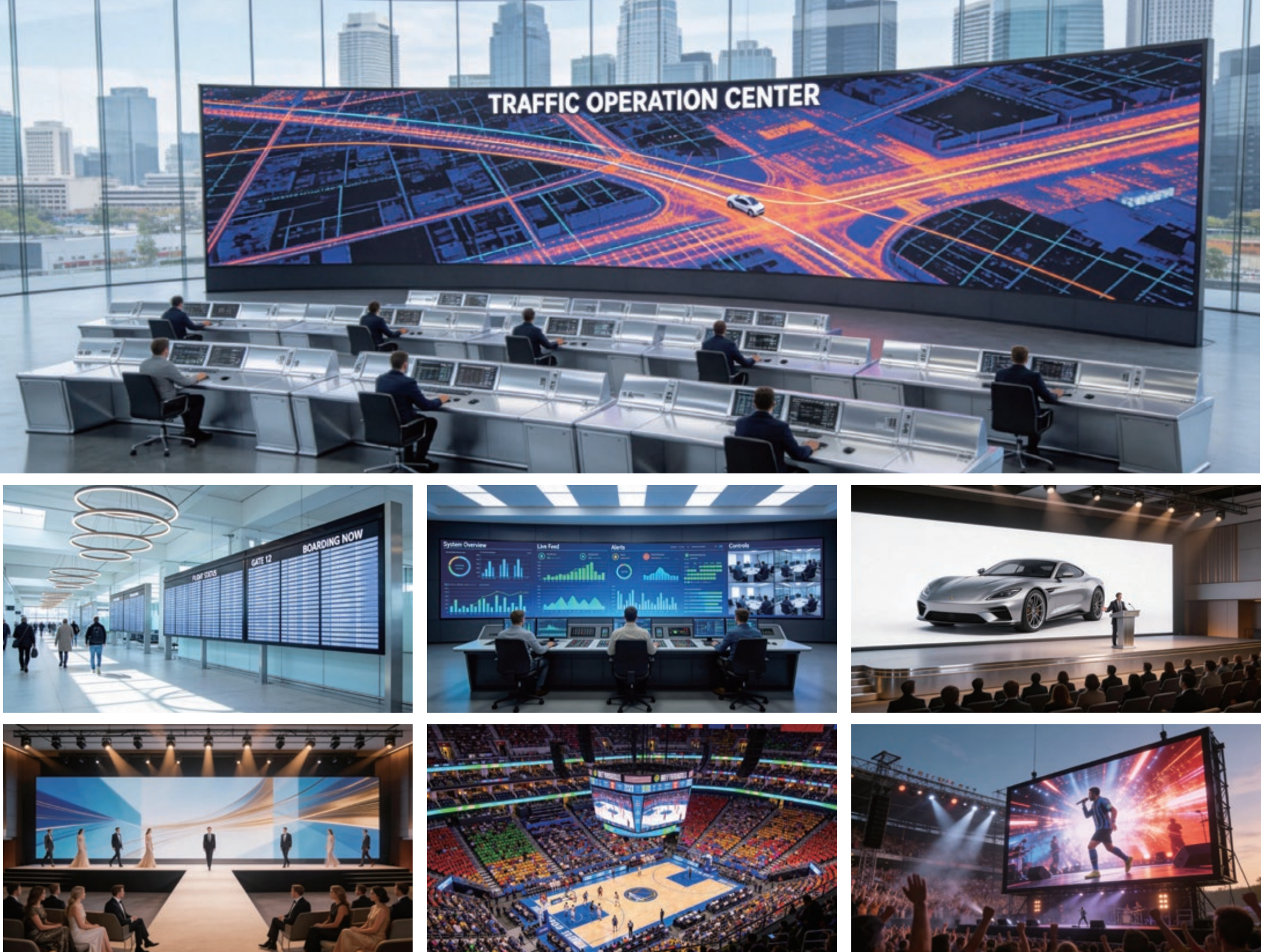

Application

Power Box Cover Leyard LND Series is purpose-built for environments where uptime is non-negotiable. Dual receiving cards and dual power supply redundancy ensure seamless failover, eliminating single points of failure. Typical deployments include command centers, high-stakes conference rooms, auditoriums, live productions, sports stadiums, and outdoor signage. With multiple pixel pitch options, the series delivers consistent, reliable performance across both indoor and outdoor installations, meeting rigorous commercial standards.

Specifications

LND1.9

LND2.6

LND2.9

LND3.9

LND1.5S

LND1.9S

LND2.9S

LND3.9S

LND4.8S

Parameter
LED Package
Pixel Pitch (mm)
Module Resolution
Module Size (mm)
Cabinet Resolution
Pixel Density (Pixels/㎡)
Cabinet Dimension (WxHxD)mm
Cabinet Material
Colour Temperature, Adjustable (K)
AC Operation Voltage
Refresh Rate (Hz)

                                                                                LND1.9

                                                                                SMD1515

                                                                                1.95

                                                                                128x128

                                                                                250x250

                                                                                256x256

                                                                                262,144

                                                                                500x500x79

                                                                                Aluminium alloy

                                                                                3000~10000

                                                                                AC100~240V（50/60Hz）

                                                                                ≥3840

                                                                                LND2.6

                                                                                SMD1515

                                                                                2.60

                                                                                96x96

                                                                                250x250

                                                                                192x192

                                                                                147,456

                                                                                500x500x79

                                                                                Aluminium alloy

                                                                                3000~10000

                                                                                AC100~240V（50/60Hz）

                                                                                ≥7680

                                                                                LND2.9

                                                                                SMD2121

                                                                                2.97

                                                                                84x84

                                                                                250x250

                                                                                168x168

                                                                                112,896

                                                                                500x500x79

                                                                                Aluminium alloy

                                                                                3000~10000

                                                                                AC100~240V（50/60Hz）

                                                                                ≥7680

                                                                                LND3.9

                                                                                SMD2121

                                                                                3.90

                                                                                64x64

                                                                                250x250

                                                                                128x128

                                                                                65,536

                                                                                500x500x79

                                                                                Aluminium alloy

                                                                                3000~10000

                                                                                AC100~240V（50/60Hz）

                                                                                ≥7680

                                                                                LND1.5S

                                                                                MIP1010

                                                                                1.56

                                                                                160x160

                                                                                250x250

                                                                                320x320

                                                                                409,600

                                                                                500x500x74

                                                                                Aluminium alloy

                                                                                3000~10000

                                                                                AC100~240V（50/60Hz）

                                                                                ≥7680

                                                                                LND1.9S

                                                                                MIP1010

                                                                                1.95

                                                                                128x128

                                                                                250x250

                                                                                256x256

                                                                                262,144

                                                                                500x500x74

                                                                                Aluminium alloy

                                                                                3000~10000

                                                                                AC100~240V（50/60Hz）

                                                                                ≥7680

                                                                                LND2.9S

                                                                                SMD1515

                                                                                2.97

                                                                                84x84

                                                                                250x250

                                                                                168x168

                                                                                112,896

                                                                                500x500x79

                                                                                Aluminium alloy

                                                                                3000~10000

                                                                                AC100~240V（50/60Hz）

                                                                                ≥7680

                                                                                LND3.9S

                                                                                SMD1921

                                                                                3.90

                                                                                64x64

                                                                                250x250

                                                                                128x128

                                                                                65,536

                                                                                500x500x79

                                                                                Aluminium alloy

                                                                                3000~10000

                                                                                AC100~240V（50/60Hz）

                                                                                ≥7680

                                                                                LND4.8S

                                                                                SMD1921

                                                                                4.80

                                                                                52x52

                                                                                250x250

                                                                                104x104

                                                                                43,264

                                                                                500x500x79

                                                                                Aluminium alloy

                                                                                3000~10000

                                                                                AC100~240V（50/60Hz）

                                                                                ≥7680

Remark: Above data is subject to change without prior notice
